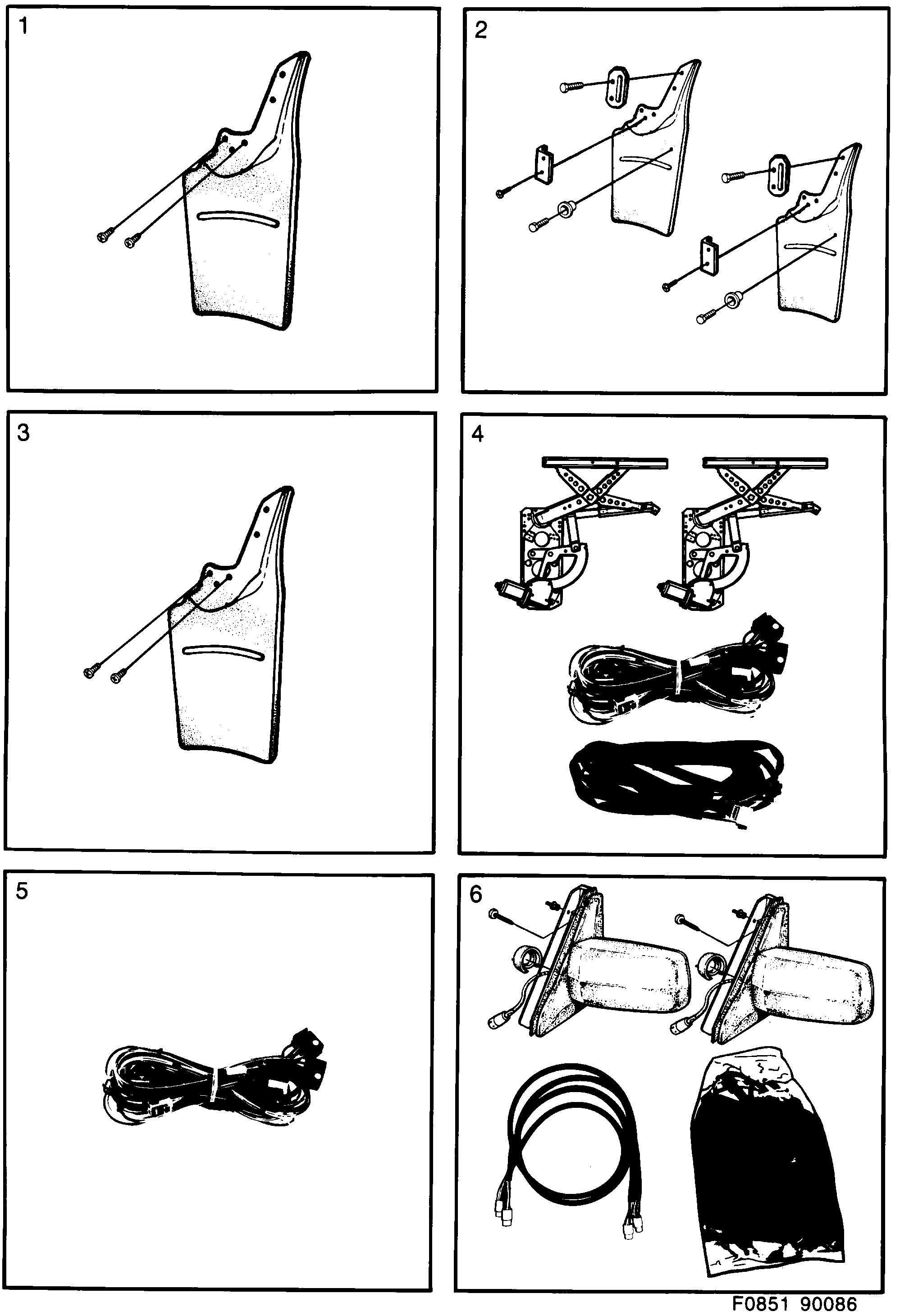

Group 8a Car body, external, section 1780
| Pos | Article | Part No. |
|---|---|---|
| 1 | Baffle | 7874746 |
| Baffle | 6937593 | |
| Screw | 7922982 | |
| 1 | Baffle | 7874753 |
| Baffle | 6937585 | |
| 1 | Baffle | 7874761 |
| Baffle | 6937478 | |
| 1 | Baffle | 7874779 |
| Baffle | 6937486 | |
| 2 | Baffle | 7874340 |
| Baffle | 9290933 | |
| Baffle | 9290941 | |
| Attaching plate | 9222613 | |
| Support plate | 8227738 | |
| 3 | Baffle | 7873995 |
| 3 | Baffle | 7874001 |
| 4 | Window regulator | 8547192 |
| Window regulator | 9287038 | |
| Window regulator | 9287046 | |
| Cable harness | 8547184 | |
| Cable harness | 8547044 | |
| Protecting bushing | 7326093 | |
| Clip | 7933443 | |
| Tie strap | 11900513 (replaces 7971880) | |
| Screw | 7972441 | |
| Switch | 9501859 | |
| Switch | 30526039 (replaces 9512310) | |
| Cover washer | 9501891 | |
| Frame | 9501917 | |
| Cable terminal | 8503286 | |
| Cable joint | 8521668 | |
| Cover washer | 8817884 | |
| Clip | 8817892 | |
| Relay | 30526059 (replaces 9512823) | |
| Screw | 7973704 | |
| 4 | Window lift kit | 8547218 |
| Cable harness | 8547176 | |
| Bellows | 8574824 | |
| 4 | Window regulator | 8547200 |
| Window regulator | 9223694 | |
| Window regulator | 9223702 | |
| 4 | Window lift kit | 8547226 |
| 4 | Window lift kit | 8547242 |
| Switch | 9501867 | |
| Switch | 9501875 | |
| Window regulator | 9289356 | |
| Window regulator | 9289364 | |
| Motor | 8567638 | |
| Motor | 8567646 | |
| Switch | 9501909 | |
| Cable harness | 8591497 | |
| Cable harness | 8591489 | |
| Connector housing | 9503525 | |
| 5 | Additional kit | 8547234 |
| Cable harness | 8547069 | |
| 6 | Rear view mirror kit | 8546970 |
| Rear view mirror | 9833203 | |
| Rear view mirror | 9833211 | |
| Cover | 9472424 | |
| Cover | 9472432 | |
| Plastic rivet | 9255845 | |
| Switch | 8531204 | |
| Bracket | 8541856 | |
| Nut | 8528358 | |
| Button | 8579492 | |
| Cable harness | 8547283 | |
| Cable harness | 8547275 | |
| Cover washer | 8531212 | |
| Connector housing | 9503442 | |
| Connector housing | 9503434 | |
| Nut | 8074098 | |
| Cable terminal | 8522534 | |
| Screw | 92151805 (replaces 8059230) | |
| 6 | Rear view mirror kit | 8546962 |
| Rear view mirror | 9833245 | |
| Rear view mirror | 9837196 | |
| Clip | 9468893 |
