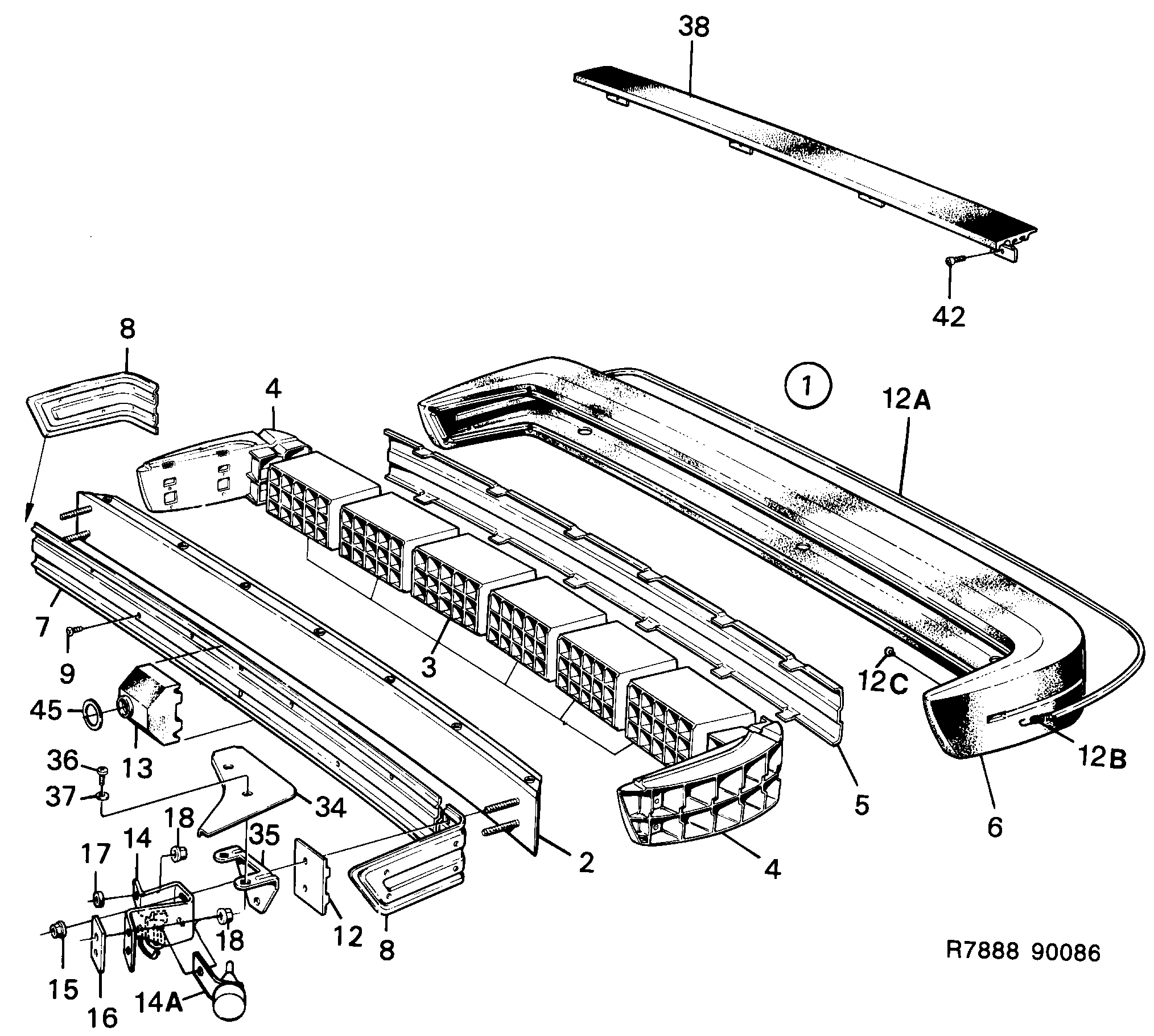

Group 8a Car body, external, section 1570
| Pos | Article | Part No. |
|---|---|---|
| 1 | Bumper | 9284753 |
| 2 | Rail | 9226713 |
| 3 | Cell section | 9224676 |
| 4 | Cell section | 9283573 |
| 4 | Cell section | 9292269 |
| 5 | Rail | 8258212 |
| 6 | Protection | 9237173 |
| 7 | Attaching rail | 8247553 |
| 8 | Attaching rail | 8249310 |
| 8 | Attaching rail | 8249328 |
| 9 | Screw | 7922420 |
| 12 | Spacer | 9288515 |
| 12A | Decor strip | 9282773 |
| 12A | Decor strip | 8283871 |
| 12A | Decor strip | 9291923 |
| 12B | Spring | 9292228 |
| 12C | Rivet | 7973308 |
| 13 | Buffer | 8248049 |
| 13 | Buffer | 9228347 |
| 14 | Bracket | 8248015 |
| 14 | Bracket | 8248023 |
| 14 | Bracket | 9223298 |
| 14 | Bracket | 6928576 |
| 14 | Bracket | 9223306 |
| 14 | Bracket | 6937015 |
| 14A | Buffer | 6912810 |
| 15 | Nut | 11900429 (replaces 7967953) |
| 16 | Seal | 8251944 |
| 17 | Washer | 9231408 |
| 18 | Nut | 7967979 |
| 34 | Cover plate | 8258832 |
| 34 | Cover plate | 8258840 |
| 35 | Attaching bracket | 8258253 |
| 36 | Screw | 7922206 |
| 37 | Washer | 7045776 |
| 38 | Protecting moulding | 9228040 |
| 45 | Seal | 9238528 |
