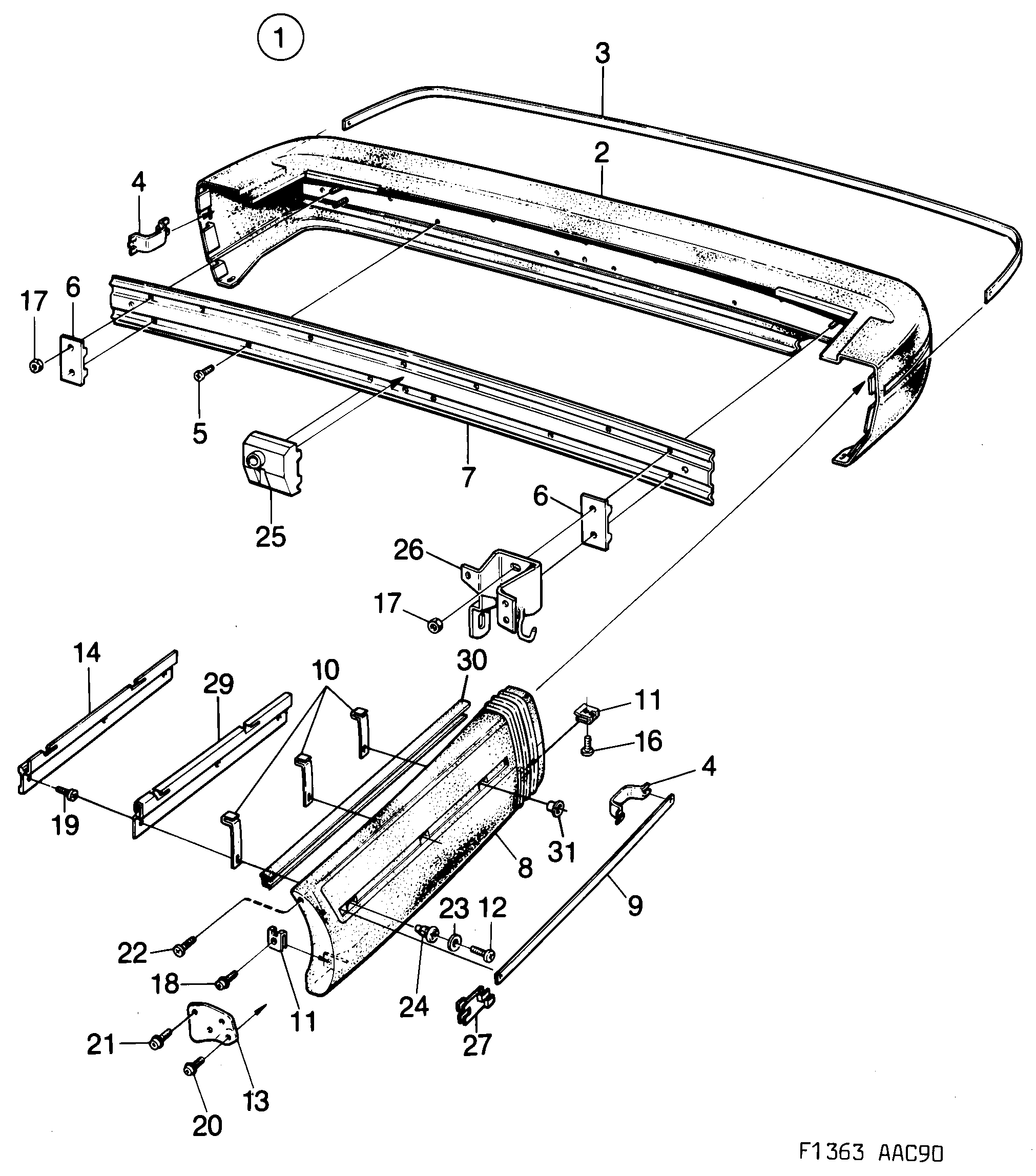

Group 8a Car body, external, section 1550
| Pos | Article | Part No. |
|---|---|---|
| 1 | Bumper | 6914808 |
| 1 | Bumper | 6919906 |
| 1 | Bumper | 6940100 |
| 1 | Bumper | 6940084 |
| 2 | Cover | 6914816 |
| 2 | Cover | 6914931 |
| 2 | Cover | 6943948 |
| 2 | Cover | 6943914 |
| 3 | Decor strip | 6973945 (replaces 6940381) |
| 4 | Spring | 6959142 |
| 5 | Screw | 7922438 |
| 6 | Spacer | 6940233 |
| 7 | Attaching rail | 9294471 |
| 8 | Side part | 4088324 |
| 8 | Side part | 4088332 |
| 8 | Side part | 6942866 |
| 8 | Side part | 6942874 |
| 8 | Side part | 4088340 |
| 8 | Side part | 4088357 |
| 8 | Side part | 6942882 |
| 8 | Side part | 6942890 |
| 9 | Decor strip | 6940365 |
| 10 | Spring | 6928592 |
| 11 | Clip nut | 7968001 |
| 12 | Screw | 7972821 |
| 13 | End piece | 6928204 |
| 13 | End piece | 6928212 |
| 13 | End piece | 6927784 |
| 13 | End piece | 6927792 |
| 14 | Attaching fitting | 6937346 |
| 14 | Attaching fitting | 6937353 |
| 14 | Attaching fitting | 6937304 |
| 14 | Attaching fitting | 6937312 |
| 16 | Screw | 92153219 (replaces 7922354) |
| 17 | Nut | 11900429 (replaces 7967953) |
| 18 | Screw | 92153005 (replaces 7969314) |
| 20 | Screw | 92153149 (replaces 7975774) |
| 21 | Screw | 7975782 |
| 22 | Screw | 7977796 |
| 23 | Washer | 9230293 |
| 24 | Bushing | 6911804 |
| 25 | Buffer | 9294539 |
| 25 | Buffer | 6943690 |
| 26 | Bracket | 6938765 |
| 26 | Bracket | 6938773 |
| 26 | Bracket | 6938740 |
| 26 | Bracket | 6938757 |
| 27 | Clamp | 6940183 |
| 27 | Clamp | 6940175 |
| 29 | Mounting bracket | 6937288 |
| 29 | Mounting bracket | 6937296 |
| 30 | Moulding | 6942627 |
| 30 | Moulding | 6944268 |
| 31 | Sleeve | 8573958 |
