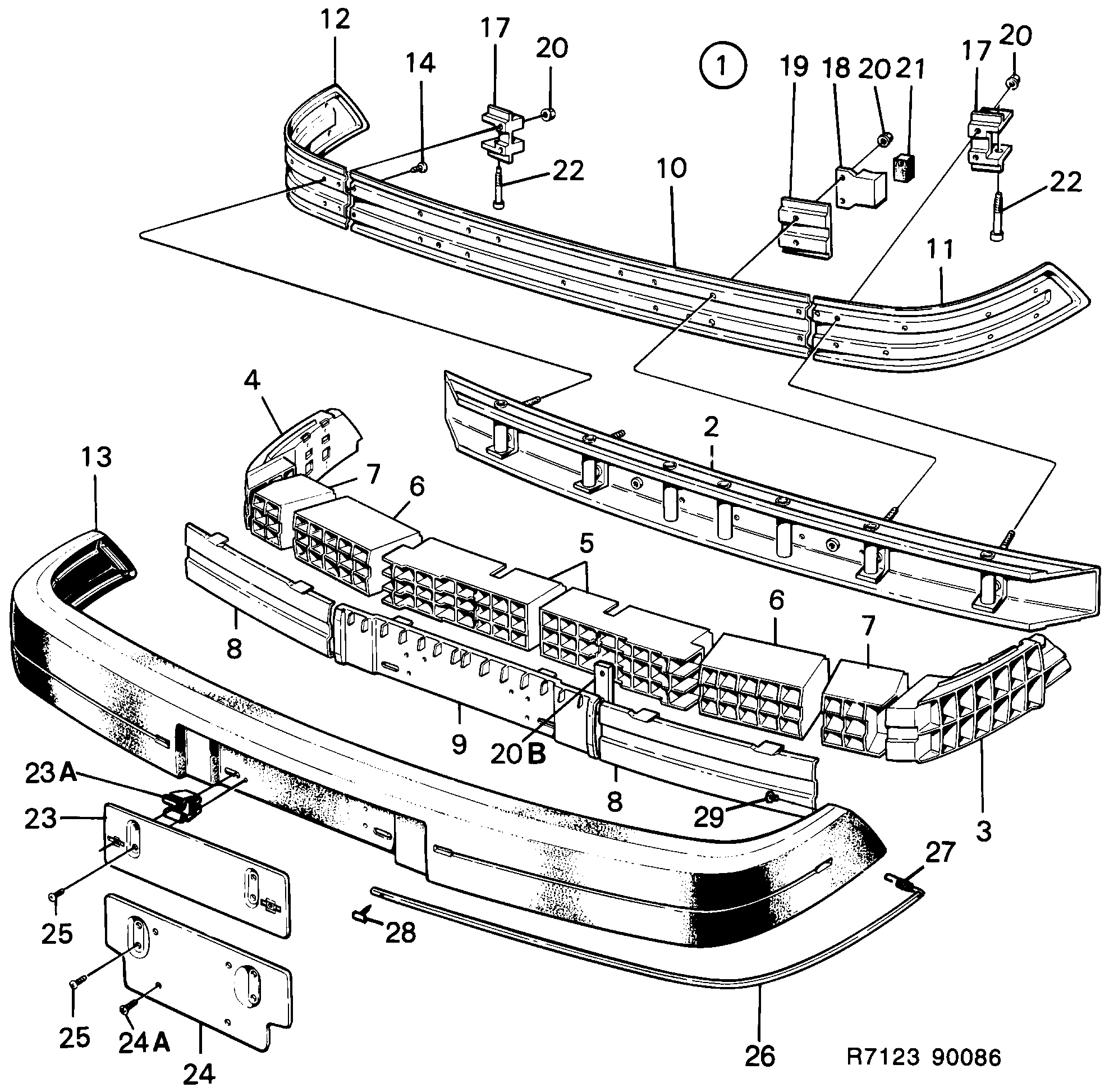

Group 8a Car body, external, section 1510
| Pos | Article | Part No. |
|---|---|---|
| 1 | Bumper | 9284761 |
| 2 | Rail | 8258279 |
| 3 | Cell section | 9292236 |
| 4 | Cell section | 9292244 |
| 5 | Cell section | 8273278 |
| 6 | Cell section | 8273286 |
| 7 | Cell section | 8273294 |
| 8 | Rail | 8258378 |
| 9 | Rail | 8258360 |
| 10 | Attaching rail | 8258386 |
| 11 | Attaching rail | 8258394 |
| 12 | Attaching rail | 8258402 |
| 13 | Protection | 9237165 |
| 14 | Screw | 7922420 |
| 17 | Bracket | 8266777 |
| 17 | Bracket | 8266785 |
| 18 | Spacer | 8266744 |
| 19 | Spacer | 8266579 |
| 20 | Nut | 11900429 (replaces 7967953) |
| 20B | Washer | 8258352 |
| 21 | Buffer | 8278020 |
| 22 | Screw | 8266900 |
| 23 | Bracket | 8258428 |
| 23A | Cage nut | 7970403 |
| 24 | Bracket | 6921142 |
| 24A | Screw | 7977390 |
| 25 | Screw | 8059578 |
| 26 | Decor strip | 9283441 |
| 26 | Decor strip | 8283863 |
| 26 | Decor strip | 9292202 |
| 27 | Spring | 9292228 |
| 28 | Clip | 9291998 |
| 29 | Rivet | 7973308 |
