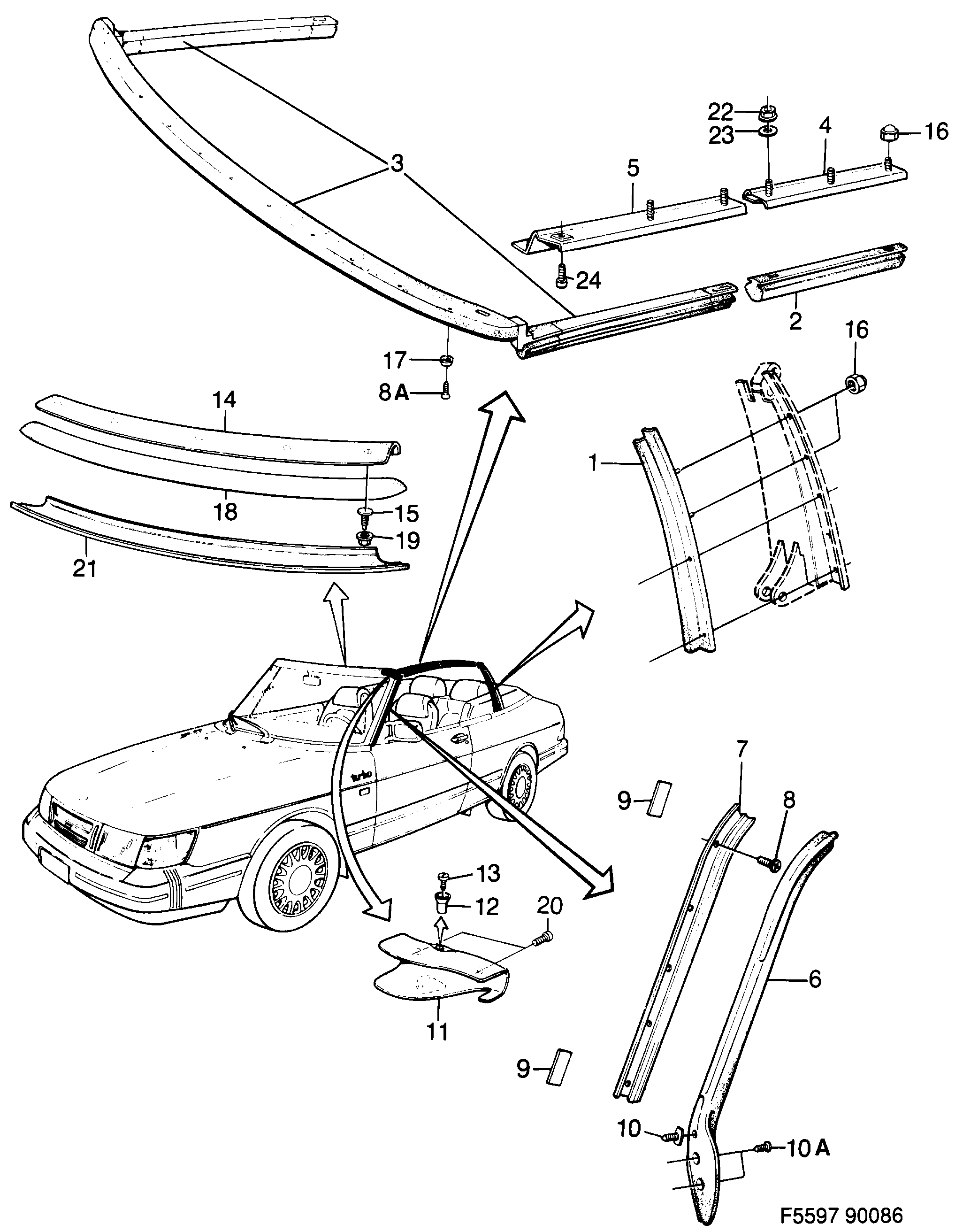

Group 8a Car body, external, section 1450
| Pos | Article | Part No. |
|---|---|---|
| 1 | Seal | 6950216 |
| 1 | Seal | 4154035 (replaces 6950208) |
| 2 | Seal | 6951396 |
| 2 | Seal | 6951388 |
| 3 | Seal | 6951370 |
| 4 | Bracket | 6951362 |
| 4 | Bracket | 6951354 |
| 5 | Bracket | 6951347 |
| 5 | Bracket | 6951339 |
| 6 | Sealing strip | 6950455 |
| 6 | Sealing strip | 6952659 |
| 6 | Sealing strip | 6950448 |
| 6 | Sealing strip | 6952642 |
| 7 | Bracket | 6950414 |
| 7 | Bracket | 6952907 |
| 7 | Bracket | 6950406 |
| 7 | Bracket | 6952899 |
| 8 | Screw | 7975758 |
| 8 | Screw | 6997894 |
| 8A | Screw | 8408882 |
| 8A | Screw | 8840068 (replaces 7398993) |
| 9 | Tape | 9288127 |
| 10 | Clip | 6911614 (replaces 8412256) |
| 10 | Clip | 6911614 |
| 10A | Plastic clip | 6951784 |
| 11 | Fitting | 9881707 |
| 11 | Fitting | 9647835 |
| 11 | Fitting | 9161415 |
| 11 | Fitting | 9881715 |
| 11 | Fitting | 9647843 |
| 11 | Fitting | 9161423 |
| 12 | Bushing | 9882127 |
| 12 | Bushing | 9824905 |
| 13 | Screw | 7922636 |
| 13 | Screw | 7972219 |
| 14 | Profile | 9881913 |
| 15 | Screw | 9881921 |
| 16 | Nut | 8594749 |
| 17 | Washer | 7913833 |
| 18 | Protection | 6935142 |
| 19 | Nut | 92150136 (replaces 7973365) |
| 20 | Screw | 7972201 |
| 23 | Washer | 92153032 (replaces 7916489) |
