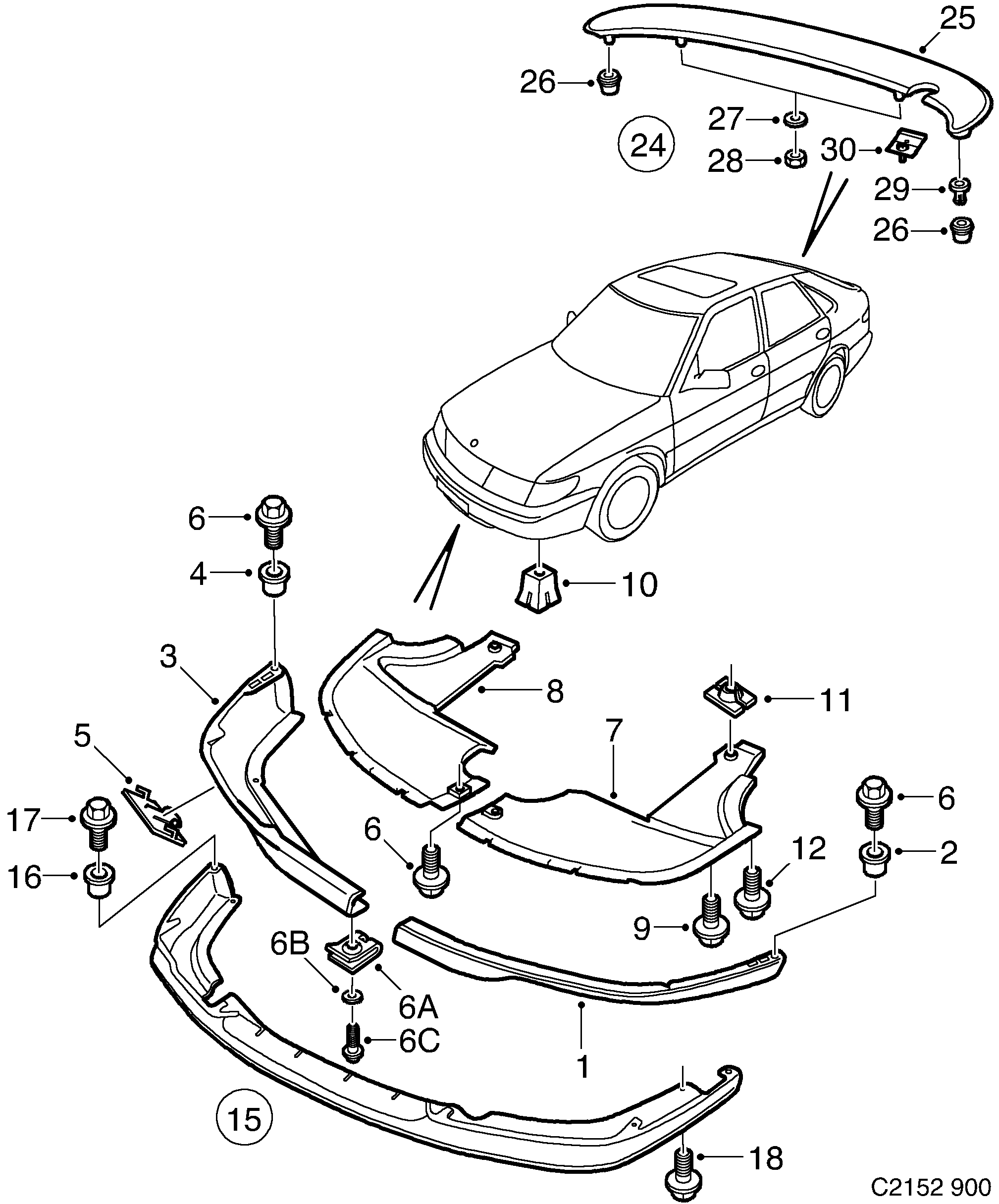

Group 8a Car body, external, section 1410
| Pos | Article | Part No. |
|---|---|---|
| 1 | Spoiler | 4522694 (replaces 4398491) |
| 1 | Spoiler | 4522694 |
| 2 | Nut | 9087040 |
| 3 | Spoiler | 4522702 (replaces 4398509) |
| 3 | Spoiler | 4522702 |
| 5 | Cover | 4248720 |
| 6 | Screw | 92153216 (replaces 7982325) |
| 6A | Clip nut | 92151849 (replaces 7975071) |
| 6B | Washer | 7981954 |
| 6C | Screw | 92153219 (replaces 7970601) |
| 7 | Air shield | 4334470 |
| Clip nut | 7967995 | |
| 7 | Air shield | 32000147 (replaces 4296174) |
| 8 | Air shield | 4334488 |
| 8 | Air shield | 4296182 |
| 9 | Hexagon screw | 92153149 (replaces 7983000) |
| 10 | Nut | 7975261 |
| 11 | Expanding nut | 4333704 |
| 12 | Screw | 92151996 (replaces 7975337) |
| 15 | Spoiler | 4481412 |
| 18 | Screw | 92153149 (replaces 7977465) |
| 24 | Spoiler | 400102174 |
| 25 | Spoiler | 4673331 (replaces 4240149) |
| 25 | Spoiler | 4673331 |
| 26 | Bushing | 4480869 |
| 27 | Washer | 4481073 |
| 28 | Nut | 11900451 (replaces 7977929) |
| 29 | Clip | 30556811 (replaces 4401675) |
| Mounting kit | 5499405 | |
| 30 | Anchorage | 4481065 |
| 30 | Anchorage | 4481347 |
| Washer | 12755938 (replaces 4089389) | |
| Sealing washer | 30582111 (replaces 4401733) | |
| Seal | 5124771 | |
| Tape | 5405436 |
