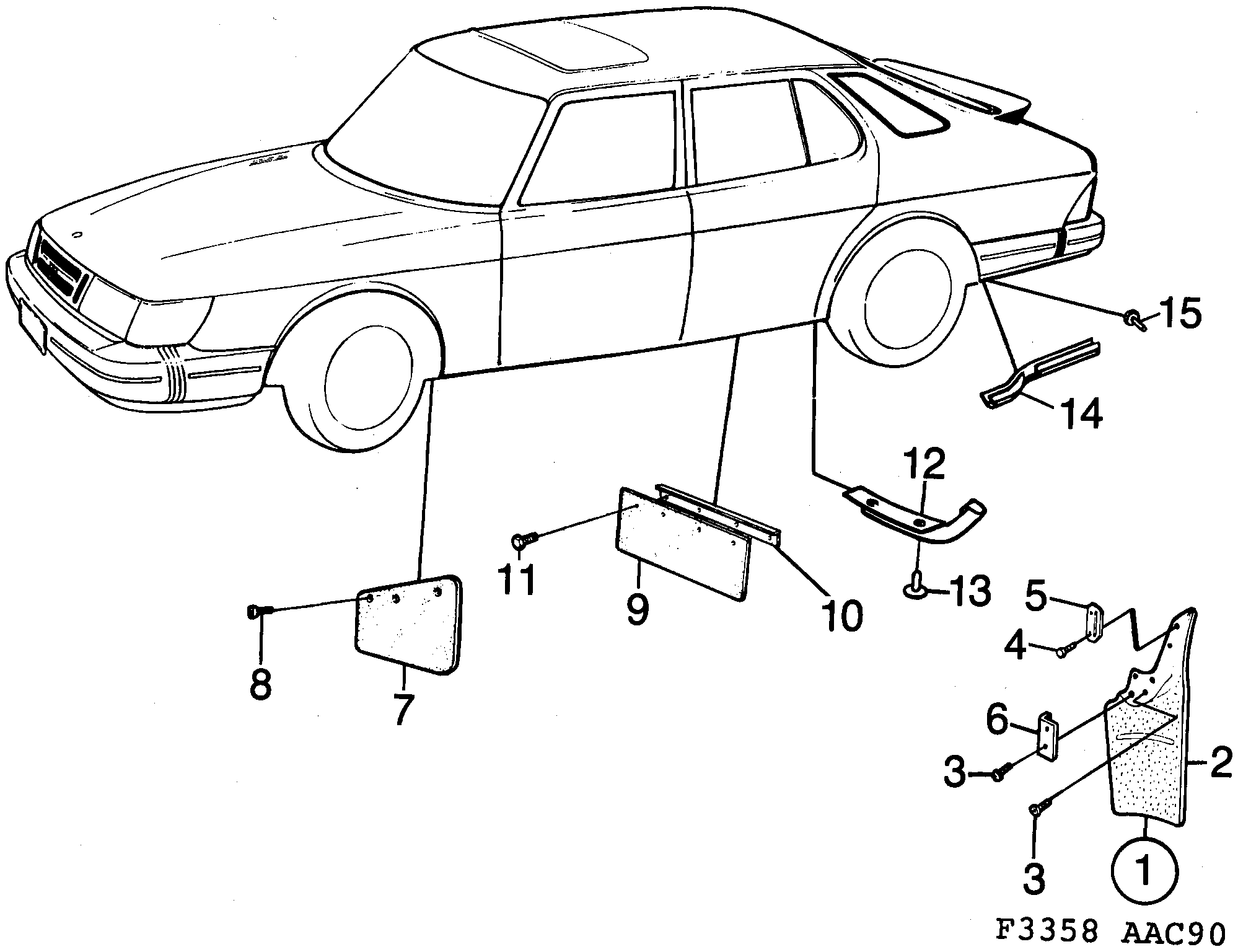

Group 8a Car body, external, section 1400
| Pos | Article | Part No. |
|---|---|---|
| 1 | Baffle | 7874746 |
| 1 | Baffle | 7874753 |
| 1 | Baffle | 7874761 |
| 1 | Baffle | 7874779 |
| 1 | Baffle | 6939375 |
| 1 | Baffle | 6939383 |
| 1 | Baffle | 9698390 |
| 1 | Baffle | 9698382 |
| 1 | Baffle | 9698408 |
| 2 | Baffle | 6937593 |
| 2 | Baffle | 6937585 |
| 2 | Baffle | 6937478 |
| 2 | Baffle | 6937486 |
| 2 | Baffle | 6942536 |
| 2 | Baffle | 6942528 |
| 3 | Screw | 7922982 |
| 3 | Screw | 92153005 (replaces 7969314) |
| 4 | Screw | 7922974 |
| 5 | Attaching plate | 9222613 |
| 6 | Support plate | 8227738 |
| 7 | Baffle | 8288151 |
| 7 | Baffle | 8288169 |
| 7 | Splash guard kit | 9698531 |
| 7 | Splash guard kit | 9698549 |
| 7 | Baffle | 9299678 |
| 7 | Baffle | 9299686 |
| 8 | Screw | 7973050 |
| 8 | Screw | 7973209 |
| 9 | Baffle | 8289266 |
| 10 | Elbow | 8209413 |
| 12 | Rubber protection | 8287310 |
| 12 | Rubber protection | 8287328 |
| 13 | Pop rivet | 8235178 |
| 14 | Protecting moulding | 6919054 |
| 15 | Rivet | 7961634 |
