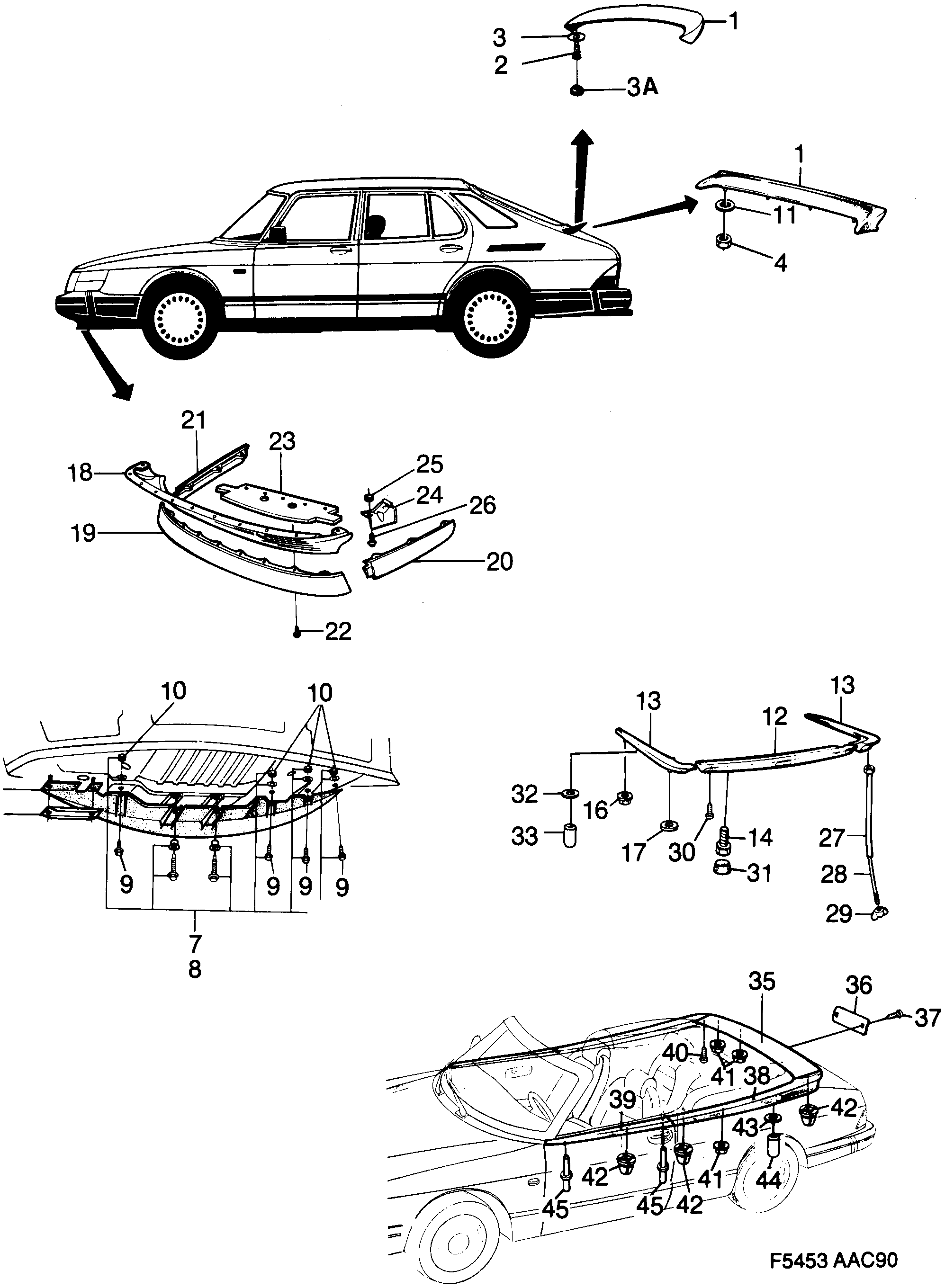

Group 8a Car body, external, section 1220
| Pos | Article | Part No. |
|---|---|---|
| 1 | Spoiler | 9288523 |
| 1 | Spoiler | 9290362 |
| 2 | Screw | 92153219 (replaces 7922354) |
| 3 | Washer | 9228255 |
| 3A | Plug | 8264962 |
| 4 | Nut | 7398423 |
| 7 | Mounting kit | 9238205 |
| 7 | Mounting kit | 6929483 |
| 8 | Mounting kit | 9230327 |
| 9 | Screw | 7969223 |
| 10 | Nut | 11900428 (replaces 7971658) |
| 11 | Washer | 9230293 |
| 12 | Spoiler | 6998181 |
| 12 | Spoiler | 6998173 |
| 13 | Spoiler | 6998207 |
| 13 | Spoiler | 6998215 |
| 18 | Spoiler | 9294265 |
| 18 | Spoiler | 6939144 |
| 19 | Spoiler | 6914709 |
| 20 | Spoiler | 6914717 |
| 21 | Spoiler | 6914725 |
| 22 | Screw | 92151807 (replaces 7976988) |
| 22 | Screw | 7973225 |
| 23 | Air shield | 6938369 |
| 24 | Air shield | 6938799 |
| 26 | Screw | 92153150 (replaces 7976947) |
| 27 | Bracket | 6995211 |
| 27 | Bracket | 6995229 |
| 28 | Bracket | 6995237 |
| 29 | Wing nut | 6995377 |
| 30 | Screw | 92150118 (replaces 7970536) |
| 32 | Lock washer | 6999957 |
| 33 | Sleeve | 8277667 |
| 35 | Spoiler | 4153334 |
| 35 | Spoiler | 4153383 |
| 36 | Lens | 4153953 |
| 37 | Screw | 6936314 |
| 38 | Spoiler | 4153342 |
| 38 | Spoiler | 4153359 |
| 39 | Spoiler | 4153367 |
| 39 | Spoiler | 4153375 |
| 42 | Clip | 4013454 |
| 45 | Rivet | 7975758 (replaces 4154175) |
| Mounting kit | 9288812 | |
| Spoiler | 7874381 | |
| Mounting kit | 7873771 | |
| Spoiler | 7873789 |
