Saab 900 1994-1998 Tail gate Lock

Group 8a Car body, external, section 1200

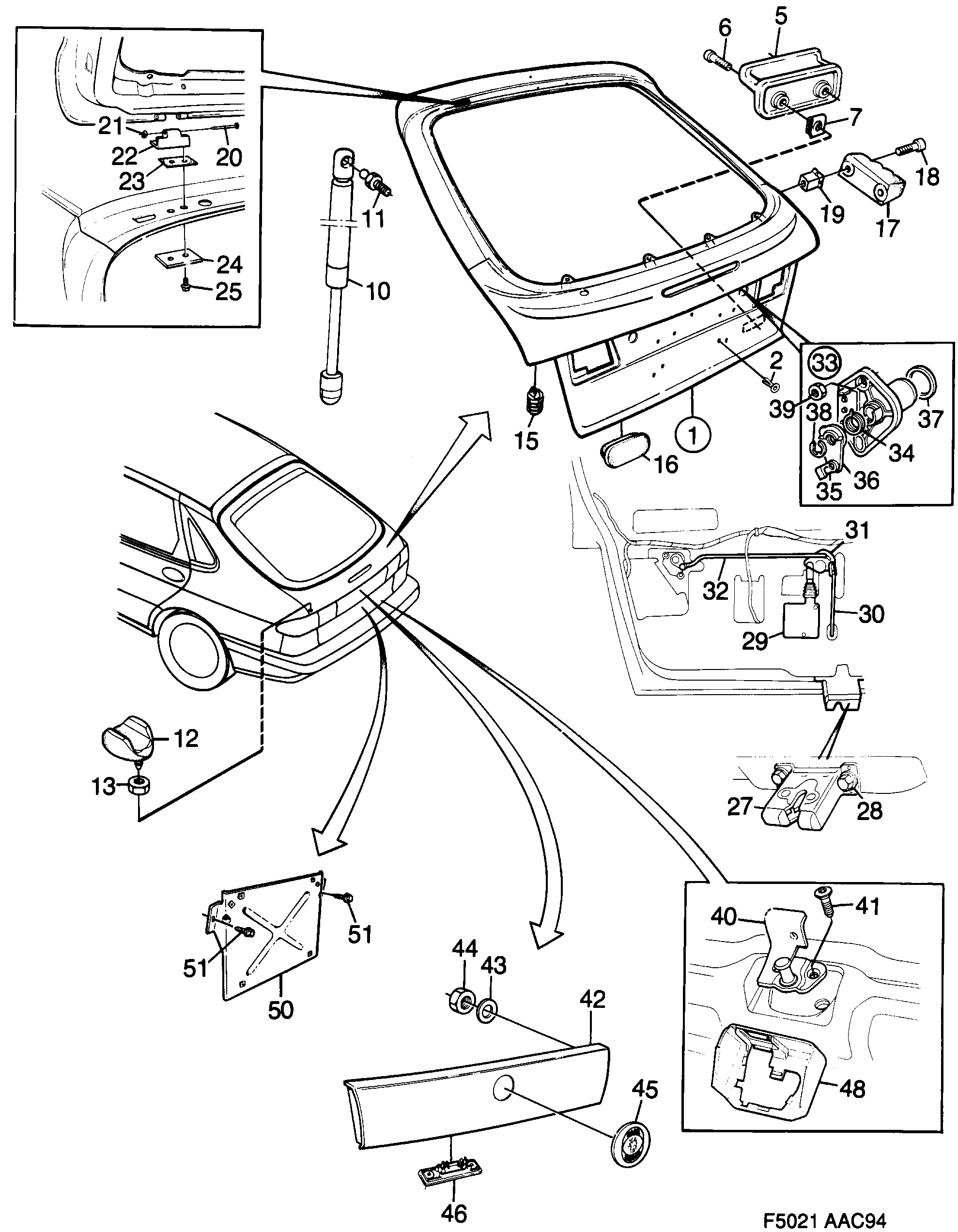

Saab 900 Tail gate Lock diagram

Pos	Article	Part No.
1	Trunk lid	4328845
1	Tail gate	4850970
2	Nut	8278467
2	Rivet nut	9130829 (replaces 7399454)
5	Handle	5332788 (replaces 9670548)
6	Screw	7977960
7	Clip nut	92150164 (replaces 7972573)
10	Gas spring	4324307
10	Gas spring	4326468
10	Gas spring	4492815
11	Ballpin	4493912
12	Side support	4323408
13	Nut	11900451 (replaces 7977929)
15	Rubber buffer	12786272 (replaces 4304234)
16	Plug	92152133 (replaces 7398886)
17	Side support	4326492
18	Screw	7922396
19	Press nut	92150170 (replaces 7982929)
20	Hinge bolt	4324810
21	Lock ring	4346227
22	Hinge flange	4324786
23	Seal	4559654 (replaces 4324802)
23	Seal	4559654
24	Washer	5333232 (replaces 4305546)
25	Screw	92150012 (replaces 7978182)
27	Lock	4327383
28	Screw	11900354 (replaces 7978109)
30	Rod	4324844
31	Pivot arm	4324836
31	Pivot arm	4851929
32	Rod	4324828
34	Spring	4010617
35	Clip	4346110
36	Companion flange	4494290
37	Seal	4494308
38	Retaining ring	8123473 (replaces 7936016)
40	Striker	4326450
41	Screw	90511105 (replaces 4346649)
41	Screw	92152010 (replaces 4347423)
41	Screw	92152010 (replaces 4685624)
42	Decor panel	30550876 (replaces 4401600)
42	Decor panel	400104170 (replaces 4481677)
43	Seal	4480174
48	Cover	4509436
50	Bracket	4521100
51	Screw	11900353 (replaces 7978091)
51	Screw	92151601 (replaces 7978430)
	Mounting kit	12804284 (replaces 9240086)
	Screw	7977390
	Screw	92153219 (replaces 7970601)
