Saab 900 1986-1989 Outside handle Lock cylinder

Group 8a Car body, external, section 1030

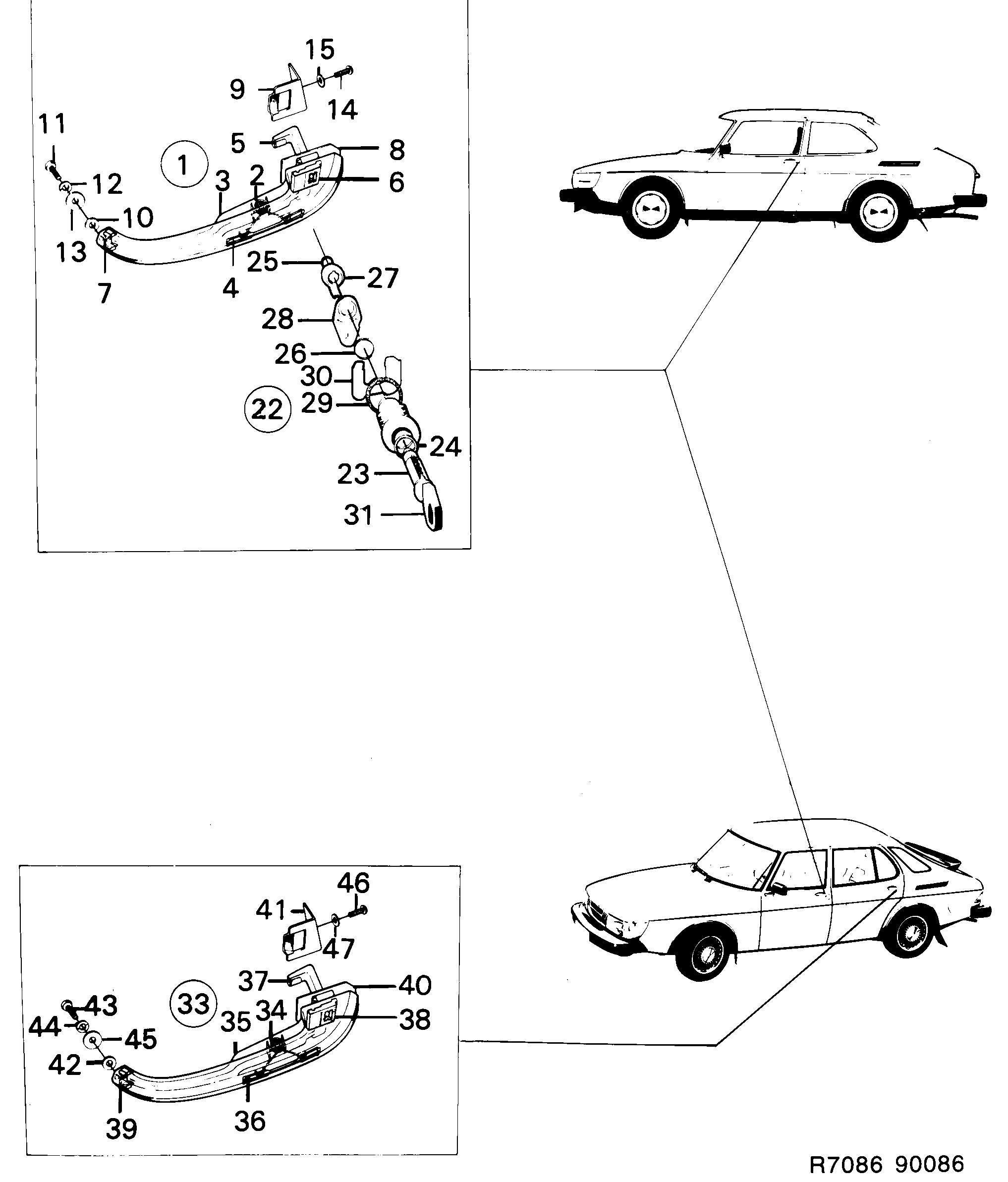

Saab 900 Outside handle Lock cylinder diagram

Pos	Article	Part No.
1	Handle	8249161
1	Handle	9227935
2	Spring	8478364
3	Clasp	8249914
4	Sliding plane	8238107
5	Slide dog	8249922
6	Guide	8238099
6	Guide	6940712
7	Plastic bushing	8238115
7	Plastic bushing	8238123
8	Guide	8237323
8	Guide	6940704
9	Bracket	6911291
9	Bracket	6911309
9	Bracket	6911275
9	Bracket	6911283
10	Spacer	8429441
11	Screw	92151805 (replaces 7973639)
11	Screw	92151805 (replaces 8059230)
12	Washer	7398878 (replaces 7910524)
13	Washer	7088073
13	Lock washer	7398878
14	Screw	8059578
15	Washer	92153032 (replaces 7916489)
22	Lock cylinder	8487597
22	Lock cylinder	8487605
23	Lock cylinder	8486409
24	Seal	8452252
25	Ring	8451981
26	Spring	8451957
27	Companion flange	8451973
28	Link	8451965
29	Gasket	8408361
30	Clip	8453227
31	Key blank	8470767
41	Bracket	8286858
46	Screw	8055980
47	Washer	7934136
