Saab 900 1990-1993 Tail gate Lock

Group 8a Car body, external, section 1010

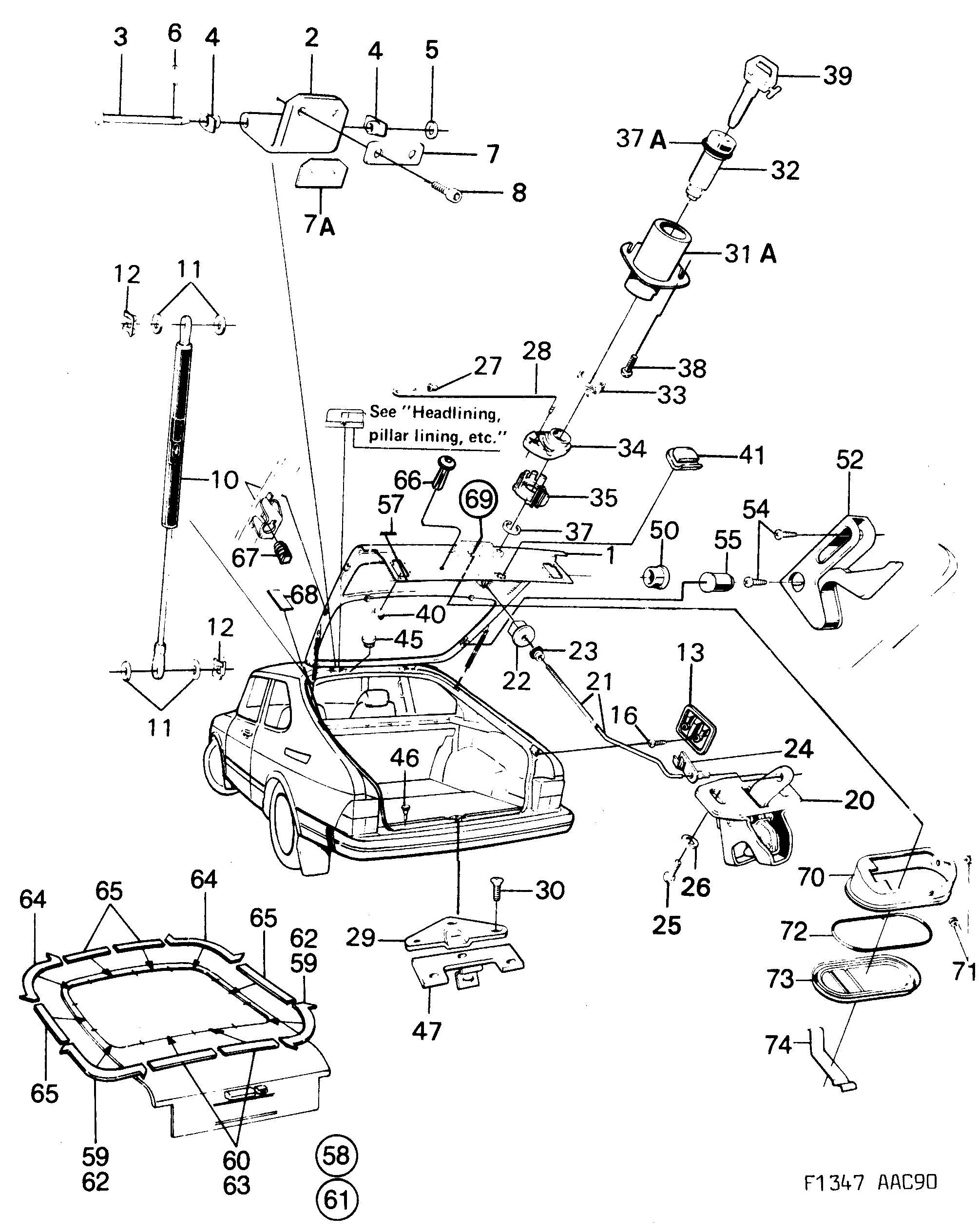

Saab 900 Tail gate Lock diagram

Pos	Article	Part No.
1	Trunk lid	6927032
2	Hinge	8251217
3	Shaft	8252868
4	Bushing	8288144
5	Washer	92153033 (replaces 8029985)
5	Washer	32000432 (replaces 9166372)
6	Lock needle	9293523
7	Washer	8252314
7A	Washer	6927339
8	Screw	9233719
10	Spring	9231796
10	Spring	9293580
11	Washer	8252363
12	Clip	12780365 (replaces 8252553)
13	Guide	9292756
16	Screw	8059396 (replaces 7973373)
20	Door lock	4090130
21	Pull rod	8278863
22	Adjusting nut	8460172
23	Grommet	8285843
24	Clip	8461675
25	Screw	8097883
26	Washer	8029969
27	Bushing	8451825
28	Control rod	9237751
29	Striker	8464539
30	Screw	8055998
31A	Lock cylinder	8283772
32	Lock cylinder	8283780
33	Spring	8451957
34	Link	8286551
35	Companion flange	8451973
37	Ring	8451981
37A	Seal	8452252
39	Key blank	8470767
40	Plug	7162308
41	Plug	6927677
45	Plug	7163066
45	Plug	9268160
46	Rubber plug	7035801
47	Washer	9228503
50	Cover	9223371
52	Latch	9736935
54	Screw	7973647
55	Plug	9412636
57	Moulding	9237272
58	Repair kit	7873714
59	Attaching plate	9284498
60	Attaching plate	9284514
61	Repair kit	7873722
64	Attaching plate	9284480
65	Attaching plate	9284506
66	Plug	9221987
67	Buffer	4006425
67	Rubber buffer	12786272 (replaces 4304234)
68	Guard	6943989
70	Cover	6941330
70	Cover	6941819
71	Grommet	6941298
72	Seal	6941645
73	Cover	6941314
74	Clamp	6941660
	Buffer	6916050
