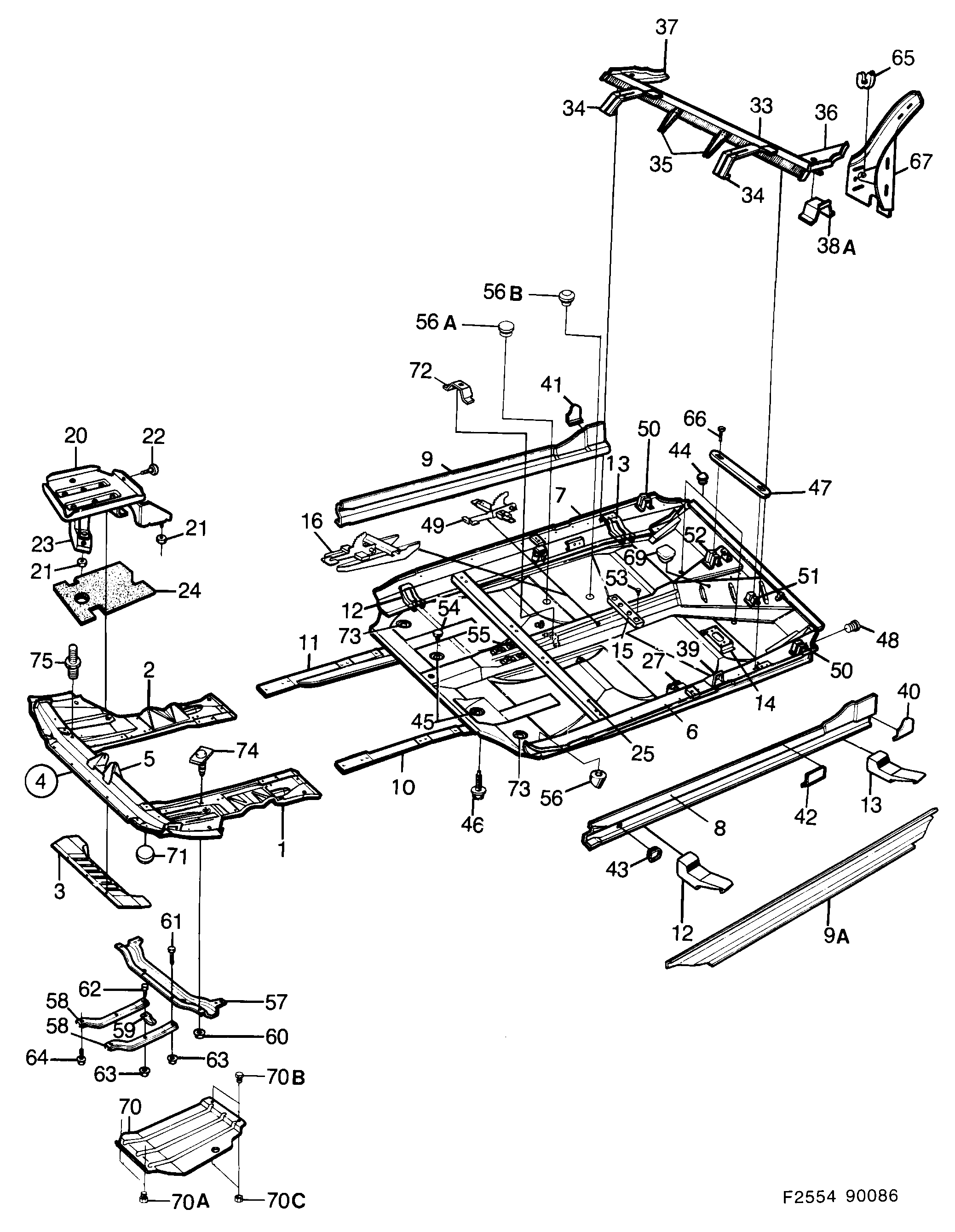

Group 8a Car body, external, section 100
| Pos | Article | Part No. |
|---|---|---|
| Body | 8266454 | |
| Body | 8266462 | |
| Body | 9207911 | |
| Body | 9206657 | |
| Front section | 7612146 | |
| 1 | Floor | 6912331 |
| 2 | Floor | 6912323 |
| 3 | Plate | 8274383 |
| 4 | Beam | 6945141 (replaces 6925523) |
| 4 | Beam | 6945174 |
| 5 | Bracket | 6925515 |
| 6 | Sill | 8274599 |
| 7 | Sill | 8274607 |
| 8 | Sill | 8274615 |
| 8 | Sill | 6926919 |
| 8 | Sill | 8274813 |
| 8 | Sill | 6926810 |
| 9 | Sill | 8274623 |
| 9 | Sill | 6926927 |
| 9 | Sill | 8274821 |
| 9 | Sill | 6926828 |
| 9A | Sill | 6933659 |
| 9A | Sill | 6933667 |
| 10 | Beam | 6915292 |
| 11 | Beam | 6915300 |
| 12 | Jack support | 9290776 |
| 12 | Jack support | 9290784 |
| 13 | Jack support | 9290750 |
| 13 | Jack support | 9290768 |
| 14 | Bracket | 6928352 |
| 15 | Seat bracket | 6928386 |
| 16 | Support | 6928394 |
| 16 | Support | 6928402 |
| 20 | Shelf | 6914139 |
| 21 | Nut | 11900428 (replaces 7971658) |
| 22 | Rubber plug | 7035801 |
| 23 | Reinforcement | 9225806 |
| 24 | Insulation | 9713496 |
| 25 | Beam | 6917934 |
| 25 | Beam | 6928337 |
| 27 | Bracket | 9223967 |
| 27 | Bracket | 6928360 |
| 27 | Bracket | 6928378 |
| 33 | Crossmember | 7602394 |
| 33 | Crossmember | 6945109 |
| 33 | Crossmember | 6945422 |
| 34 | Support | 9285180 |
| 35 | Brace | 8283947 |
| 36 | Plate | 9284274 |
| 37 | Plate | 9284282 |
| 38A | Plate | 9284316 |
| 38A | Plate | 9284324 |
| 39 | Bracket | 8283533 |
| 40 | Connector | 8242398 |
| 41 | Connector | 8242406 |
| 42 | Filling-in plate | 8242554 |
| 43 | Plug | 8204661 |
| 44 | Plug | 8204760 |
| 45 | Cover | 7313752 |
| 46 | Screw | 11588749 (replaces 8267049) |
| 46 | Screw | 11588749 (replaces 7976921) |
| 47 | Cover plate | 7603459 |
| 48 | Draining plug | 9228180 |
| 49 | Segment | 9289166 |
| 49 | Segment | 6927586 |
| 50 | Support | 8205452 |
| 51 | Support | 8205981 |
| 52 | Support | 8205999 |
| 53 | Plug | 8267296 (replaces 8239154) |
| 54 | Plug | 8239162 |
| 54 | Cover | 9492471 |
| 55 | Plug | 8239170 |
| 56 | Draining plug | 9267998 (replaces 8266876) |
| 56B | Plug | 8267296 |
| 57 | Beam | 9230079 |
| 58 | Beam | 9230095 |
| 59 | Plate | 8259061 |
| 60 | Lock nut | 7969306 |
| 61 | Screw | 9231705 |
| 62 | Screw | 8082935 |
| 63 | Nut | 11900429 (replaces 7967953) |
| 64 | Screw | 8262958 |
| 65 | Bushing | 9221508 |
| 66 | Pop rivet | 7972474 |
| 67 | Support | 8287294 |
| 67 | Support | 8287302 |
| 70 | Protecting plate | 6913545 |
| 70 | Protecting plate | 6939672 |
| 70 | Protecting plate | 4007449 |
| 70 | Protecting plate | 4008793 |
| 71 | Plug | 7155708 |
| 72 | Bracket | 6928345 |
| 72 | Bracket | 6943740 |
| 73 | Cover | 6930341 |
| 75 | Stud screw | 6945141 |
