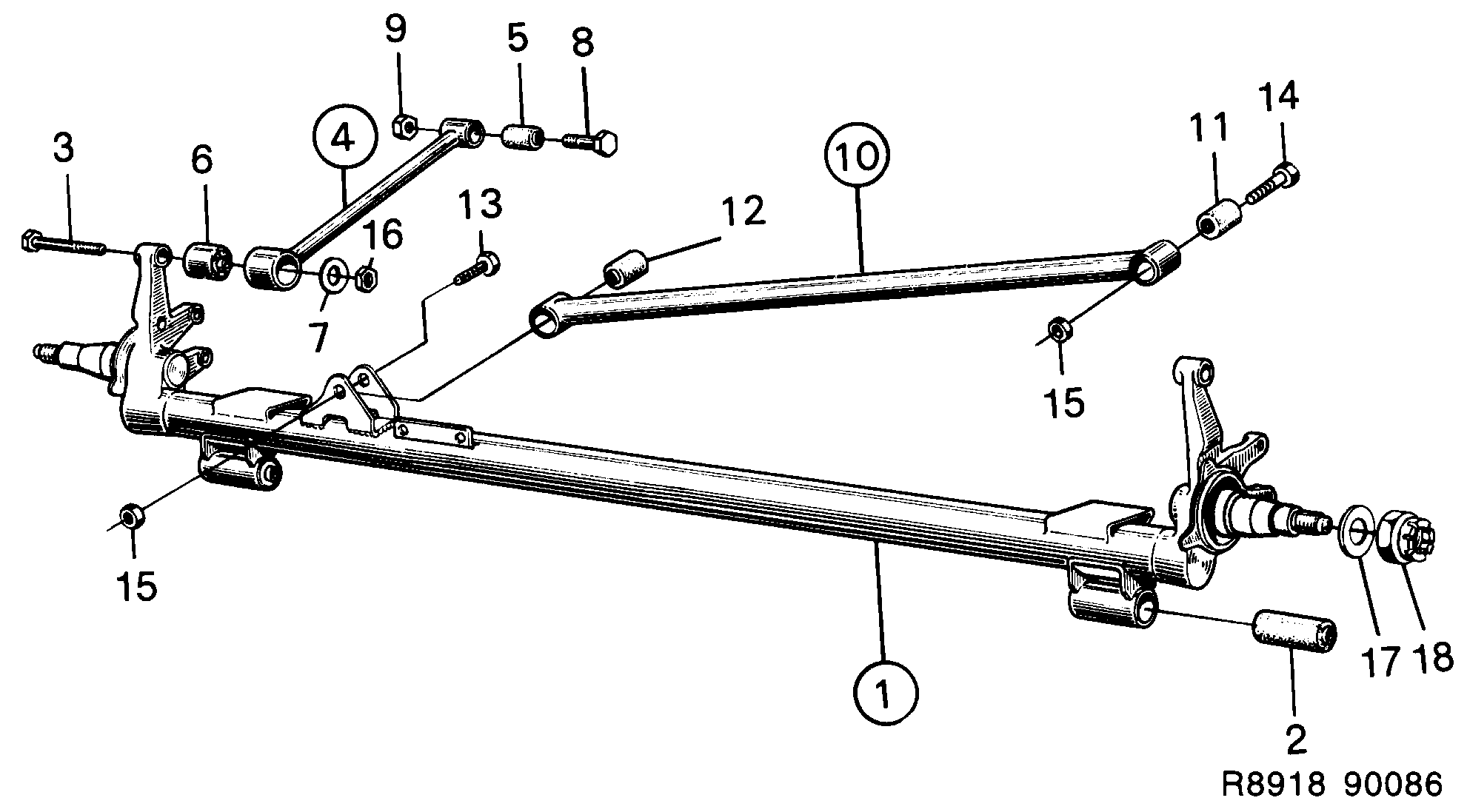

Group 7 Suspension system, section 190
| Pos | Article | Part No. |
|---|---|---|
| 1 | Rear axle | 9100298 |
| 1 | Rear axle | 9101395 |
| 1 | Rear axle | 9105859 |
| 2 | Bushing | 8935306 |
| 3 | Screw | 8928046 |
| 3 | Screw | 7979586 (replaces 7979487) |
| 4 | Brace | 8944175 |
| 4 | Brace | 9103102 |
| 5 | Bushing | 8932741 |
| 5 | Bushing | 8956468 |
| 6 | Bushing | 8908675 |
| 6 | Bushing | 9103110 |
| 7 | Washer | 8909632 |
| 7 | Washer | 8952277 |
| 8 | Screw | 8933293 |
| 8 | Screw | 30509382 (replaces 8084162) |
| 8 | Screw | 30509382 (replaces 7982002) |
| 9 | Nut | 7940455 |
| 9 | Lock nut | 7977812 (replaces 8073538) |
| 9 | Lock nut | 7977812 |
| 10 | Brace | 8932071 |
| 11 | Bushing | 8932014 |
| 12 | Bushing | 8930307 |
| 13 | Screw | 8942005 |
| 14 | Screw | 8930299 |
| 16 | Nut | 7963416 |
| 17 | Washer | 8946477 |
| 18 | Lock nut | 8964710 |
| 18 | Lock nut | 8965360 |
