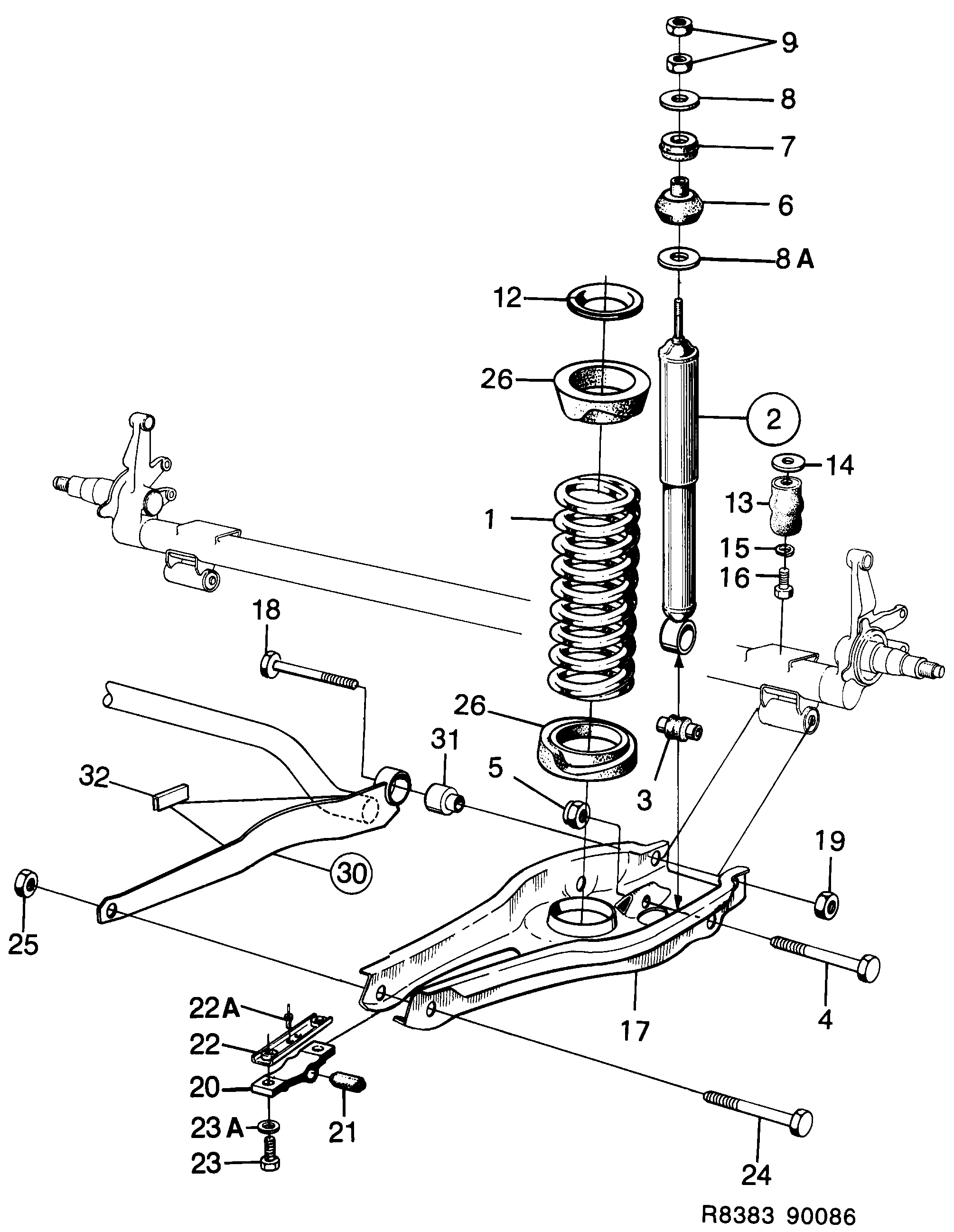

Group 7 Suspension system, section 160
| Pos | Article | Part No. |
|---|---|---|
| 1 | Spring | 8945818 |
| 1 | Spring | 8941502 |
| 1 | Spring | 8945826 |
| 1 | Spring | 9101940 |
| 2 | Shock absorber kit | 8993412 |
| 2 | Shock absorber kit | 9105487 |
| 2 | Shock absorber kit | 8993446 |
| 2 | Shock absorber kit | 8993446 (replaces 8993487) |
| 2 | Shock absorber kit | 9102799 |
| 3 | Bearing bushing | 8947939 |
| 4 | Screw | 8938466 |
| 5 | Lock nut | 8151482 (replaces 8073546) |
| 5 | Lock nut | 8151482 |
| 6 | Bushing | 8939423 |
| 7 | Bushing | 30520186 (replaces 8985962) |
| 7 | Bushing | 30520186 (replaces 9100025) |
| 8 | Washer | 8985954 |
| 8A | Washer | 8948226 |
| 9 | Nut | 30509371 (replaces 8315558) |
| 9 | Nut | 30509371 (replaces 7979511) |
| 12 | Spacer ring | 8933897 |
| 13 | Buffer | 8922445 |
| 14 | Spacer | 4107413 (replaces 8947152) |
| 15 | Washer | 7910599 |
| 16 | Screw | 7975063 |
| 17 | Spring link | 8936304 |
| 17 | Spring link | 8947210 |
| 18 | Screw | 7979594 (replaces 8084410) |
| 18 | Screw | 7979594 (replaces 7979396) |
| 18 | Screw | 8084451 |
| 18 | Screw | 7982168 |
| 20 | Bearing anchorage | 8947269 |
| 21 | Bushing | 8935298 |
| 22 | Nut plate | 8989899 |
| 22A | Rivet | 7975717 |
| 23 | Bolt | 8990079 |
| 23A | Washer | 8030017 |
| 24 | Screw | 8084386 |
| 24 | Screw | 7982044 |
| 24 | Screw | 8084394 |
| 24 | Screw | 7982150 |
| 26 | Spring support | 8935330 |
| 30 | Stabilizer bar | 8988297 |
| 31 | Bushing | 8989980 |
| 32 | Rubber moulding | 8989998 |
