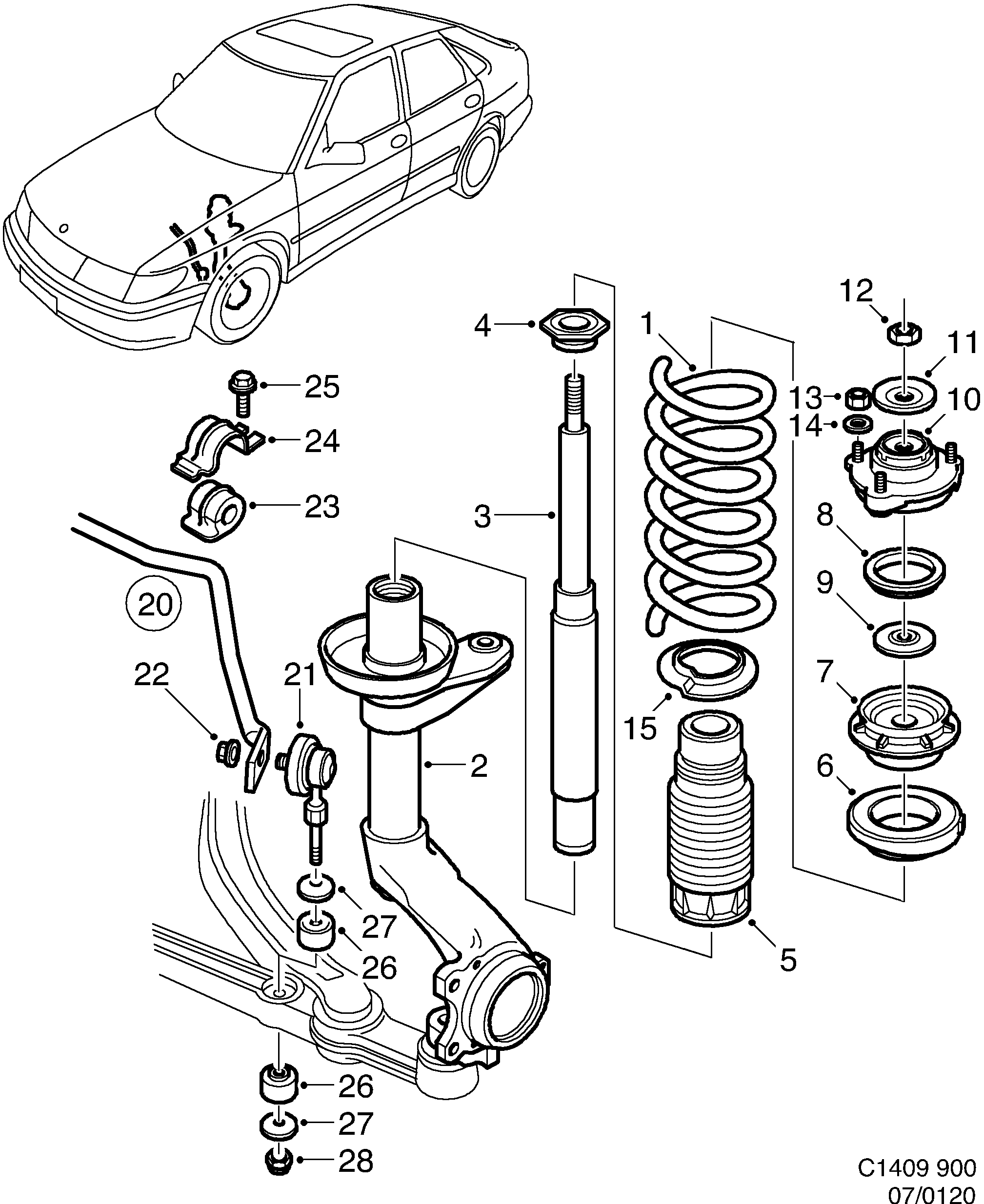

Group 7 Suspension system, section 120
| Pos | Article | Part No. |
|---|---|---|
| 1 | Spring | 4483160 |
| 1 | Spring | 4483178 |
| 1 | Spring | 4483186 |
| 1 | Spring | 4483194 |
| 1 | Spring | 4483202 |
| 1 | Spring | 4483210 |
| 3 | Spring strut insert | 4241816 |
| 3 | Spring strut insert | 4646477 |
| 3 | Spring strut insert | 5334628 (replaces 4241931) |
| 3 | Spring strut insert | 5334628 (replaces 4646493) |
| 3 | Spring strut insert | 5334628 (replaces 4244604) |
| 3 | Spring strut insert | 4646519 |
| 3 | Spring strut insert | 4646535 (replaces 4543005) |
| 3 | Spring strut insert | 4646535 |
| 4 | Sleeve | 4243390 |
| 5 | Bump stop | 4483897 |
| 6 | Support | 4245734 |
| 7 | Spring support | 4544979 (replaces 4402491) |
| 7 | Spring support | 4544979 |
| 8 | Thrust bearing | 4909701 (replaces 4246377) |
| 9 | Washer | 4907663 (replaces 4483616) |
| 9 | Washer | 4907663 |
| 10 | Support bearing | 4544276 (replaces 4483632) |
| 10 | Support bearing | 4544276 |
| 11 | Washer | 4646634 (replaces 4247557) |
| 11 | Washer | 4646634 |
| 12 | Hexagon nut | 4346862 |
| 13 | Nut | 7979602 |
| 14 | Washer | 92153033 (replaces 7916497) |
| 15 | Spacer | 4689378 |
| 20 | Stabilizer bar | 4483814 |
| 20 | Stabilizer bar | 4248415 |
| 20 | Stabilizer bar | 4543492 |
| 20 | Stabilizer bar | 4543500 |
| 20 | Stabilizer bar | 4483822 |
| 21 | Link | 30540743 (replaces 4400040) |
| 21 | Link | 4544599 |
| 22 | Lock nut | 4347357 |
| 23 | Bushing | 4398269 |
| 23 | Bushing | 4543518 |
| 23 | Bushing | 4543526 |
| 23 | Bushing | 4398251 |
| 24 | Cap | 4246104 |
| 24 | Cap | 5058821 (replaces 4249793) |
| 24 | Cap | 4543542 |
| 25 | Screw | 11900016 (replaces 7976897) |
| 25 | Screw | 7985773 |
| 26 | Rubber block | 4246112 |
| 27 | Washer | 4087326 |
| 28 | Nut | 11900440 (replaces 8074288) |
