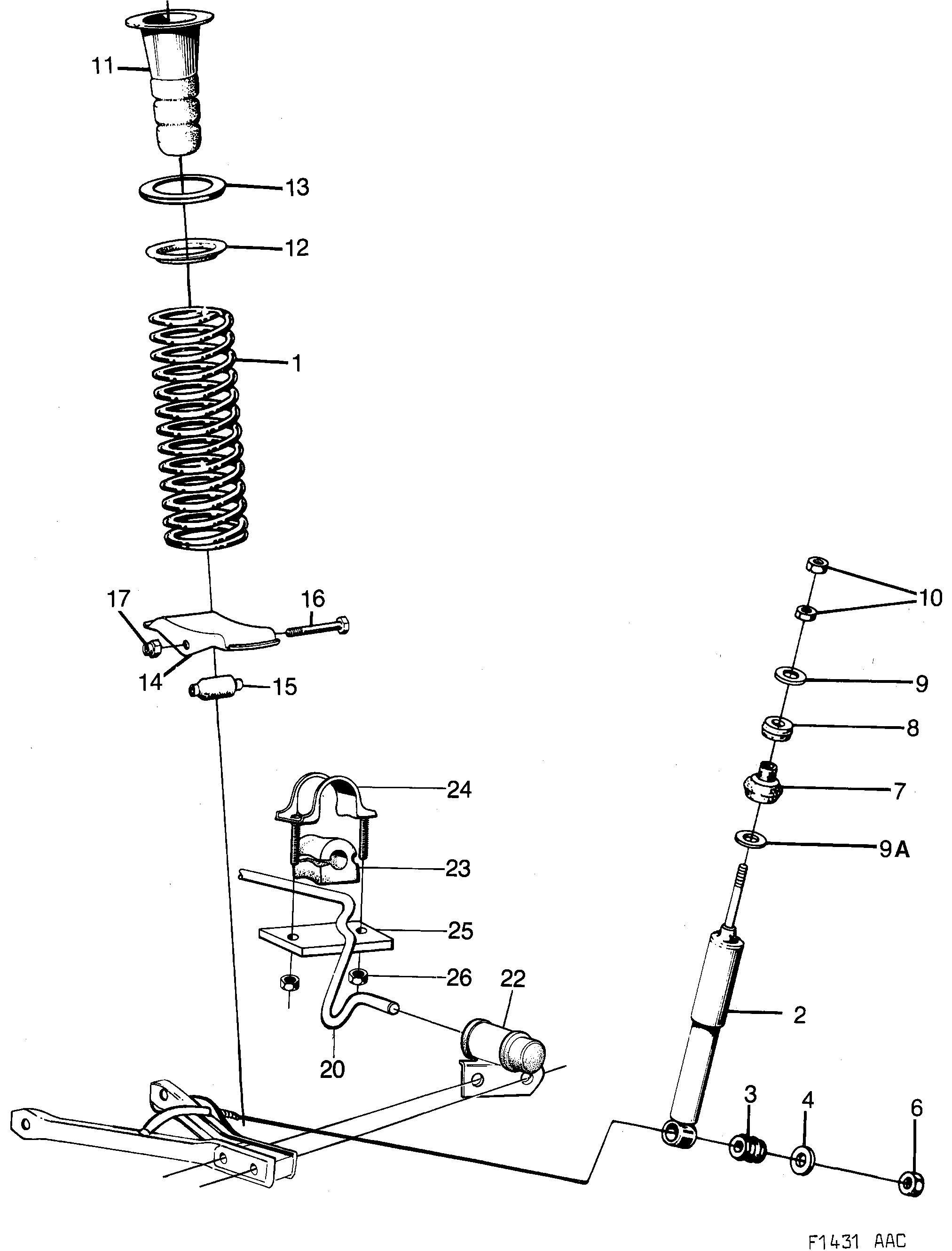

Group 7 Suspension system, section 110
| Pos | Article | Part No. |
|---|---|---|
| 1 | Spring | 8945792 |
| 1 | Spring | 8945784 |
| 1 | Spring | 8945776 |
| 1 | Spring | 8945800 |
| 1 | Spring | 8989881 |
| 1 | Spring | 9101932 |
| 2 | Shock absorber kit | 8993438 |
| 2 | Shock absorber kit | 8993438 (replaces 8993479) |
| 2 | Shock absorber kit | 9102781 |
| 3 | Bushing | 8932840 |
| 4 | Washer | 8920019 |
| 6 | Nut | 7904089 |
| 7 | Bushing | 8939423 |
| 8 | Bushing | 30520186 (replaces 9100025) |
| 9 | Washer | 8985954 |
| 9A | Washer | 8948226 |
| 10 | Nut | 30509371 (replaces 7979511) |
| 11 | Buffer | 9101882 |
| 12 | Spring support | 8919862 |
| 12 | Spring support | 8921108 |
| 13 | Spacer ring | 8933889 |
| 14 | Spring support | 8919870 |
| 15 | Bushing | 8931974 |
| 16 | Screw | 7903743 |
| 17 | Nut | 7940463 |
| 20 | Stabilizer bar | 8988289 |
| 22 | Bracket | 8962656 |
| 22 | Bracket | 30519423 (replaces 8962664) |
| 23 | Rubber bushing | 8990087 |
| 24 | Cap | 8989915 |
| 25 | Stay pad | 8989907 |
| 26 | Nut | 7974371 |
