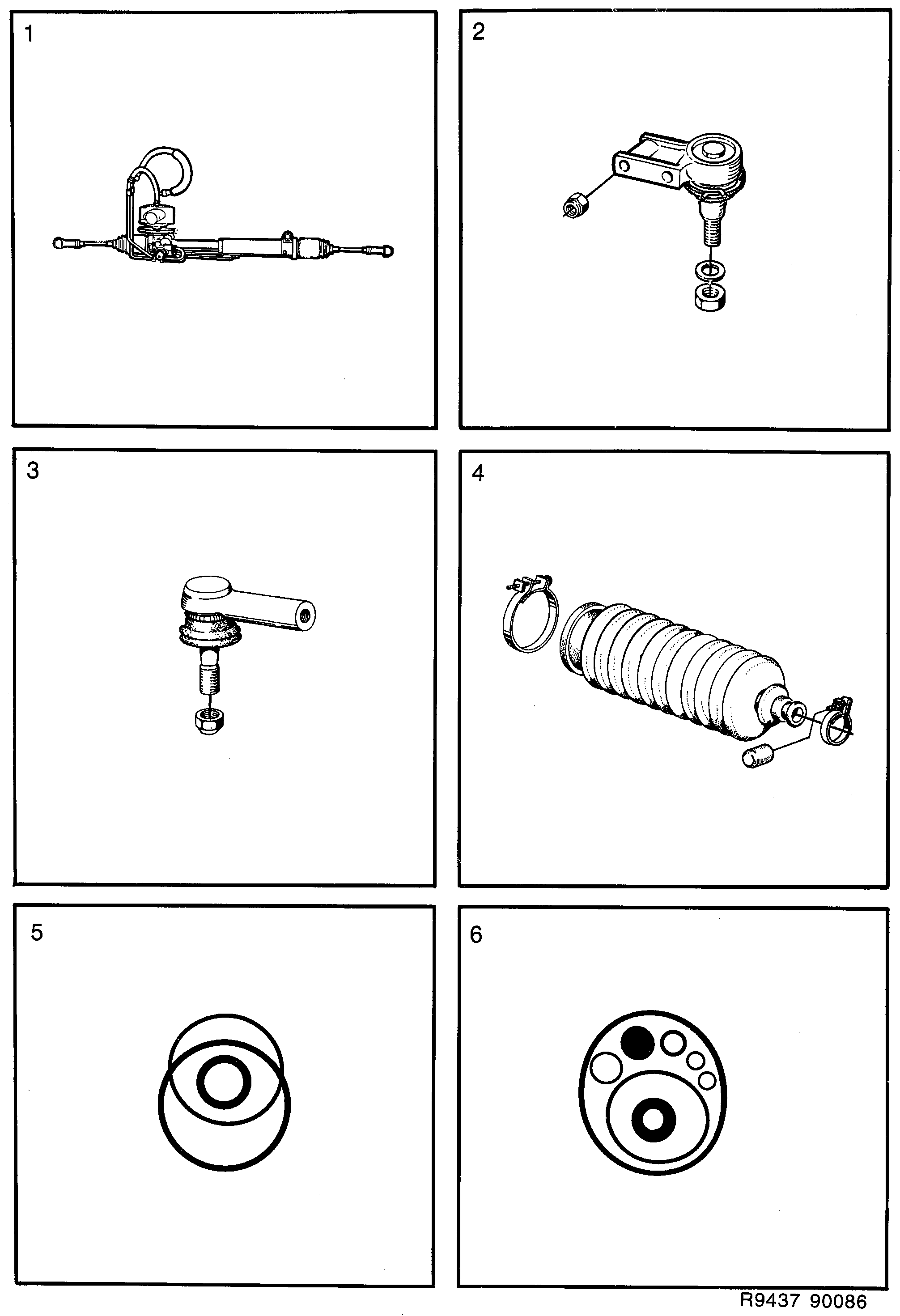

Group 6 Front wheel suspension, section 310
| Pos | Article | Part No. |
|---|---|---|
| 1 | Steering gear kit | 8993354 (replaces 7874316) |
| Steering box | 9106295 | |
| Screw | 8934242 | |
| Washer | 8934259 | |
| Nut | 92153201 (replaces 7971765) | |
| Nut | 7967979 | |
| Pump, hydraulic oil | 9101577 | |
| Pulley | 8986051 | |
| Hose clamp | 7970049 (replaces 7963507) | |
| Hose | 8942575 | |
| Hose | 8948333 | |
| Hose clamp | 92153077 (replaces 7970130) | |
| Sleeve | 8944001 | |
| V-belt | 9361791 | |
| Bracket | 9325705 | |
| Brace | 9325713 | |
| Spacer ring | 9324914 | |
| Screw | 7967946 | |
| Screw | 8148215 (replaces 8083156) | |
| Washer | 9338542 | |
| Nut | 8151094 | |
| Screw | 8082927 | |
| Oil | 32025040 (replaces 8937617) | |
| 1 | Steering gear kit | 8993552 |
| Nut | 9105735 | |
| 2 | End piece | 8993321 |
| End piece | 8993321 (replaces 8985384) | |
| Nut set | 8993677 | |
| Screw | 8990012 | |
| 3 | Drag link end | 8993354 |
| Drag link end | 8985160 | |
| Lock nut | 8151482 | |
| 3 | Drag link end | 8993560 |
| Drag link end | 8990178 | |
| 4 | Bellows kit | 8947913 |
| Bellows | 8926743 | |
| Clamp | 8926768 | |
| Clamp | 8920183 | |
| Cover | 8920191 | |
| 5 | Gasket kit | 8989857 |
| 6 | Gasket kit | 8989840 |
