Saab 900 1990-1993 Front end Steering device

Group 6 Front wheel suspension, section 290

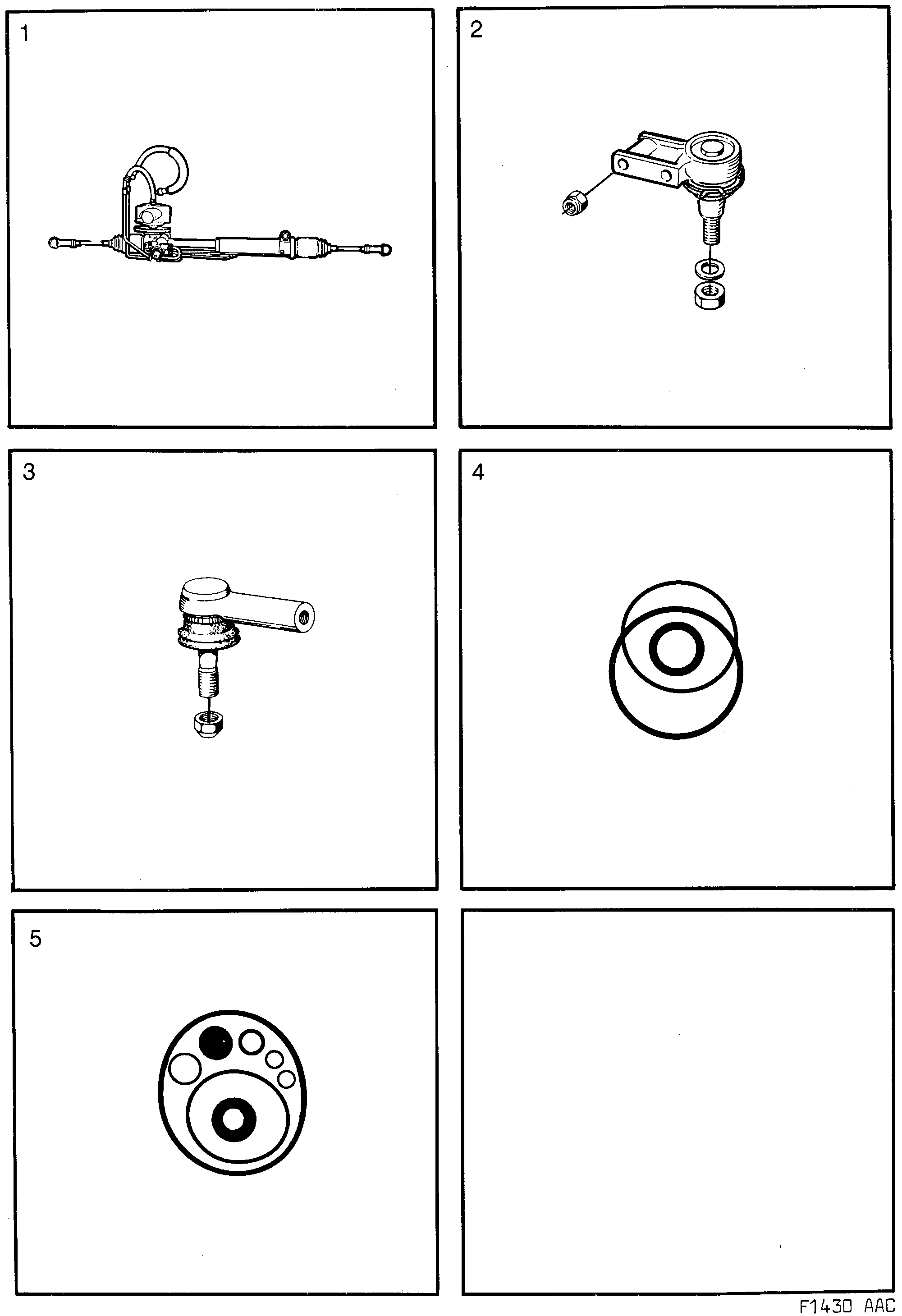

Saab 900 Front end Steering device diagram

Pos	Article	Part No.
1	Steering gear kit	8993552
	Steering box	9106295
	Screw	8934242
	Washer	8934259
	Nut	92153201 (replaces 7971765)
	Nut	7967979
	Pump, hydraulic oil	9101577
	Pulley	8986051
	Hose clamp	7970049 (replaces 7963507)
	Hose	8942575
	Hose	8948333
	Hose clamp	92153077 (replaces 7970130)
	Sleeve	8944001
	V-belt	9361791
	Bracket	9325705
	Brace	9325713
	Spacer ring	9324914
	Screw	7967946
	Screw	8148215 (replaces 8083156)
	Washer	9338542
	Nut	9105735
	Screw	8082927
	Oil	32025040 (replaces 8937617)
2	End piece	8993321
	End piece	8993321 (replaces 8985384)
	Nut set	8993677
	Screw	8990012
3	Drag link end	8993560
	Drag link end	8990178
	Lock nut	8151482
4	Gasket kit	8989857
4	Sealing kit	4104766
	O-ring	4104709
	O-ring	4104717
	O-ring	4104725
	O-ring	4104733
	Seal	5336441
5	Gasket kit	8989840
