Saab 900 1990-1993 Pump, hydraulic oil

Group 6 Front wheel suspension, section 260

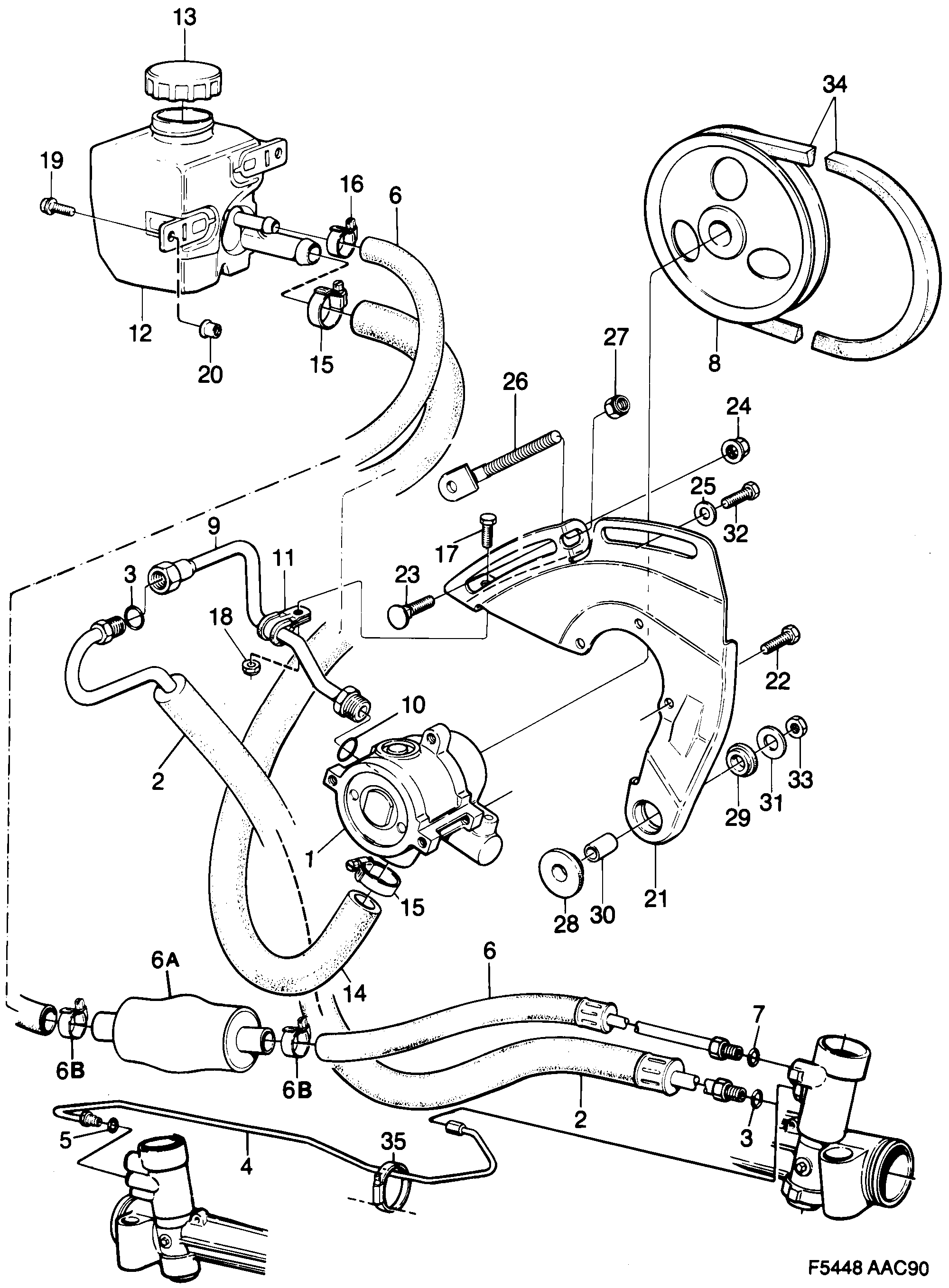

Saab 900 Pump, hydraulic oil diagram

Pos	Article	Part No.
1	Pump, hydraulic oil	4647442 (replaces 9101585)
1	Pump, hydraulic oil	4647442 (replaces 4106704)
2	Hose	8942575
3	O-ring	4104048 (replaces 8937500)
3	O-ring	4104048
4	Delivery pipe	8940678
5	O-ring	7977580
6	Hose	8985830
6	Hose	4194577
6	Hose	4199519
6	Hose	4199527 (replaces 8985848)
6	Hose	4199527
6A	Filter	4194445
6B	Hose clamp	7970049
8	Pulley	8985947
9	Junction pipe	9102559
11	Clamp	7969363
12	Reservoir	8986069
12	Reservoir	9104555
13	Cover	4197380 (replaces 8956385)
13	Cover	4197380
14	Hose	9103201
15	Hose clamp	7970072 (replaces 7963531)
15	Hose clamp	7970072
16	Hose clamp	7970049 (replaces 7963507)
17	Screw	8019911
18	Lock nut	92150265 (replaces 8073512)
19	Screw	7974694
20	Nut	9223082
21	Bracket	7547482
22	Screw	8082935
23	Screw	9369844
24	Nut	11900429 (replaces 7967953)
25	Washer	55564926 (replaces 8073249)
25	Washer	92153033 (replaces 8029985)
25	Washer	32000432 (replaces 9166372)
26	Screw	4283198 (replaces 7512247)
26	Screw	4283198
27	Nut	11900440 (replaces 8074288)
28	Rubber bushing	9365909
29	Rubber bushing	9365917
30	Sleeve	8356859
31	Washer	8073124
32	Screw	8082943
32	Screw	55562873 (replaces 8082968)
32	Screw	9166331
34	V-belt	93167214 (replaces 8339921)
34	Belt	93185053
35	Hose clamp	92153077 (replaces 7970130)
	Gasket kit	8989857
	Sealing kit	4104766
