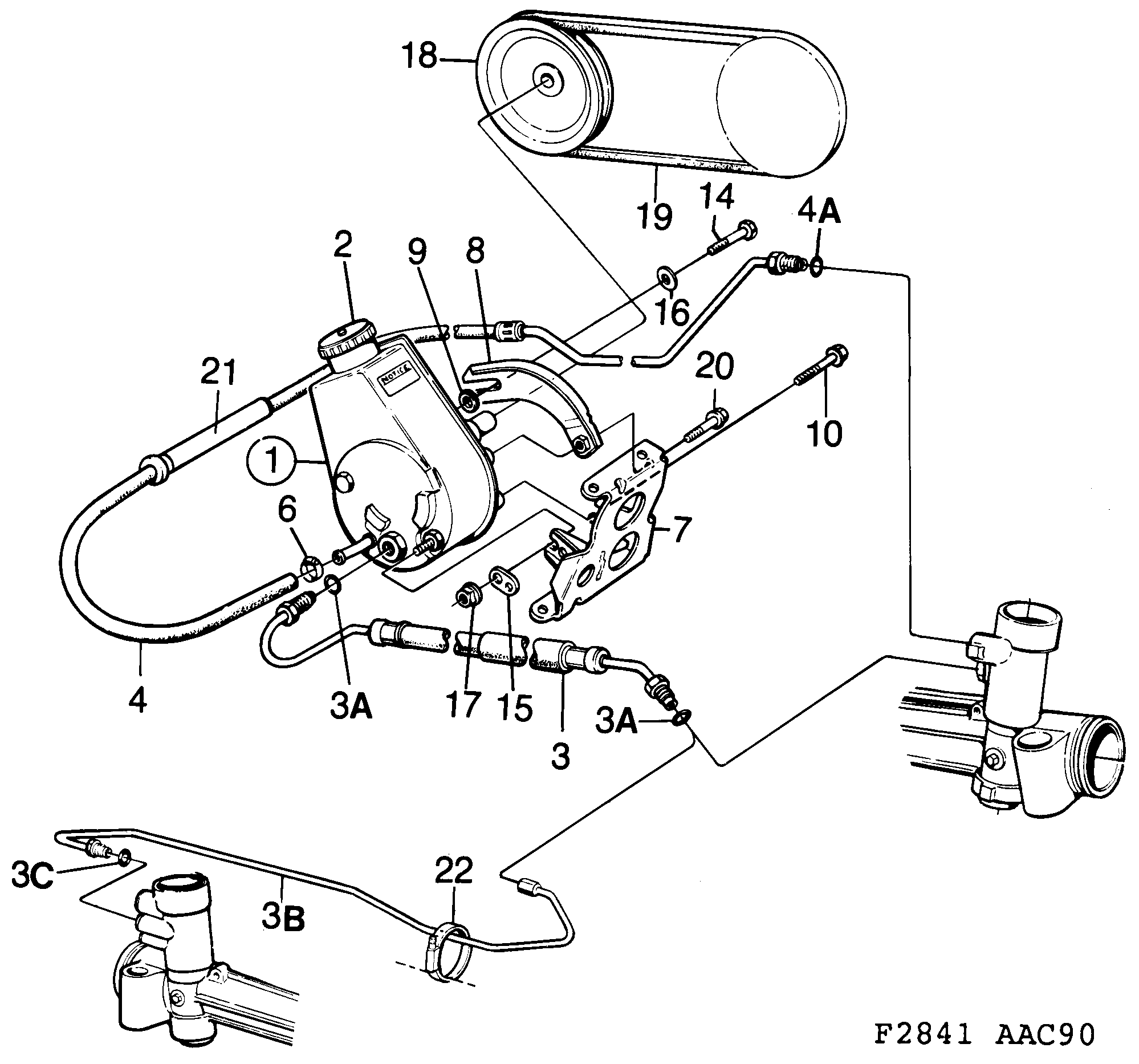

Group 6 Front wheel suspension, section 230
| Pos | Article | Part No. |
|---|---|---|
| 1 | Pump, hydraulic oil | 9101577 |
| 2 | Cover | 8943979 |
| 3 | Hose | 8942575 |
| 3A | O-ring | 4104048 (replaces 8937500) |
| 3A | O-ring | 4104048 |
| 3B | Delivery pipe | 8940678 |
| 3C | O-ring | 7977580 |
| 4 | Hose | 8948333 |
| 4 | Hose | 8948341 |
| 6 | Hose clamp | 7970049 (replaces 7963507) |
| 7 | Bracket | 9325705 |
| 8 | Brace | 9325713 |
| 9 | Spacer ring | 9324914 |
| 10 | Screw | 7967946 |
| 14 | Screw | 8148215 |
| 15 | Washer | 9338542 |
| 16 | Washer | 8073108 |
| 17 | Nut | 7967979 |
| 18 | Pulley | 8986051 |
| 19 | V-belt | 9361791 |
| 20 | Screw | 8082927 |
| 21 | Sleeve | 8944001 |
| 22 | Hose clamp | 92153077 (replaces 7970130) |
| Gasket kit | 8989840 |
