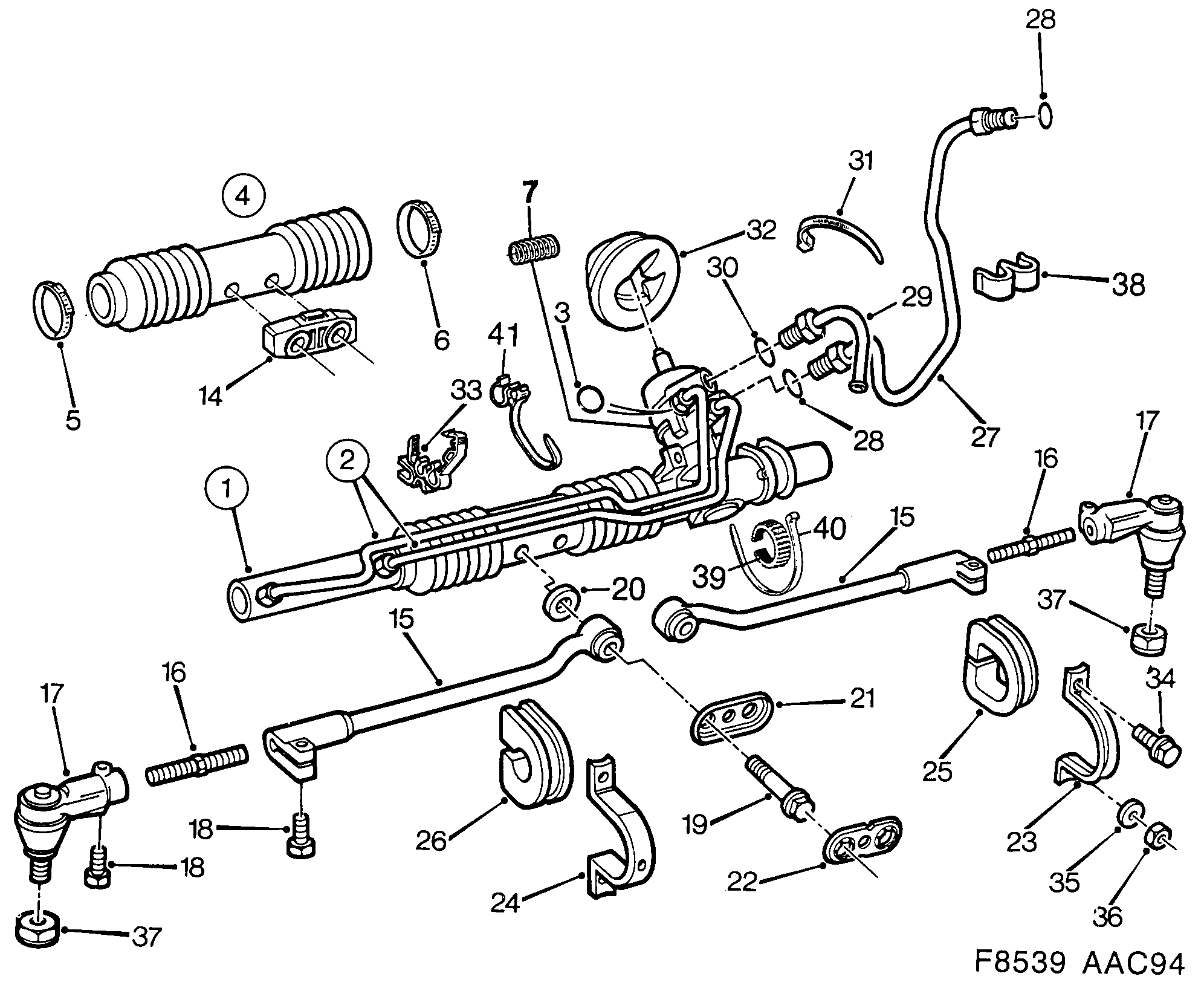

Group 6 Front wheel suspension, section 210
| Pos | Article | Part No. |
|---|---|---|
| 1 | Power steering gear | 4242806 (replaces 4482899) |
| 1 | Power steering gear | 4242806 (replaces 4544623) |
| 1 | Power steering gear | 4648697 |
| 1 | Power steering gear | 4242806 (replaces 4482907) |
| 1 | Power steering gear | 4648705 |
| 2 | Pipe set | 4482949 |
| 2 | Pipe set | 30557106 (replaces 4402756) |
| 2 | Pipe set | 4482956 |
| 2 | Pipe set | 30557108 (replaces 4402764) |
| 3 | O-ring | 4482915 |
| 3 | O-ring | 30557107 (replaces 4402731) |
| 4 | Bellows kit | 4482964 |
| 4 | Bellows kit | 30553357 (replaces 4402772) |
| 5 | Clamp | 4482923 |
| 6 | Clamp | 4482931 |
| 6 | Clamp | 30557109 (replaces 4402749) |
| 7 | Spring | 4905535 |
| 7 | Spring | 4905543 |
| 7 | Spring | 4905550 |
| 14 | Deflection limiter | 4482972 |
| 15 | Steering rod | 4242673 |
| 15 | Steering rod | 4242681 |
| 16 | Adjustment screw | 4242731 |
| 17 | Drag link end | 4242749 |
| 17 | Drag link end | 4242756 |
| 18 | Hexagon screw | 4685103 (replaces 4345252) |
| 18 | Hexagon screw | 4685103 |
| 19 | Hexagon screw | 90334255 (replaces 4242715) |
| 20 | Washer | 90086730 (replaces 4242699) |
| 21 | Spacer plate | 4242707 |
| 22 | Lock plate | 4242723 |
| 23 | Brace | 90334562 (replaces 4242830) |
| 24 | Brace | 90121248 (replaces 4242822) |
| 25 | Bearing ring | 4242806 |
| 26 | Bearing ring | 4247326 |
| 26 | Bearing ring | 4242814 |
| 27 | Delivery pipe | 4242772 |
| 27 | Delivery pipe | 4543161 |
| 27 | Delivery pipe | 4647087 |
| 28 | O-ring | 4104048 |
| 29 | Return pipe | 4482634 |
| 29 | Return pipe | 4242764 |
| 29 | Return pipe | 4482642 |
| 29 | Return pipe | 4247219 |
| 31 | Tie strap | 11900513 (replaces 7971880) |
| 32 | Seal | 4247292 |
| 32 | Seal | 32000168 (replaces 4402657) |
| 33 | Clip | 4482659 |
| 33 | Clip | 4242863 |
| 34 | Hexagon screw | 11900367 (replaces 7978216) |
| 34 | Hexagon screw | 4087631 |
| 35 | Washer | 92153033 (replaces 8029985) |
| 36 | Nut | 11900440 (replaces 8074288) |
| 36 | Nut | 92150143 (replaces 7971922) |
| 37 | Lock nut | 90304096 (replaces 4345567) |
| 38 | Clip | 4242780 |
| 39 | Wear protection | 4443263 |
| 41 | Tie strap | 30507607 (replaces 7593221) |
