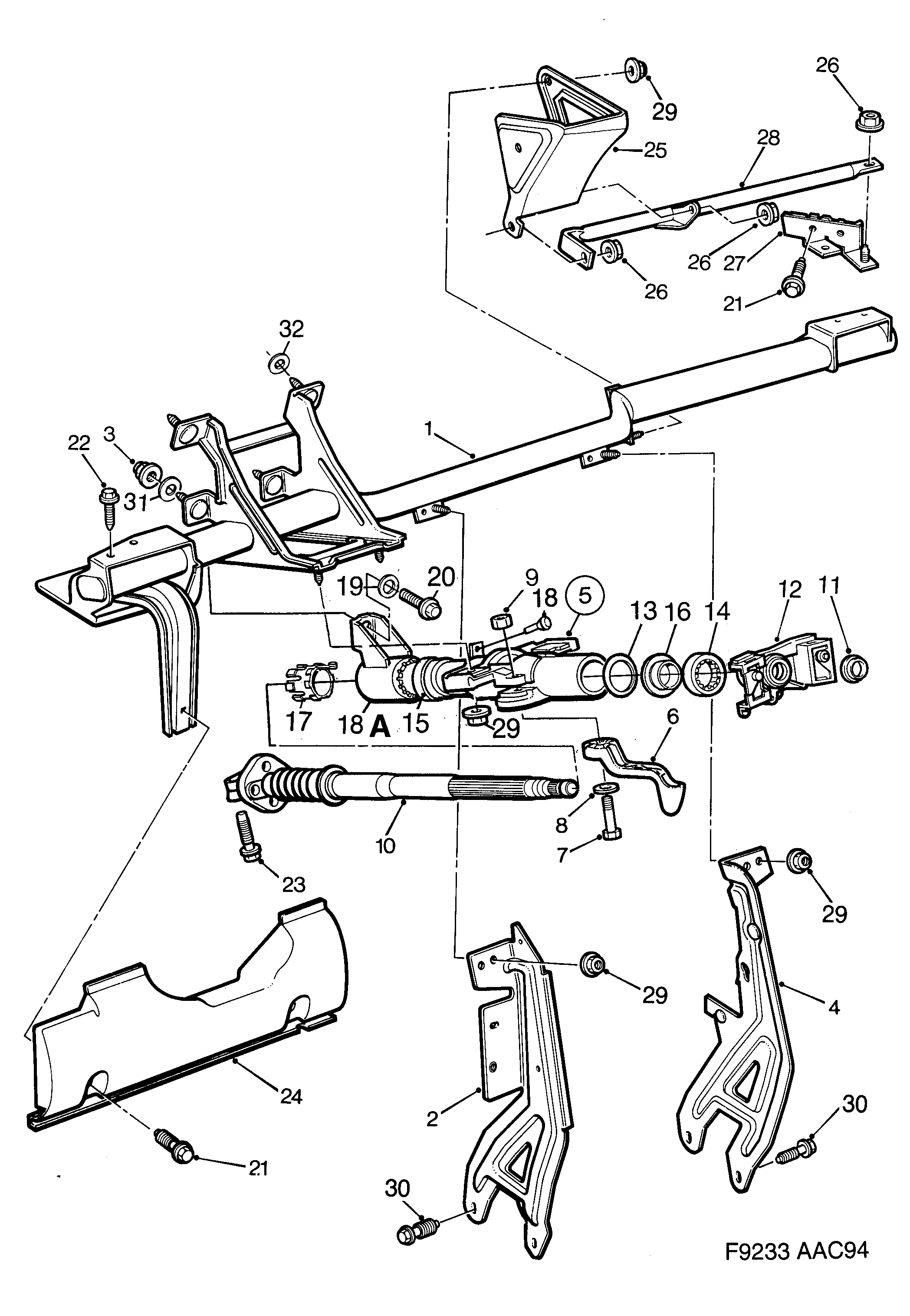

Group 6 Front wheel suspension, section 180
| Pos | Article | Part No. |
|---|---|---|
| 1 | Steering wheel member | 5010400 (replaces 4233409) |
| 1 | Steering wheel member | 5010400 (replaces 4507059) |
| 1 | Steering wheel member | 5010400 |
| 1 | Steering wheel member | 4379582 |
| 2 | Support | 4414868 |
| 2 | Support | 4505756 |
| 2 | Support | 4505889 |
| 3 | Nut | 90191908 (replaces 4345419) |
| 4 | Support | 30550991 (replaces 4414827) |
| 4 | Support | 4233318 |
| 5 | Steering column | 4534491 (replaces 4379194) |
| 5 | Steering column | 4534491 (replaces 4531240) |
| 5 | Steering column | 4804050 (replaces 4505699) |
| 5 | Steering column | 4804050 (replaces 4532222) |
| 5 | Steering column | 4534491 (replaces 4534624) |
| 5 | Steering column | 4804050 |
| 5 | Steering column | 5207352 (replaces 4842860) |
| 6 | Handle | 5170501 (replaces 4232963) |
| 7 | Hexagon screw | 5018536 (replaces 8021966) |
| 8 | Washer | 7981954 |
| 9 | Lock nut | 92150265 (replaces 8073512) |
| 10 | Steering shaft | 4845715 |
| 10 | Steering shaft | 4842902 |
| 11 | Lock ring | 8954281 |
| 11 | Lock ring | 5016779 (replaces 5010194) |
| 12 | Bearing housing | 5010186 (replaces 4460739) |
| 12 | Bearing housing | 5010186 (replaces 4505715) |
| 13 | Disc spring | 5335658 (replaces 4505723) |
| 14 | Ball bearing | 4903985 (replaces 8950701) |
| 15 | Spacer ring | 4631719 |
| 16 | Plastic bushing | 4460721 |
| 17 | Bearing | 4849337 |
| 18 | Rubber plug | 7035801 |
| 18A | Bracket | 4902292 |
| 19 | Washer | 7061328 |
| 20 | Hexagon screw | 4346466 |
| 20 | Screw | 7982986 |
| 21 | Screw | 11900353 (replaces 7978091) |
| 22 | Screw | 7399330 |
| 23 | Hexagon screw | 4087631 |
| 24 | Knee pad | 4414611 |
| 24 | Knee pad | 4505749 |
| 24 | Knee pad | 4534491 |
| 24 | Knee pad | 4842985 |
| 25 | Knee pad | 30550989 (replaces 4414694) |
| 26 | Nut | 11900451 (replaces 7977929) |
| 27 | Bracket | 4474367 |
| 28 | Tube | 30550990 (replaces 4414702) |
| 29 | Nut | 92150143 (replaces 7971922) |
| 30 | Screw | 7972466 |
| 31 | Seal | 4345724 |
| 32 | Washer | 4345344 |
