Saab 900 1994-1998 Front wheel suspension

Group 6 Front wheel suspension, section 120

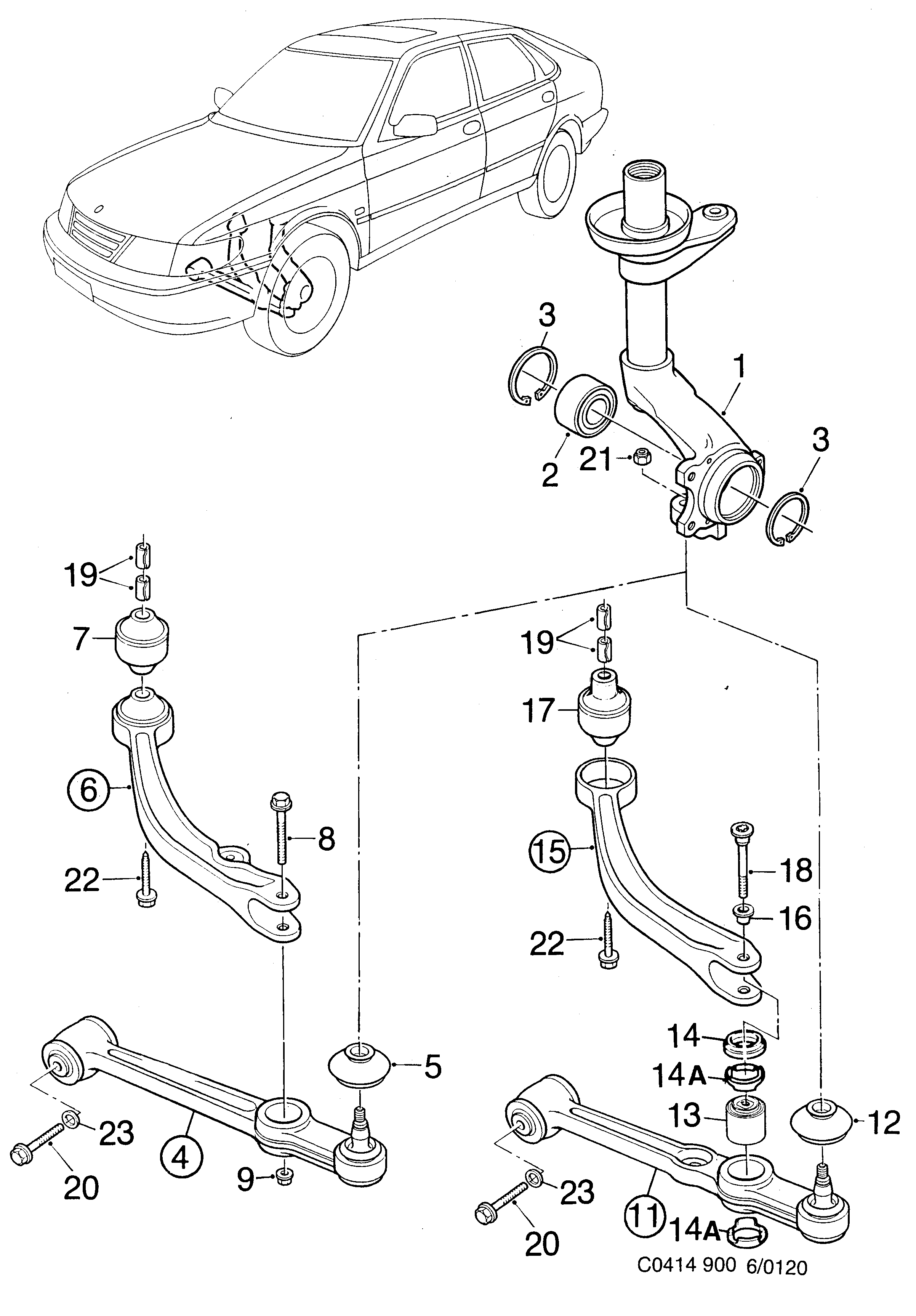

Saab 900 Front wheel suspension diagram

Pos	Article	Part No.
1	Steering knuckle housing	4249413
1	Steering knuckle housing	4249405
2	Angular contact ball brg.	4689923 (replaces 4242202)
2	Angular contact ball brg.	4689923
3	Snap ring	4345450
4	Arm	4248431
4	Arm	4248449
5	Bellows kit	8993867
6	Stanchion	4483798
6	Stanchion	4483806
6	Kit	8993958
6	Stanchion	4544995
6	Stanchion	4545000
7	Bushing	4483293
7	Bushing	4544987
8	Screw	7974819
9	Nut	92153201 (replaces 7979552)
11	Arm	4543450
11	Arm	4543468
13	Bushing	4545711
14	Seal	4646089
14A	Clip kit	5330196
15	Stanchion	4543476
15	Stanchion	4543484
15	Stanchion	4647004
15	Stanchion	4647012
16	Press nut	4645164
17	Bushing	4482402
18	Screw	4645156
19	Spring sleeve	4246062
20	Screw	7984933
21	Nut	7979578
23	Washer	11011199 (replaces 8073116)
