Saab 900 1990-1993 Front wheel suspension

Group 6 Front wheel suspension, section 110

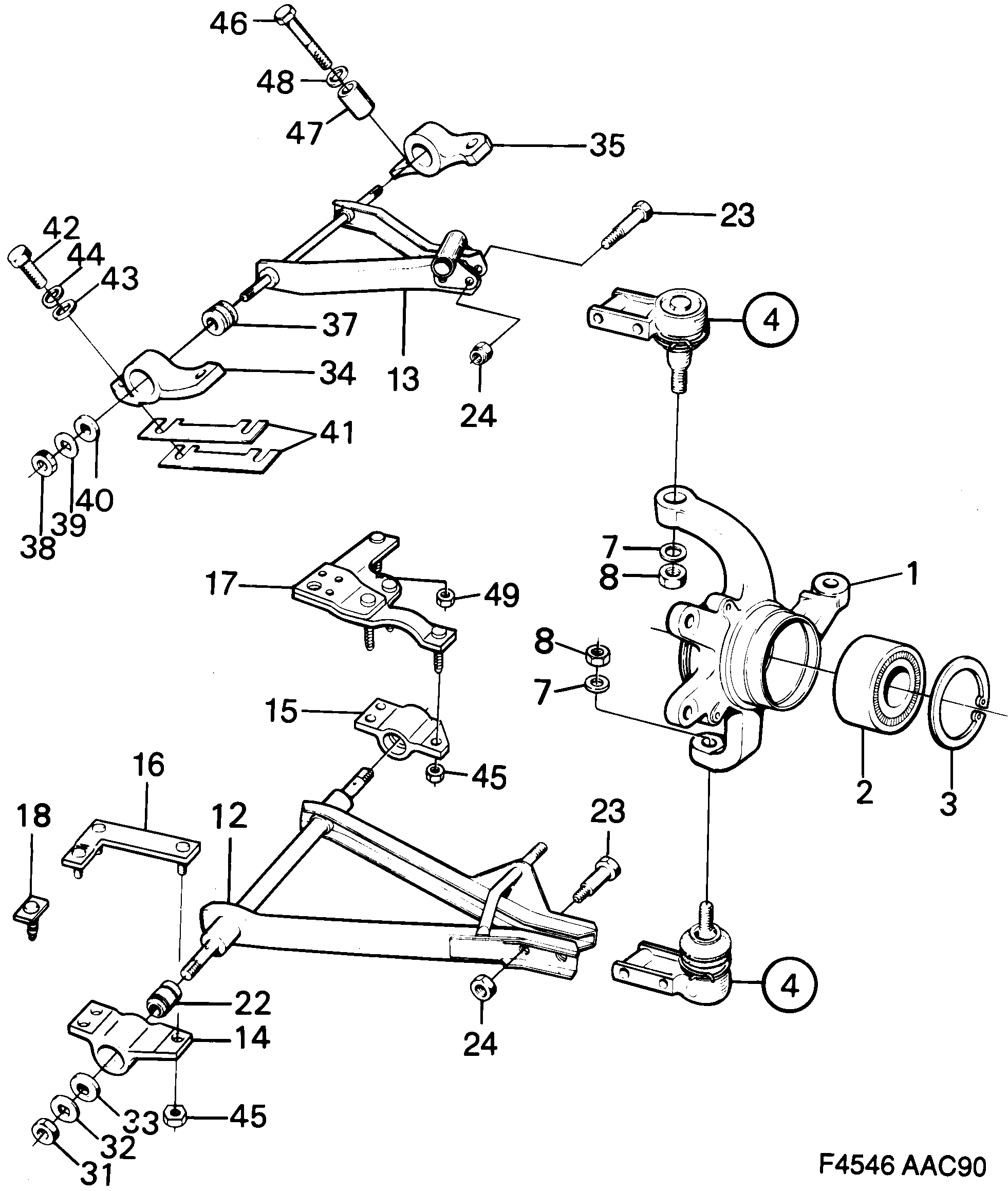

Saab 900 Front wheel suspension diagram

Pos	Article	Part No.
1	Steering knuckle housing	9101031
1	Steering knuckle housing	9101049
1	Steering knuckle housing	9102096
1	Steering knuckle housing	9102104
2	Angular contact ball brg.	30520278 (replaces 9104209)
3	Snap ring	7972581
4	End piece	8993321
7	Washer	8073124
8	Lock nut	7918733
12	Swivel arm	4199576
12	Swivel arm	4199584
13	Swivel arm	8941015
13	Swivel arm	8941023
14	Bearing anchorage	8933970
14	Bearing anchorage	8933988
15	Bearing anchorage	8934002
15	Bearing anchorage	8934010
16	Bracket	8939274
16	Bracket	8939282
17	Bracket	8935736
17	Bracket	8935744
18	Bracket	6938823
18	Bracket	6938856
22	Bushing	7184443
23	Screw	8990012
24	Lock nut	7969306
31	Nut	7904113
32	Lock washer	7071939
33	Washer	7070642
34	Bearing anchorage	7175441
35	Bearing anchorage	7175433
35	Bearing anchorage	7337330
35	Bearing anchorage	7337348
37	Bushing	7163603
38	Nut	7904097
39	Lock washer	7070626
40	Washer	7070667
41	Shim	7071061
41	Shim	7071079
41	Shim	7071087
42	Screw	7978794
42	Screw	92153206 (replaces 7978307)
42	Screw	55557006 (replaces 7978323)
43	Washer	8073108
44	Spring washer	8802175
45	Nut	92153201 (replaces 7971765)
46	Screw	92151521 (replaces 8083222)
46	Screw	92151521 (replaces 7982549)
46	Screw	92151523 (replaces 7982564)
47	Spacer tube	8941403
49	Lock nut	7977812
