Saab 900 1986-1989 Brakes

Group 5 Brakes, section 580

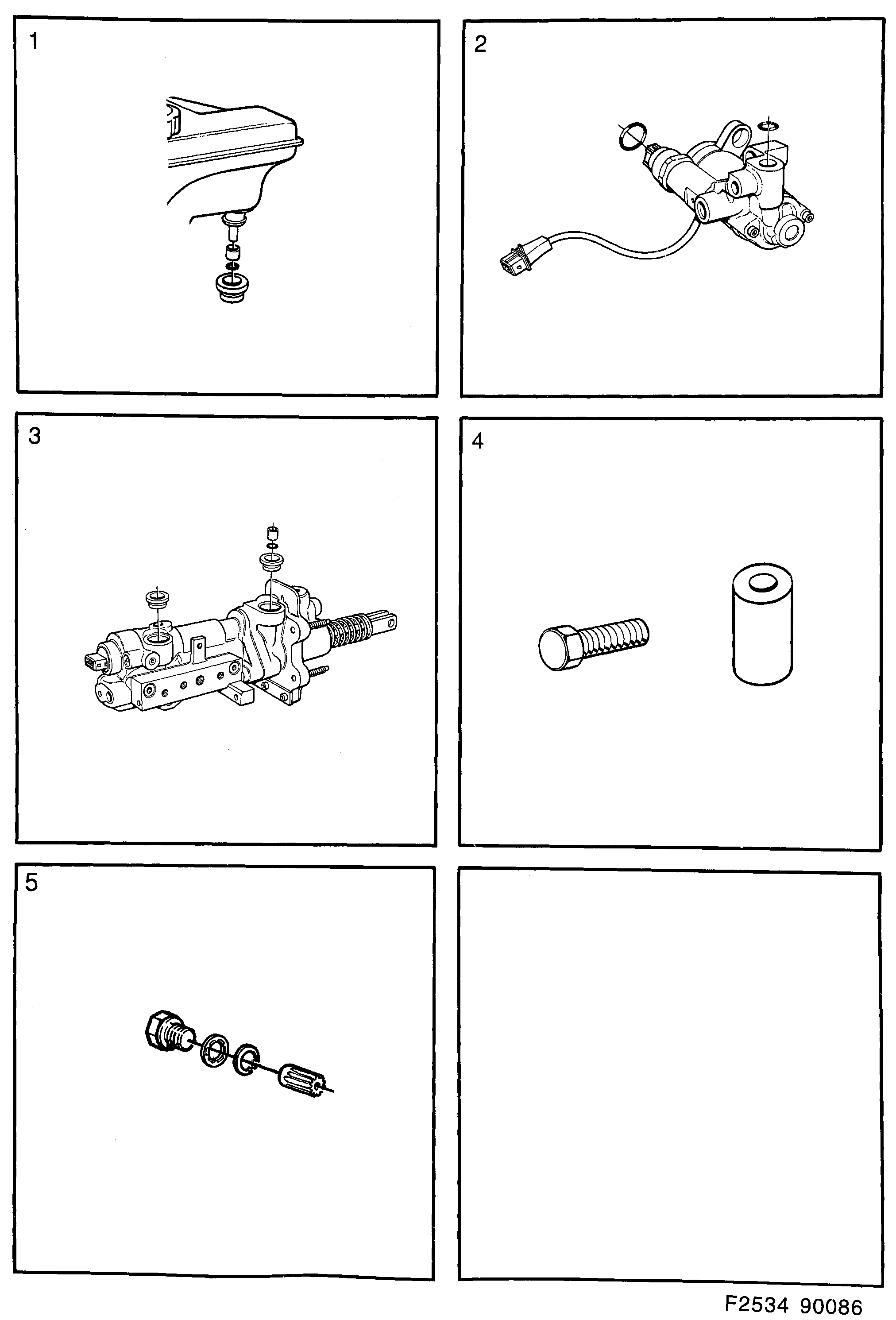

Saab 900 Brakes diagram

Pos	Article	Part No.
1	O-ring kit	8967390
	O-ring	8966681
	Sleeve	8966939
2	Pump kit	4002887
	Pump motor	4003091
	O-ring	8967234
3	Master cylinder kit	4002879
	Master cylinder	9104787
	Rubber bushing	4482568 (replaces 8966335)
4	Screw kit	32000324 (replaces 9105115)
	Sleeve	8967374
	Screw	8967382
5	Adjuster kit	4107793
	Washer	4107801
	Adjustment screw	4107793 (replaces 8955304)
	Screw	8955312
	Stop ring	4107793 (replaces 8970147)
