Saab 900 1986-1989 Brakes

Group 5 Brakes, section 550

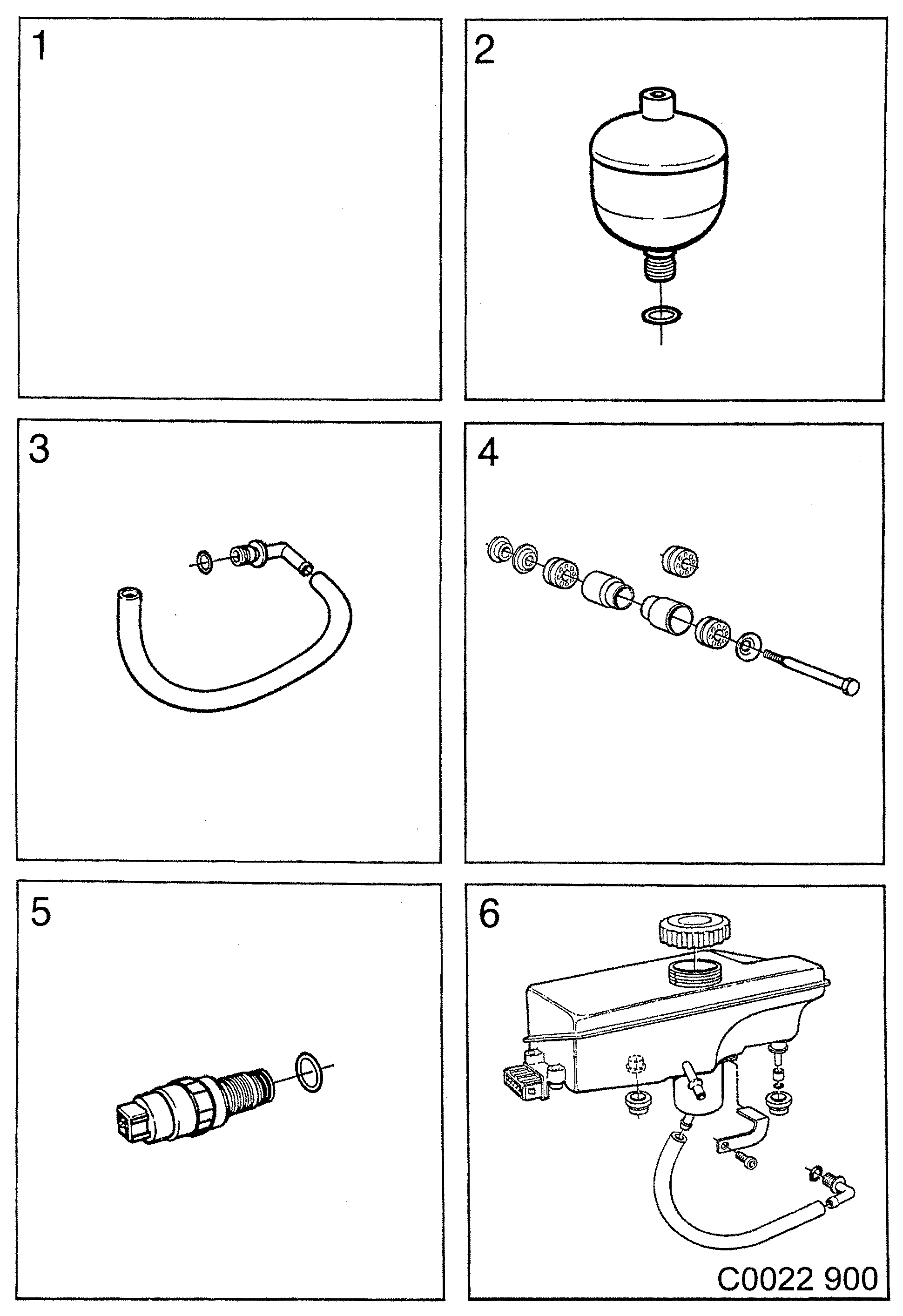

Saab 900 Brakes diagram

Pos	Article	Part No.
2	Accumulator	4002267
	Accumulator	4001814
	O-ring	8967234
	Label	8966707
3	Hose kit	4002861
	Hose	9104746
	Nipple	9104738
	O-ring	4003117
4	Suspension kit	4002895
	Suspension	8966236
	Suspension	9104811
	Screw	9104829
	Washer	8966251
	Sleeve	9104944
	Spacer	4003083
5	Pressure monitor	8967309
	Pressure monitor	8966160
	O-ring	8967325
6	Reservoir	4000279
	Reservoir	9104753
	Screw	8966368
	Cover	8966152
	Holder	9104993
	Rubber bushing	4482568 (replaces 8966335)
	O-ring kit	8967390
