Saab 900 1986-1989 Brakes

Group 5 Brakes, section 490

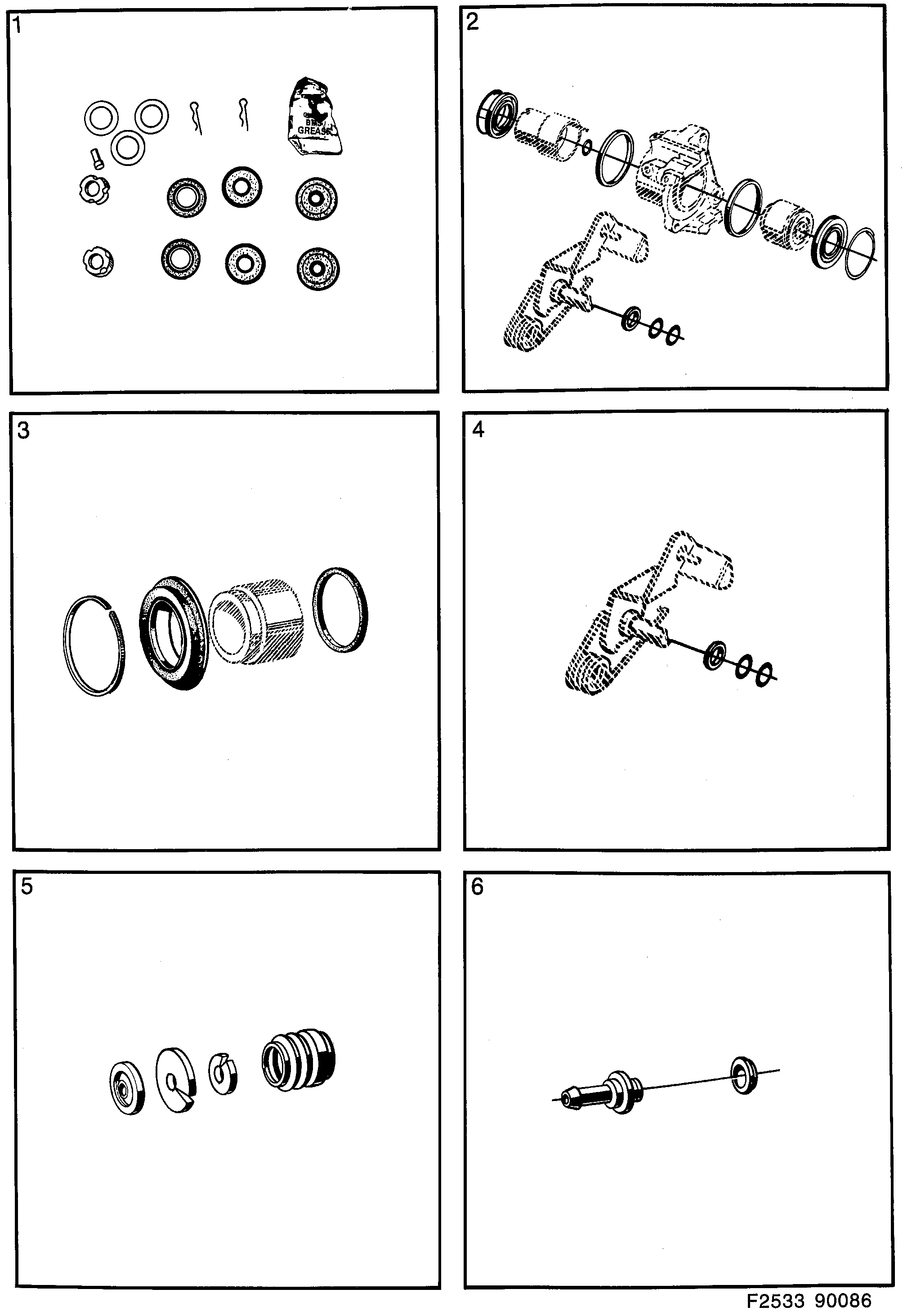

Saab 900 Brakes diagram

Pos	Article	Part No.
1	Sealing kit	8994972
	Sealing ring	8928251
	Sealing ring	8928228
	Support washer	8928236
	Support ring	8928210
	Lock ring	8928376
	Pin	8928434
	Gasket	8928426
1	Sealing kit	8965329
	Piston	8965782
	Gasket	8986911
	Seal	8986986
	Sealing ring	8987018
	Seal	8986994
	Pin	8965808
2	Gasket kit	8993255
	Master seal	8985533
	Bracket	8925547
	Seal	8925539
	Seal	8925562
	Sealing kit	8994535
3	Gasket kit	8994840
	Sealing ring	8932246
	Master seal	8932279
	Sealing retainer	8908527
4	Sealing kit	8993727
	Seal	8925828
	Seal	8925869
	Seal	8925851
5	Sealing kit	8910705
	Seal	8929010
	Air filter	8928996
	Muffler	8929002
	Bellows	8928541
6	Check valve	8993115
	Check valve	8941718
