Saab 900 1988-1989 Parking brake system

Group 5 Brakes, section 430

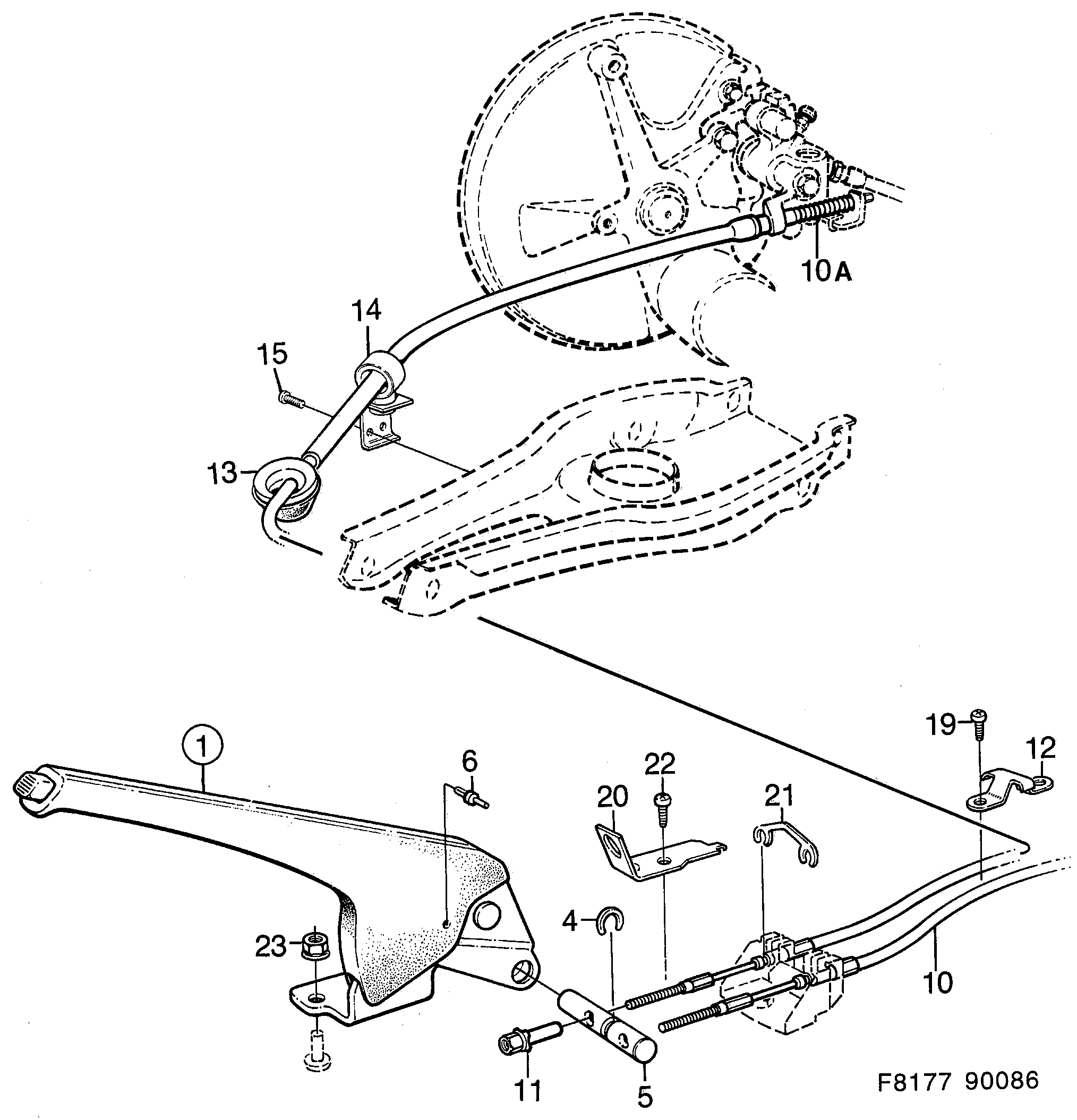

Saab 900 Parking brake system diagram
PosArticlePart No.
1Parking brake lever4103206
4Snap ring9101239
6Pop rivet9708066
10Parking brake cable9101445
10Parking brake cable30539230 (replaces 9104134)
10ABellows8954455
11Adjusting nut9101221
12Clamp9101528
13Grommet9105651
14Bracket8967655
15Screw7972805
20Bracket9101817
21Clamp9101833
23Nut11900429 (replaces 7967953)
