Saab 900 1986-1987 Parking brake system

Group 5 Brakes, section 400

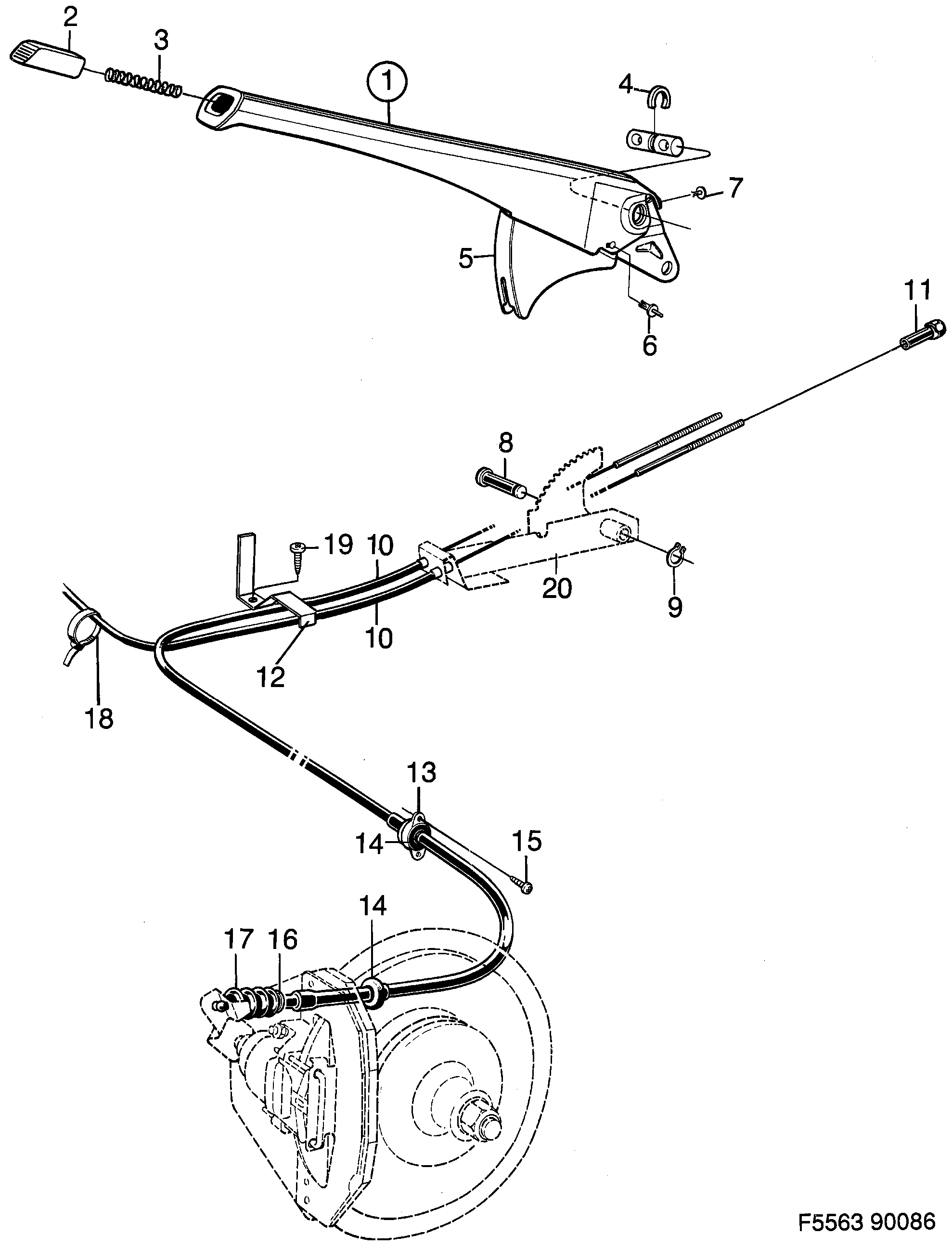

Saab 900 Parking brake system diagram

Pos	Article	Part No.
1	Parking brake lever	8946964
2	Push button	8946691
3	Spring	7180607
4	Snap ring	8946659
5	Cover	9706383
6	Pop rivet	9708066
7	Plastic plug	8985038
8	Bolt	8946709
9	Snap ring	7915093
10	Parking brake cable	8937898
11	Adjusting nut	8985459
12	Clamp	8947574
13	Bracket	8908121
14	Ring	8908139
15	Screw	7922891
17	Bellows	8927923
18	Tie strap	11900513 (replaces 7971880)
19	Screw	7972805
