Saab 900 1990-1993 Brakes

Group 5 Brakes, section 380

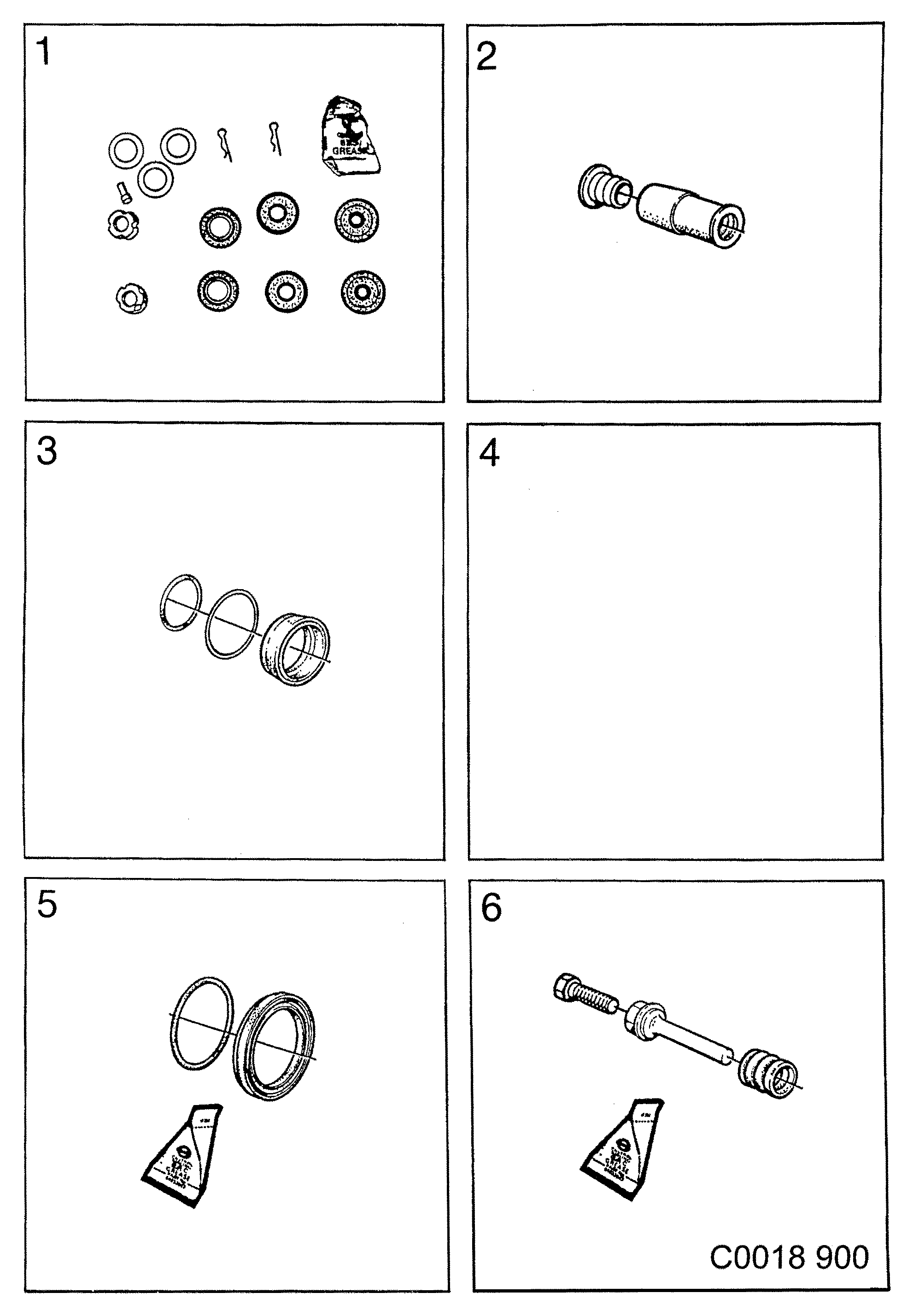

Saab 900 Brakes diagram

Pos	Article	Part No.
1	Sealing kit	8965329
	Piston	8965782
	Seal	8986994
	Seal	8986986
	Pin	8965808
	Sealing ring	8987018
	Gasket	8986911
2	Guide	4467064 (replaces 8955445)
	Bushing	8955452
	Sleeve	8955460
	Cover	8955478
3	Gasket kit	8961849
	Seal	8955288
	Boot	8955296
	Ring	8955239
5	Gasket kit	8961799
	Boot	8955056
	Seal	8955064
	Grease	8955155
6	Bellows kit	8961807
	Screw	8955122
	Slide pin	8961807 (replaces 8955114)
	Protecting casing	8955130
	Grease	8955148
