Saab 900 1986-1989 Brake lines ABS rear

Group 5 Brakes, section 340

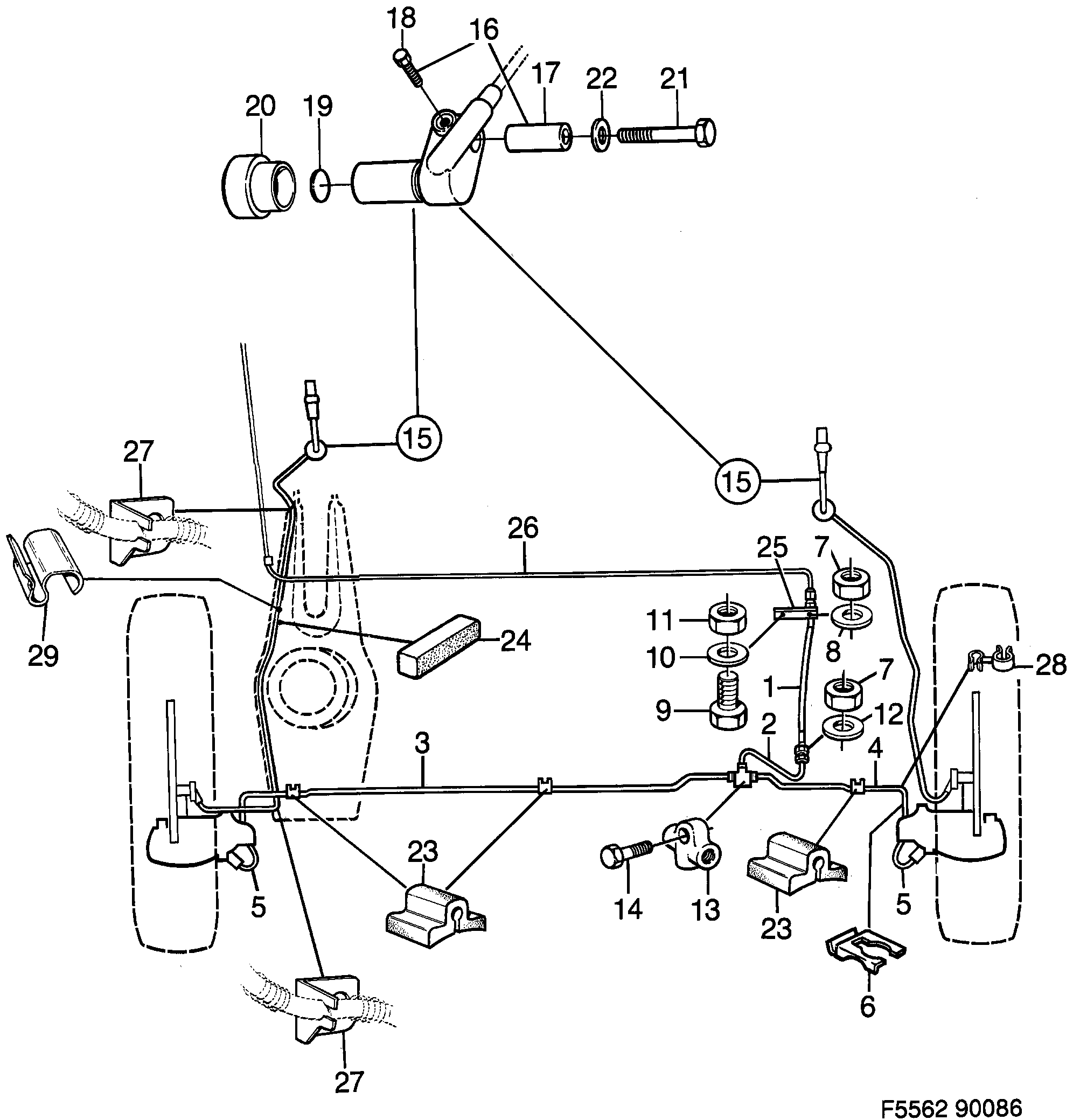

Saab 900 Brake lines ABS rear diagram

Pos	Article	Part No.
1	Brake hose	8931784
2	Brake pipe	9105354
3	Brake pipe	30520298 (replaces 9105032)
4	Brake pipe	9105016
5	Brake hose	9101650
6	Bracket	8952699 (replaces 4104188)
7	Nut	30509371 (replaces 7979511)
8	Washer	7933856
9	Screw	8082935
10	Washer	7311764
11	Nut	8074106
13	T-piece	8964686
14	Screw	55562873 (replaces 8082968)
15	Sensor	9105388
15	Sensor	9105396
16	Screw kit	32000324 (replaces 9105115)
17	Sleeve	8967374
18	Screw	8967382
19	Spacer	32000135 (replaces 4001046)
20	Sleeve	8963019
21	Screw	8021925
22	Washer	8029951
23	Spacer piece	8919490
24	Set ring	8967226
25	Lock plate	8991739
27	Bracket	9105305
27	Bracket	9105313
28	Clamp	7399660
29	Clamp	8931461
