Saab 900 1986-1989 Brake lines ABS front

Group 5 Brakes, section 310

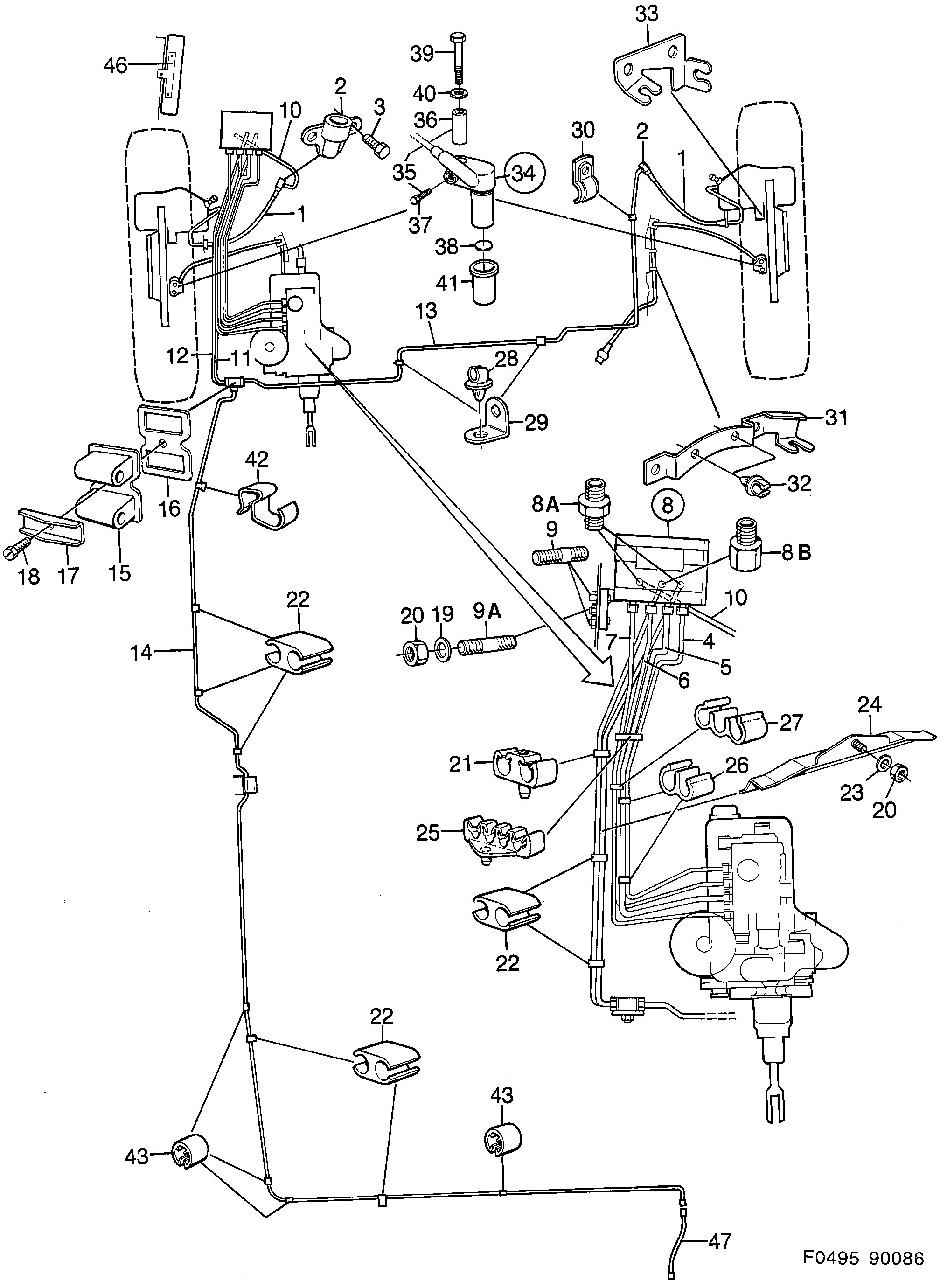

Saab 900 Brake lines ABS front diagram

Pos	Article	Part No.
1	Brake hose	8940819
2	Nipple	8928756
3	Screw	7922891
4	Brake pipe	9104308
5	Brake pipe	9104282
6	Brake pipe	9104266
7	Brake pipe	9104241
8	Valve body	9104951
8A	Connector	8966376
8B	Connector	8966384
9	Stud	4000477
9A	Stud	4000899
10	Brake pipe	9104365
11	Brake pipe	9104324
12	Brake pipe	9104340
13	Brake pipe	8987638
14	Brake pipe	9101734
14	Brake pipe	9196056
15	Nipple	9104399
16	Seal	8933335
17	Stiffening plate	8929671
18	Screw	8097859
19	Washer	7061328
20	Nut	11900440 (replaces 8074288)
21	Tube clamp	8959520
22	Pipe bracket	8908162
23	Washer	7973977
24	Protecting plate	9106097
25	Tube clamp	9106147
26	Tube clamp	12793419 (replaces 9106139)
27	Tube clamp	9106121
28	Clamp	8940132
29	Brace	8940652
30	Tube clamp	8907966
31	Holder	9106741
31	Holder	9106758
32	Clamp	4000543
33	Holder	9106766
33	Holder	9106774
34	Sensor	9105131
34	Sensor	9105149
35	Screw kit	32000324 (replaces 9105115)
36	Sleeve	8967374
37	Screw	8967382
38	Spacer	32000135 (replaces 4001046)
39	Screw	8021925
40	Washer	8029951
41	Sleeve	8965634
42	Clamp	8931461
43	Tube clamp	8965097
