Saab 900 1994-1998 Parking brake system

Group 5 Brakes, section 300

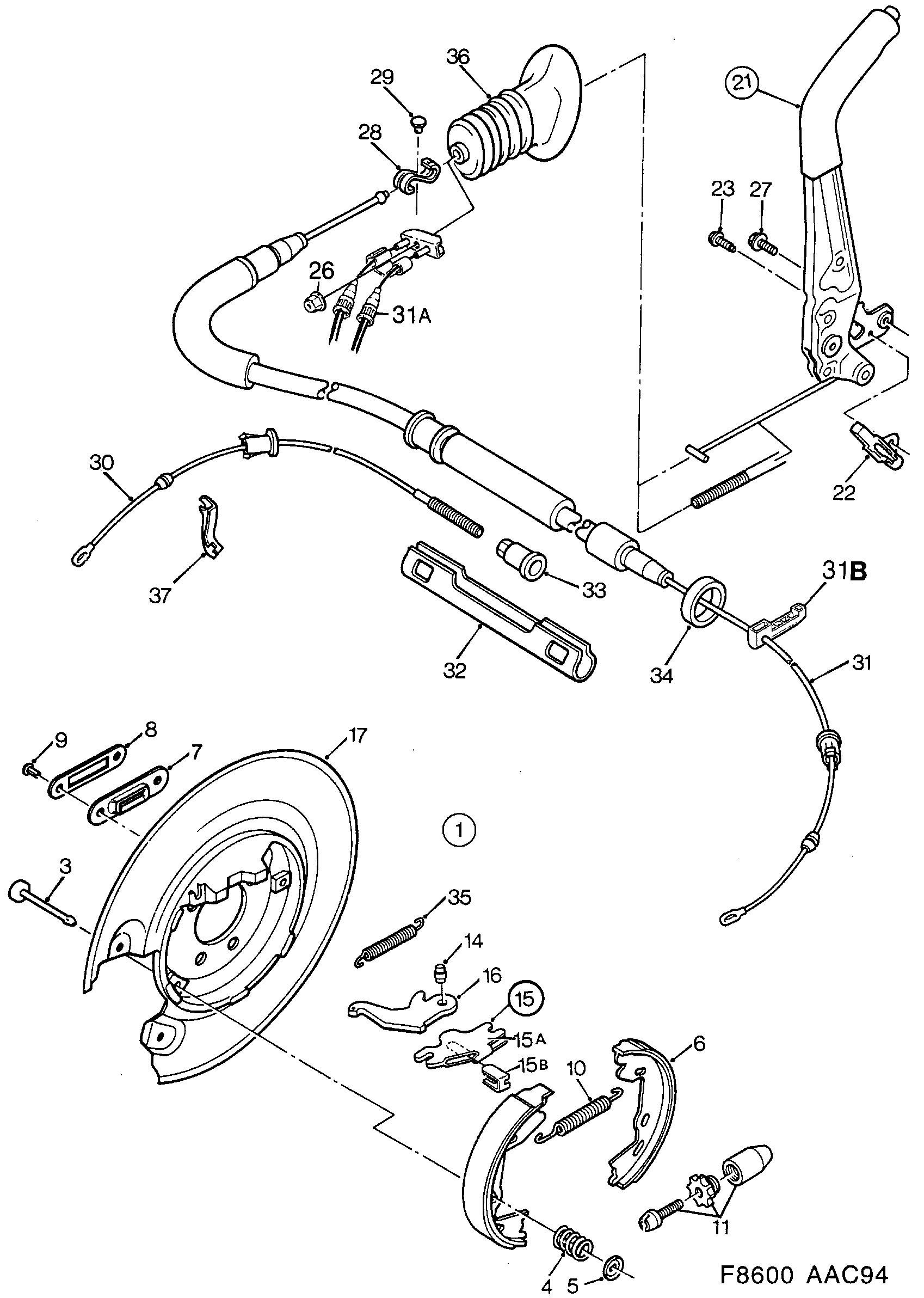

Saab 900 Parking brake system diagram

Pos	Article	Part No.
1	Parking brake	4245601
1	Parking brake	4243440
3	Locking pin	90279209 (replaces 4400198)
4	Compression spring	6681527 (replaces 4400206)
5	Lock plate	6663706 (replaces 4400214)
6	Brake shoe kit	4838660 (replaces 4543419)
6	Brake shoe kit	4838660 (replaces 4544326)
6	Brake shoe kit	4838660
7	Tab	90305309 (replaces 4400230)
8	Dust seal	90305308 (replaces 4400305)
9	Pin	11064071 (replaces 4346771)
10	Spring	90079327 (replaces 4400263)
11	Adjusting kit	8993941
14	Pin	90075839 (replaces 4400248)
15	Shackle	90496947 (replaces 4646832)
15A	Shackle	90496947 (replaces 4400313)
15B	Clip	4836342
16	Lever	90111317 (replaces 4400297)
17	Attaching plate	4400172
17	Attaching plate	4648598
17	Attaching plate	4400180
17	Attaching plate	90538251 (replaces 4648606)
21	Parking brake lever	4241204
21	Parking brake lever	4646030 (replaces 4543062)
21	Parking brake lever	4646030
22	Switch	4247698
23	Screw	11900377 (replaces 7978356)
26	Nut	92150143 (replaces 7971922)
27	Screw	4345799
28	Suspension hook	4241212
29	Lock plug	4241238
30	Parking brake cable	4241311
31	Parking brake cable	4241329
31A	Parking brake cable	4839874 (replaces 4543104)
31A	Parking brake cable	4839874 (replaces 4648291)
31A	Parking brake cable	4839874
32	Equalizing pipe	90189710 (replaces 90189772)
33	Adjusting nut	90334821 (replaces 4241303)
34	Rubber ring	4241295
35	Return spring	12783879 (replaces 4241345)
36	Bellows	30550887 (replaces 4402434)
