Saab 900 1990-1993 Brake lines ABS rear

Group 5 Brakes, section 290

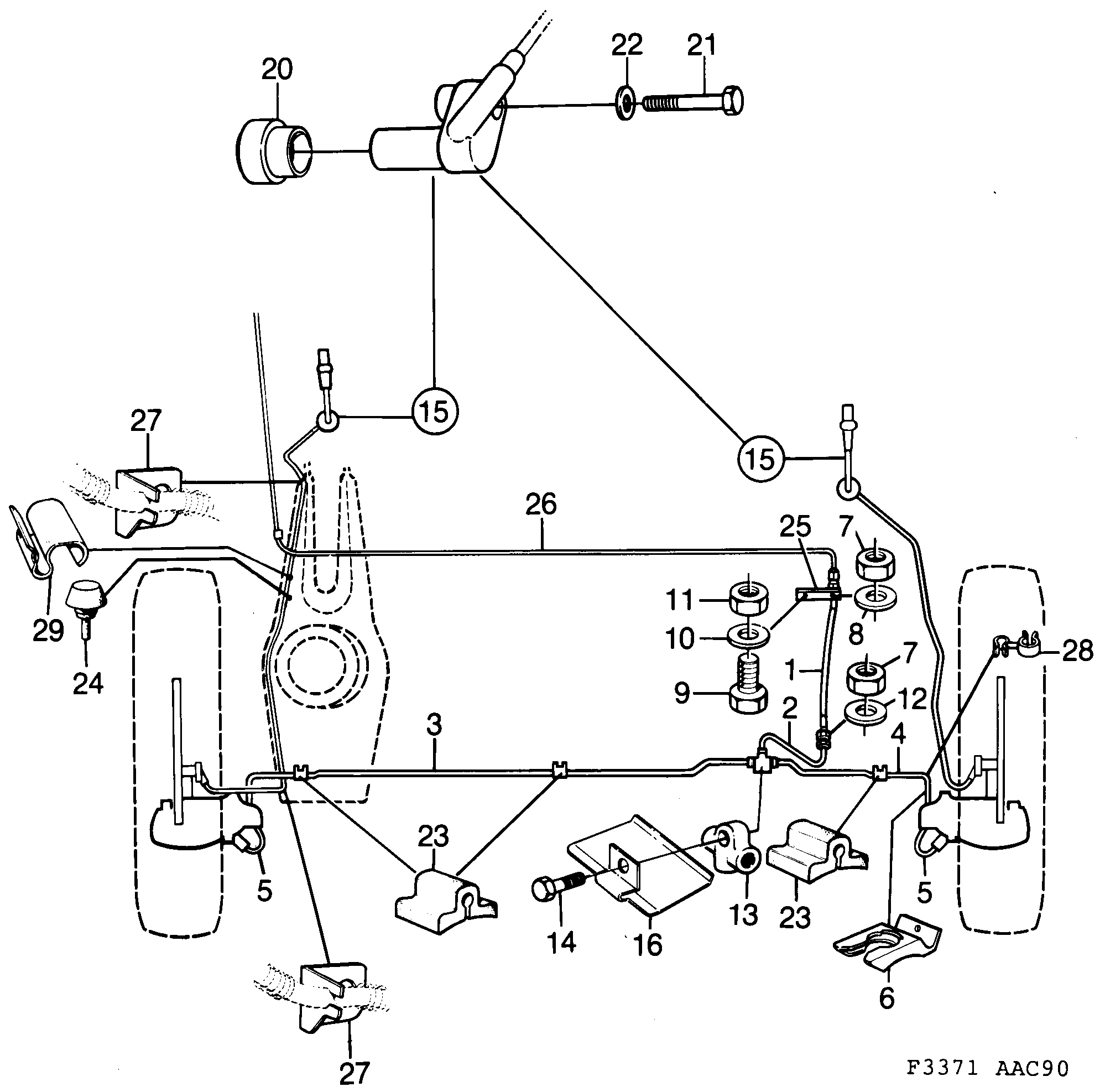

Saab 900 Brake lines ABS rear diagram

Pos	Article	Part No.
1	Brake hose	8931784
2	Brake pipe	9105354
3	Brake pipe	30520298 (replaces 9105032)
4	Brake pipe	9105016
5	Brake hose	9101650
6	Bracket	8952699
7	Nut	30509371 (replaces 7979511)
8	Washer	7933856
9	Screw	8082935
10	Washer	7311764
11	Nut	8074106
11	Lock nut	55557005 (replaces 7965767)
13	T-piece	8964686
14	Screw	55562873 (replaces 8082968)
14	Screw	9166331
15	Sensor	4001533
15	Sensor	4001541
16	Protecting plate	4106472
20	Sleeve	8963019
21	Screw	8021925
22	Washer	8029951
22	Washer	9166364
23	Spacer piece	8919490
24	Rubber plug	8944795
25	Lock plate	8991739
27	Bracket	9105305
27	Bracket	9105313
28	Clamp	7399660
29	Clamp	8931461
