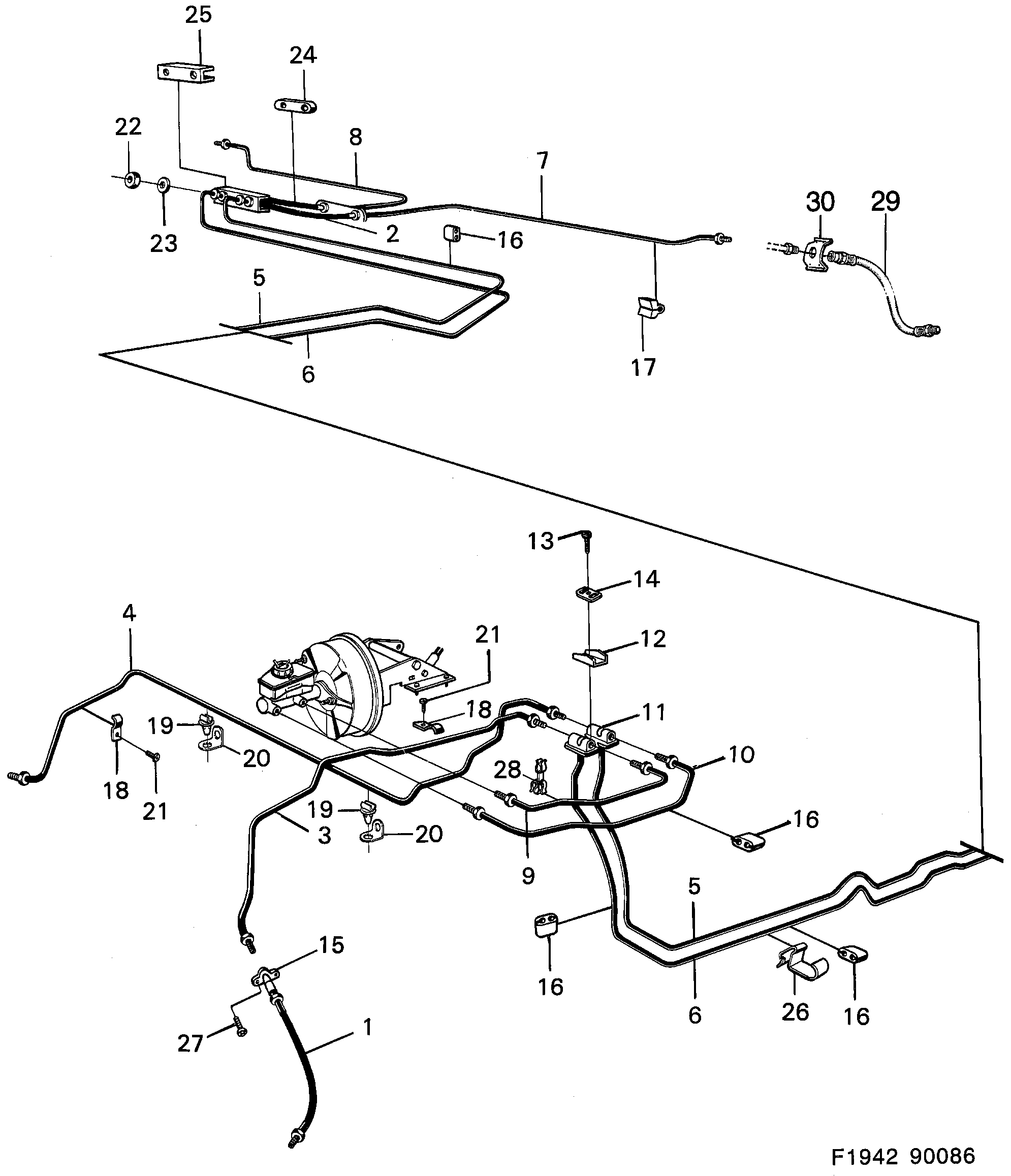

Group 5 Brakes, section 280
| Pos | Article | Part No. |
|---|---|---|
| 1 | Brake hose | 8940819 |
| 2 | Brake hose | 8931784 |
| 3 | Brake pipe | 8946014 |
| 4 | Brake pipe | 8987638 |
| 5 | Brake pipe | 8944308 |
| 5 | Brake pipe | 9101726 |
| 5 | Brake pipe | 9195132 |
| 5 | Brake pipe | 9195512 |
| 5 | Brake pipe | 9196049 |
| 6 | Brake pipe | 8944316 |
| 6 | Brake pipe | 9101734 |
| 6 | Brake pipe | 9195140 |
| 6 | Brake pipe | 9195520 |
| 6 | Brake pipe | 9196056 |
| 7 | Brake pipe | 8940744 |
| 7 | Brake pipe | 9101767 |
| 8 | Brake pipe | 8940751 |
| 8 | Brake pipe | 9101783 |
| 9 | Brake pipe | 8945933 |
| 9 | Brake pipe | 9102203 |
| 10 | Brake pipe | 8945974 |
| 10 | Brake pipe | 9102245 |
| 11 | Nipple | 8928947 |
| 12 | Stiffening plate | 8929671 |
| 13 | Screw | 8097859 |
| 14 | Seal | 8933335 |
| 15 | Nipple | 8928756 |
| 16 | Pipe bracket | 8908162 |
| 17 | Spacer piece | 8919490 |
| 18 | Tube clamp | 8907966 |
| 19 | Clamp | 8940132 |
| 21 | Screw | 7922891 |
| 22 | Nut | 30509371 (replaces 8315558) |
| 23 | Washer | 7933856 |
| 24 | Bracket | 8929259 |
| 25 | Lock plate | 8991739 |
| 26 | Clamp | 8931461 |
| 28 | Clamp | 8939670 |
| 29 | Brake hose | 9101650 |
| 30 | Bracket | 8952699 |
| 30 | Bracket | 8952699 (replaces 4104188) |
