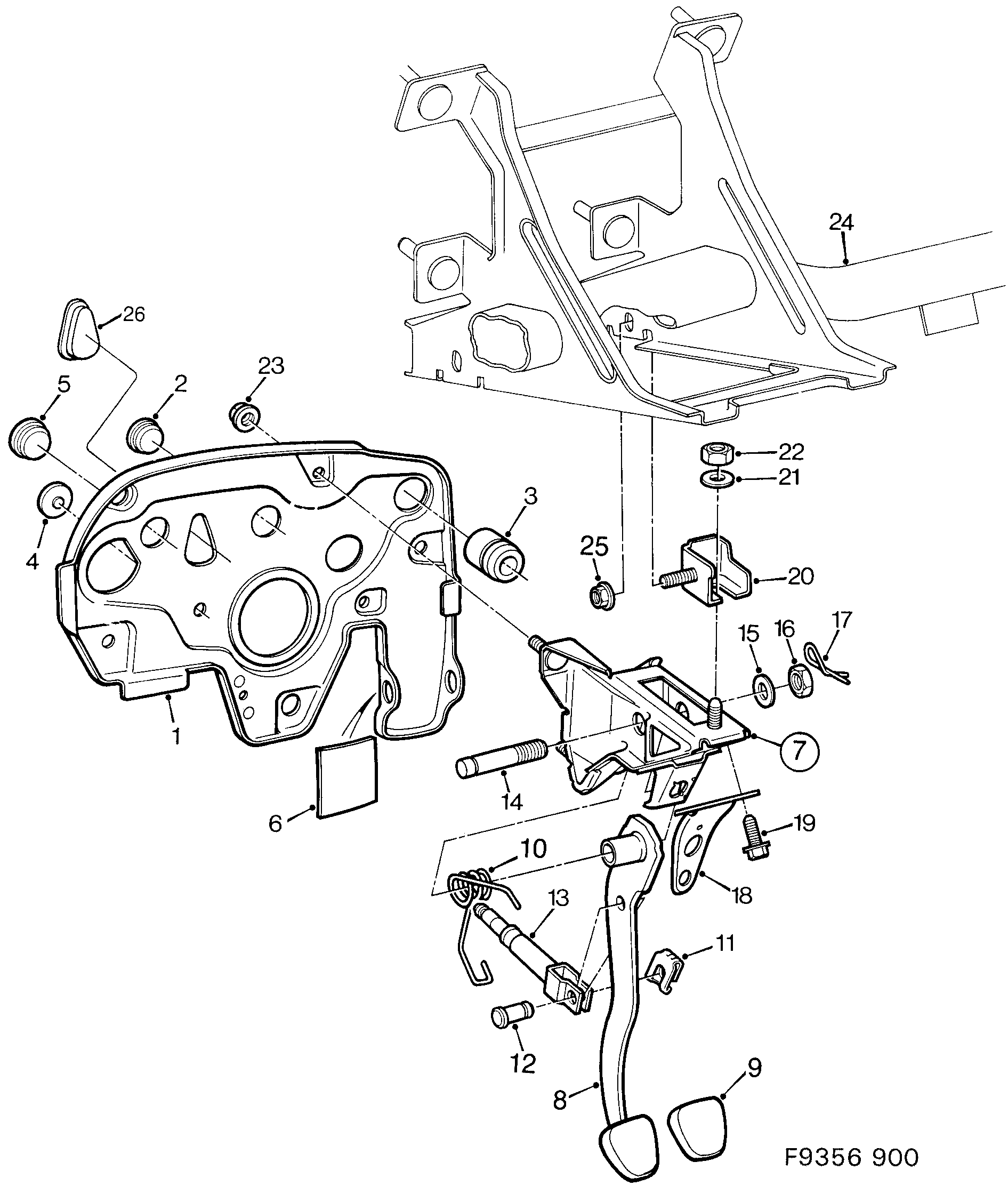

Group 5 Brakes, section 270
| Pos | Article | Part No. |
|---|---|---|
| 1 | Cowl plate | 4482097 |
| 1 | Cowl plate | 4647996 |
| 1 | Cowl plate | 4482089 |
| 2 | Plug | 8575599 |
| 3 | Seal | 90156374 (replaces 4245635) |
| 4 | Seal | 4345724 |
| 5 | Plug | 9268863 |
| 6 | Spacer plate | 4242087 |
| 7 | Bracket | 4398897 |
| 7 | Bracket | 4398939 |
| 7 | Bracket | 4398905 |
| 7 | Bracket | 5058805 (replaces 4398947) |
| 8 | Brake pedal | 90288481 (replaces 4244547) |
| 8 | Brake pedal | 90288482 (replaces 4244570) |
| 8 | Brake pedal | 90288483 |
| 8 | Brake pedal | 90538473 (replaces 4242020) |
| 9 | Pedal pad | 90105172 (replaces 4241832) |
| 9 | Pedal pad | 4688594 (replaces 4244612) |
| 10 | Return spring | 4242103 |
| 11 | Clip | 90278102 (replaces 4345443) |
| 12 | Pin | 90222680 (replaces 4345435) |
| 13 | Piston rod | 90468840 (replaces 4244620) |
| 13 | Piston rod | 90468840 (replaces 4482022) |
| 13 | Piston rod | 90468840 |
| 14 | Screw | 4241865 |
| 15 | Washer | 8073108 |
| 16 | Nut | 4345047 |
| 17 | Lock spring | 90373365 (replaces 4241881) |
| 18 | Bracket | 4246591 |
| 18 | Bracket | 4247003 |
| 19 | Screw | 7985138 |
| 20 | Pedal bracket | 90193008 (replaces 4212148) |
| 21 | Washer | 4345344 |
| 22 | Lock nut | 55557005 (replaces 7965767) |
| 23 | Nut | 90191908 (replaces 4345419) |
| 25 | Nut | 92150143 (replaces 7971922) |
| 26 | Rubber plug | 4838025 |
