Saab 900 1990-1993 Brake lines

Group 5 Brakes, section 230

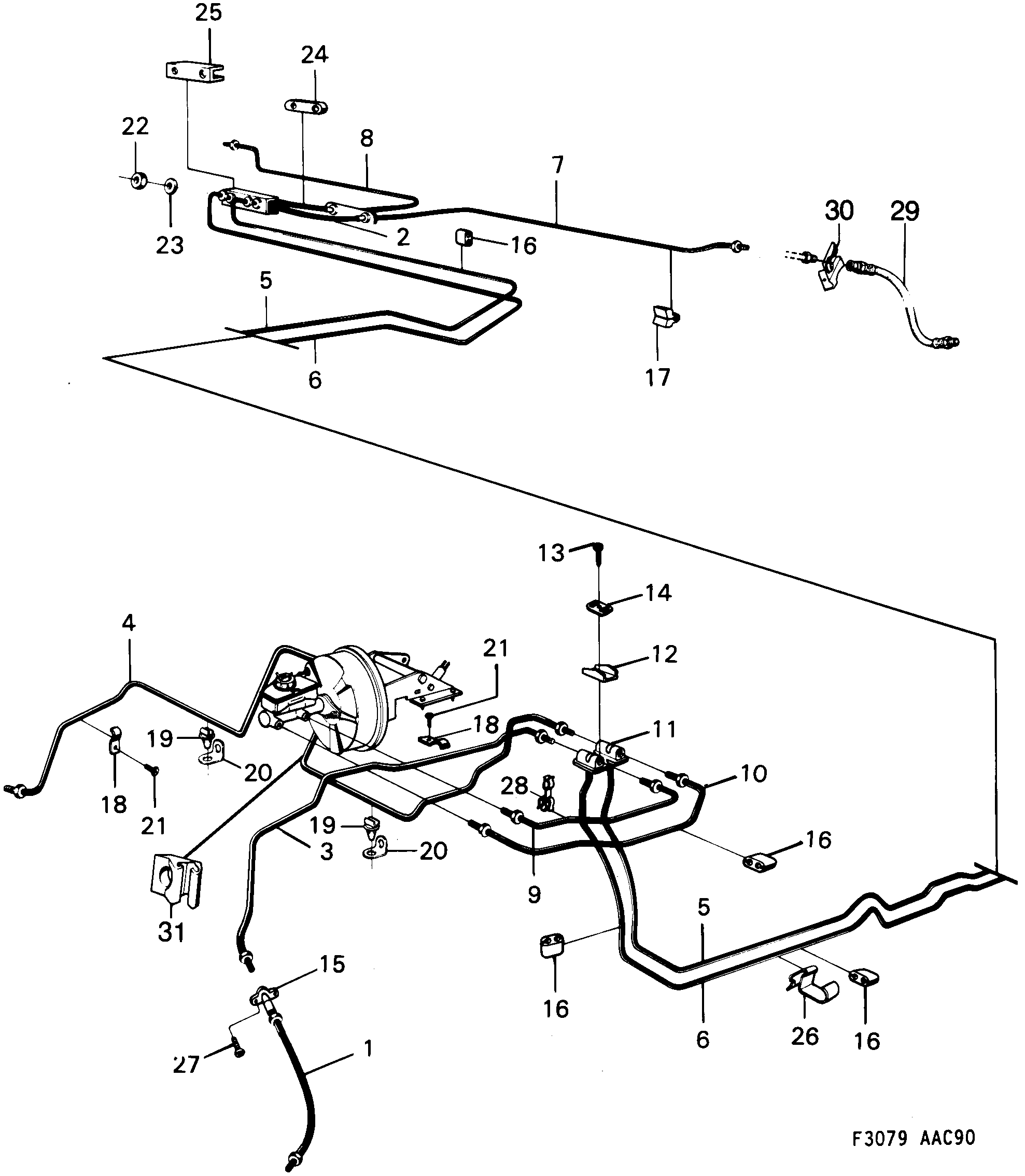

Saab 900 Brake lines diagram

Pos	Article	Part No.
1	Brake hose	8940819
2	Brake hose	8931784
3	Brake pipe	8946014
4	Brake pipe	4003992
5	Brake pipe	9101726
5	Brake pipe	9196049
5	Brake pipe	9196148
6	Brake pipe	9101734
6	Brake pipe	9196056
6	Brake pipe	9196130
7	Brake pipe	9101767
8	Brake pipe	9101783
9	Brake pipe	9102203
10	Brake pipe	9102245
11	Nipple	8928947
12	Stiffening plate	8929671
13	Screw	8097859
14	Seal	8933335
15	Nipple	8928756
16	Pipe bracket	8908162
17	Spacer piece	8919490
18	Tube clamp	8907966
19	Clamp	8940132
21	Screw	7922891
22	Nut	30509371 (replaces 8315558)
23	Washer	7933856
24	Bracket	8929259
25	Lock plate	8991739
26	Clamp	8931461
28	Clamp	8939670
29	Brake hose	9101650
30	Bracket	8952699
31	Tube clamp	8959538
