Saab 900 1986-1989 Master cylinder vacuum brake booster

Group 5 Brakes, section 220

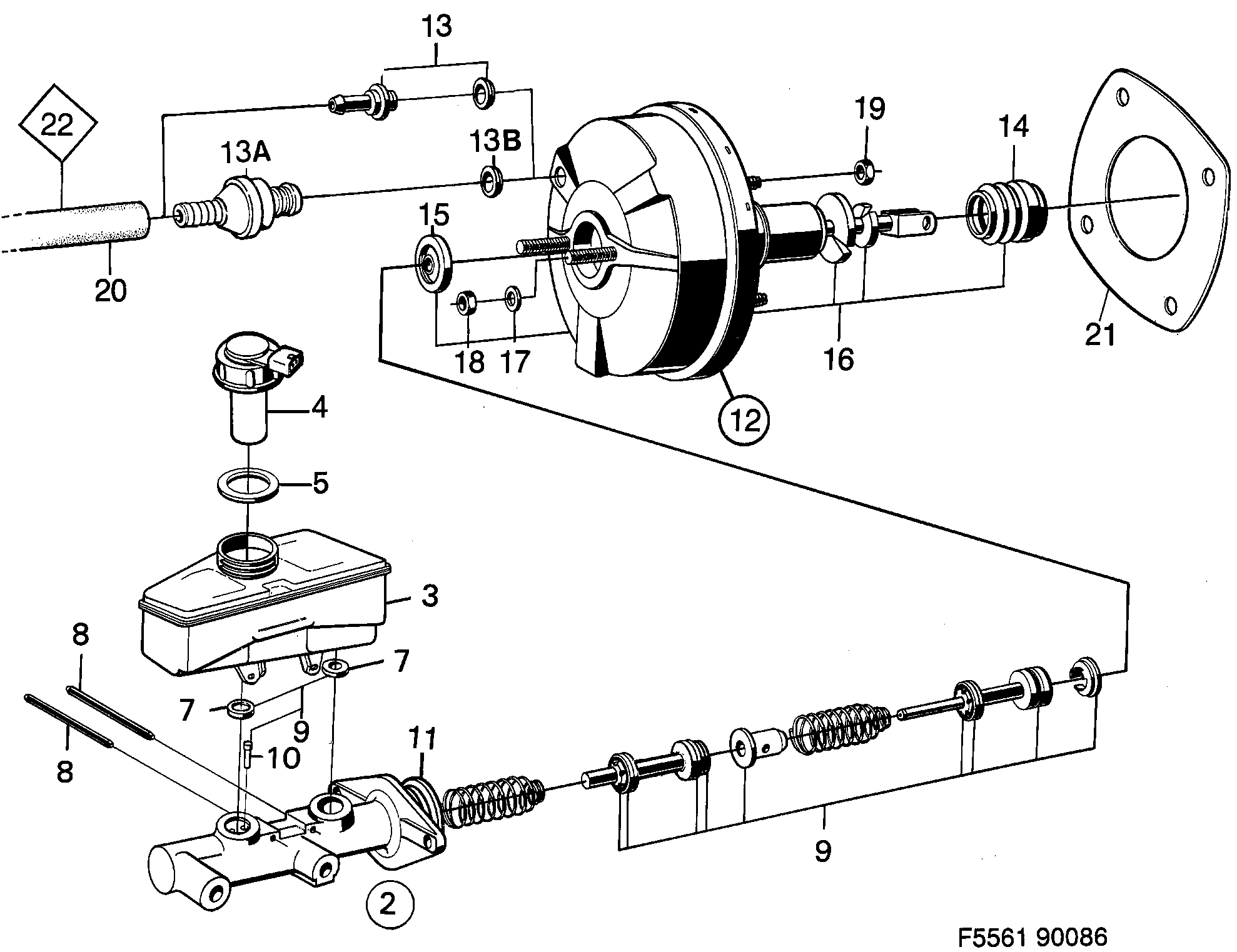

Saab 900 Master cylinder vacuum brake booster diagram

Pos	Article	Part No.
2	Master cylinder	9100652
2	Master cylinder	8993859 (replaces 9102575)
3	Reservoir	8935421
3	Reservoir	9102849
4	Level warner	9100595
4	Level warner	9102591
5	Seal	8936106
7	Gasket	8928426
7	Gasket	8986911
8	Attaching pin	8937831
9	Sealing kit	8994972
9	Sealing kit	8965329
10	Pin	8928434
10	Pin	8965808
11	O-ring	8947178
12	Vacuum servo	8942609
12	Vacuum servo	9102609
13	Check valve	8993115
13A	Check valve	8986705
13B	Seal	8986713
14	Bellows	8928541
15	Seal	8929010
16	Sealing kit	8910705
17	Washer	7910565
18	Nut	8073942
18	Nut	8151243 (replaces 8029779)
18	Nut	8151243
19	Nut	11900440 (replaces 8074288)
20	Vacuum hose	8939993
20	Vacuum hose	8942302
21	Seal	8958357
