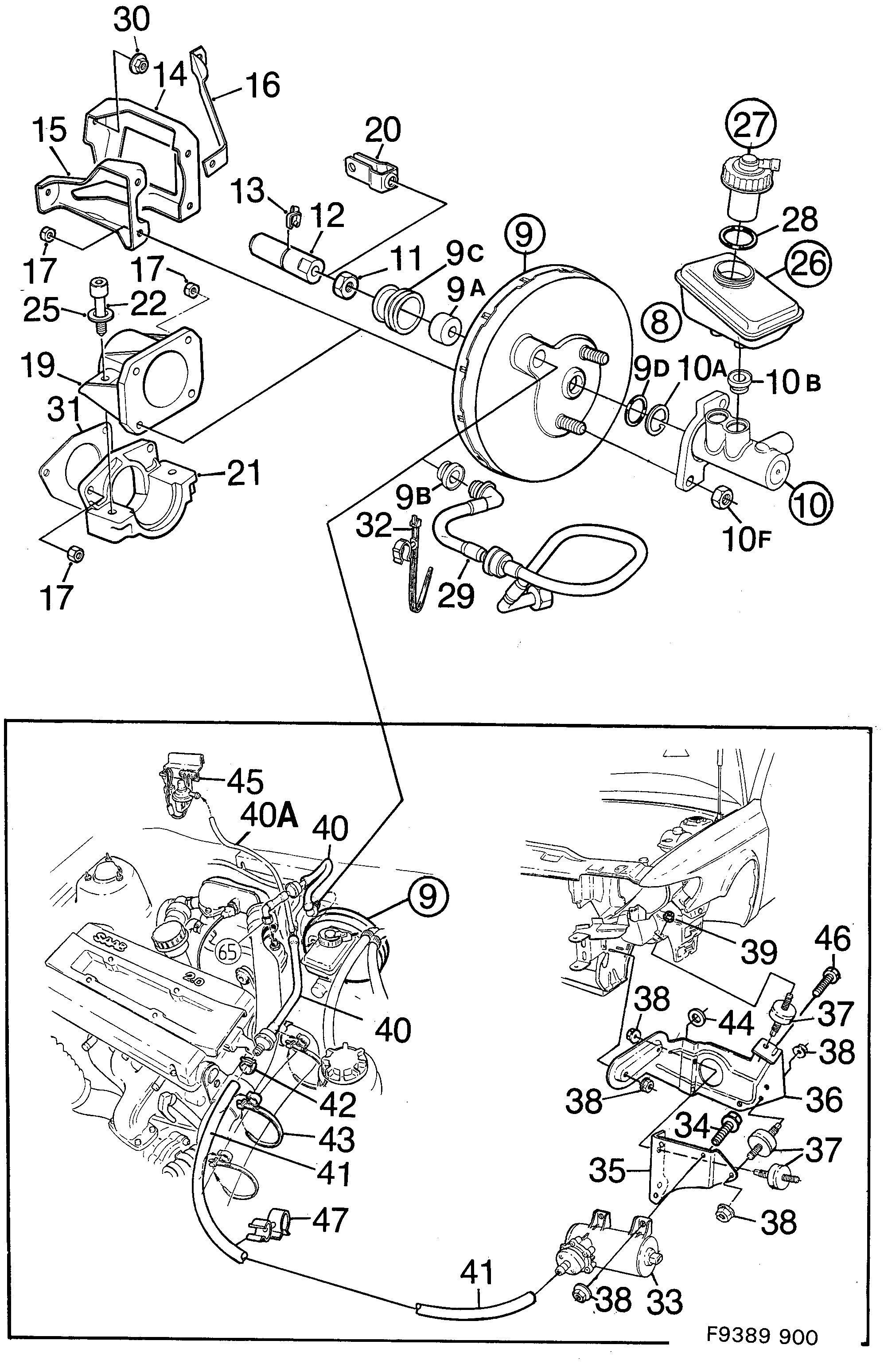

Group 5 Brakes, section 210
| Pos | Article | Part No. |
|---|---|---|
| 9 | Brake servo | 4543872 |
| 9 | Brake servo | 4544151 |
| 9A | Filter | 4543880 |
| 9B | Grommet | 5233739 (replaces 4543898) |
| 9C | Bellows | 4543906 |
| 9C | Bellows | 4544169 |
| 9D | Sealing ring | 2894223 (replaces 4543914) |
| 10 | Master cylinder | 4543930 |
| 10 | Master cylinder | 4543948 |
| 10A | Lock ring | 4543963 |
| 10B | Plug | 4198297 (replaces 4543971) |
| 10F | Lock nut | 4543922 |
| 11 | Hexagon nut | 4345120 |
| 12 | Adjusting nut | 4345575 |
| 12 | Adjusting nut | 90498145 (replaces 4567855) |
| 13 | Return spring | 90184913 (replaces 4244307) |
| 14 | Bracket | 90184911 (replaces 4242566) |
| 15 | Bracket | 4242574 |
| 16 | Cross support | 4242558 |
| 17 | Nut | 92150143 (replaces 7971922) |
| 19 | Bracket | 4245080 |
| 20 | Brace | 4245098 |
| 21 | Support | 4246450 |
| 22 | Screw | 4345898 |
| 25 | Sealing washer | 8929531 |
| 26 | Reservoir | 5232244 (replaces 4400396) |
| 26 | Reservoir | 5232244 (replaces 5056981) |
| 27 | Cover | 4904876 (replaces 4402160) |
| 28 | Sealing ring | 4543997 |
| 29 | Vacuum pipe | 4467189 |
| 29 | Vacuum pipe | 4467189 (replaces 4467213) |
| 29 | Vacuum pipe | 90375988 (replaces 4400115) |
| 29 | Vacuum pipe | 4467197 |
| 29 | Vacuum pipe | 4467197 (replaces 4467205) |
| 29 | Vacuum pipe | 4467668 |
| 31 | Insulation | 4426870 |
| 32 | Tie strap | 30507607 (replaces 7593221) |
| 33 | Vacuum pump | 4646220 |
| 34 | Screw | 7978133 |
| 35 | Bracket | 4646451 |
| 35 | Bracket | 4648663 |
| 36 | Support | 4904140 (replaces 4779104) |
| 37 | Rubber spacer | 9281374 (replaces 4235768) |
| 38 | Nut | 11900451 (replaces 7977929) |
| 40 | Vacuum pipe | 4646238 |
| 40 | Vacuum pipe | 4907671 (replaces 4907572) |
| 40 | Vacuum pipe | 4907671 |
| 40 | Vacuum pipe | 4646246 |
| 40 | Vacuum pipe | 4907689 (replaces 4907580) |
| 40 | Vacuum pipe | 4907689 |
| 40 | Vacuum pipe | 4837258 |
| 40A | Vaccum hose | 9136243 |
| 41 | Vaccum hose | 4646923 |
| 42 | Hose clamp | 7974009 |
| 44 | Seal | 4345724 |
| 46 | Screw | 11900354 (replaces 7978109) |
| 47 | Clamp | 7398373 |
