Saab 900 1990-1993 Hydraulic unit ABS

Group 5 Brakes, section 200

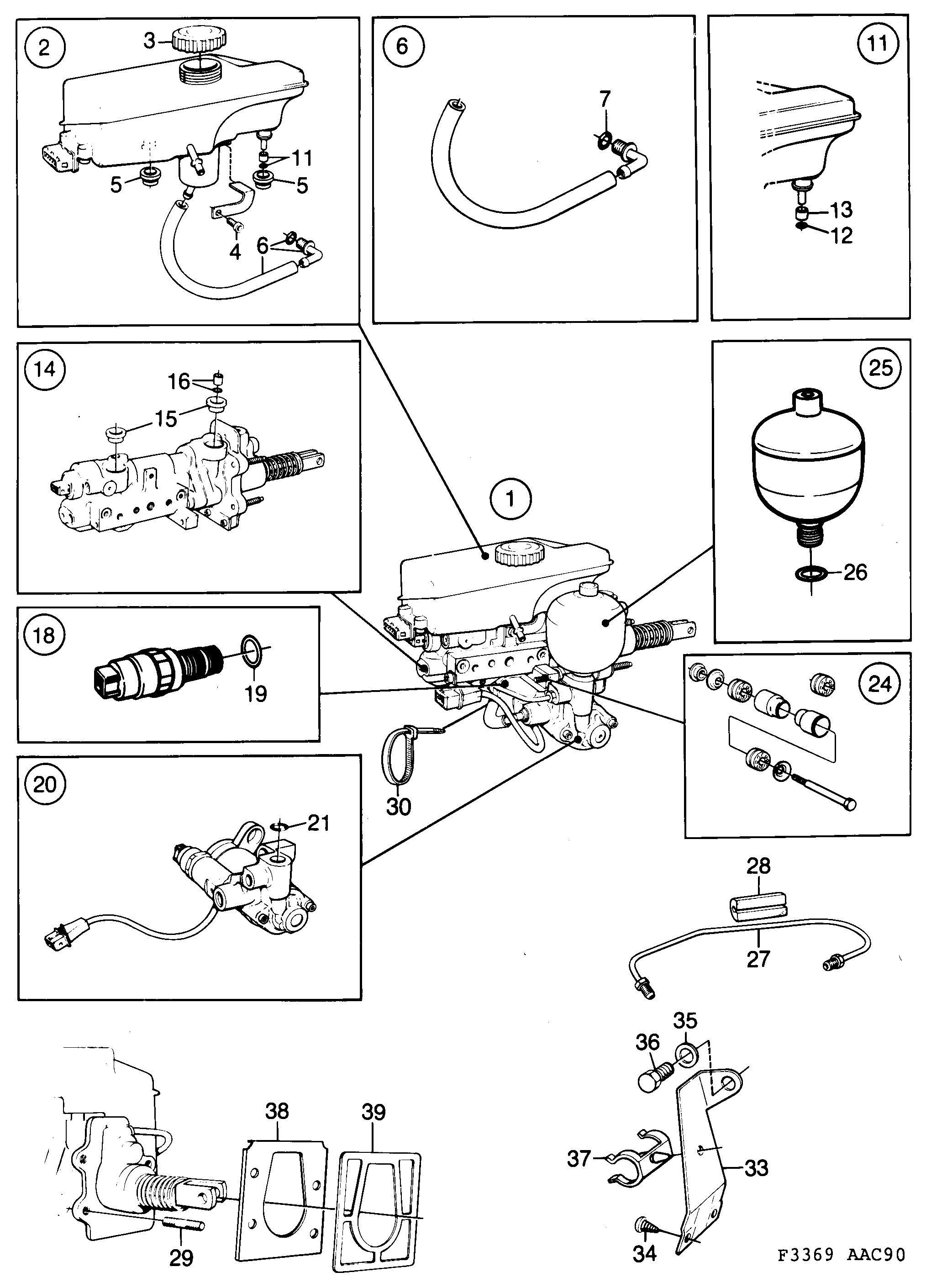

Saab 900 Hydraulic unit ABS diagram

Pos	Article	Part No.
1	Hydraulic unit	9104407
2	Reservoir	4000279
3	Cover	8966152
3	Cover	4107819
3	Cover	4425690
4	Screw	8966368
5	Rubber bushing	4482568 (replaces 8966335)
6	Hose kit	4002861
7	O-ring	4003117
11	O-ring kit	8967390
12	O-ring	8966681
13	Sleeve	8966939
14	Master cylinder kit	4002879
18	Pressure monitor	8967309
19	O-ring	8967325
20	Pump kit	4002887
21	O-ring	8967234
24	Suspension kit	4002895
25	Accumulator	4002267
27	Delivery pipe	9104837
28	Absorber	4002093
29	Stud	9104795
30	Tie strap	11900513 (replaces 7971880)
33	Brace	9105123
34	Screw	7922891
35	Washer	92153033 (replaces 8029985)
35	Washer	32000432 (replaces 9166372)
36	Screw	8082935 (replaces 8082919)
36	Screw	8082935
37	Bracket	9105297
38	Cover plate	9105701
39	Seal	9105719
