Saab 900 1994-1998 Hydraulic unit ABS

Group 5 Brakes, section 180

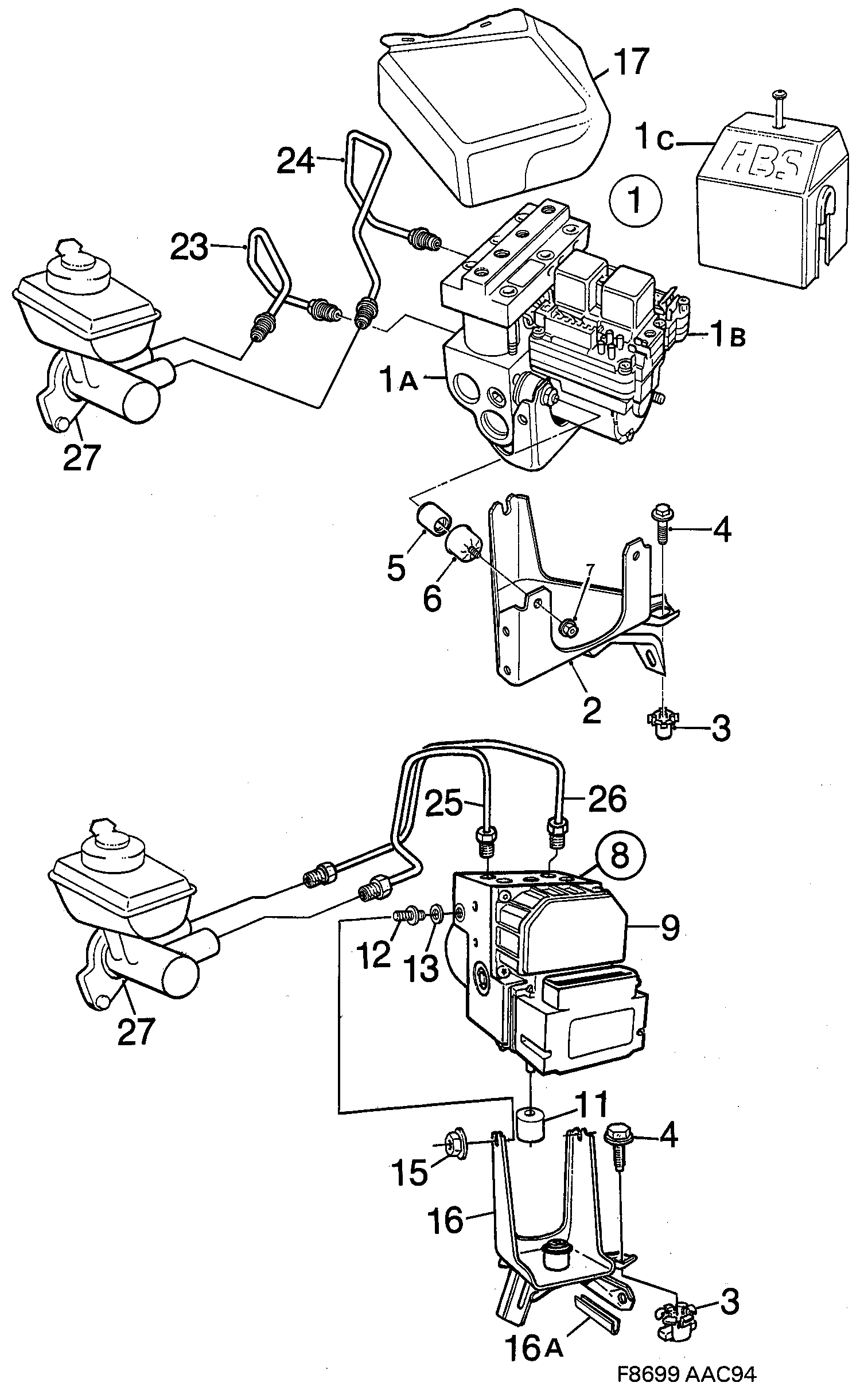

Saab 900 Hydraulic unit ABS diagram

Pos	Article	Part No.
1	Hydraulic unit	4243358
1A	Hydraulic unit	4543849
1B	Electronic unit	4778544
1C	Cover	4543856
2	Bracket	4398186
3	Cage nut	5125398 (replaces 4243432)
4	Screw	55566034 (replaces 7978190)
5	Sleeve	4243382
6	Absorber	4243374
7	Nut	11900451 (replaces 7977929)
8	Hydraulic unit	4646642
8	Hydraulic unit	4835583
8	Hydraulic unit	5390091 (replaces 4779500)
9	Electronic unit	4778981
9	Electronic unit	4835609
9	Electronic unit	4779526
11	Support sleeve	4646675
12	Support pin	4646683
13	Absorber	4646691
15	Hexagon nut	11900452 (replaces 7977952)
16	Bracket	4426581
16	Bracket	4907697
16A	Edge protection moulding	4867917 (replaces 4175295)
17	Cover	4648523
23	Brake pipe	4398095
24	Brake pipe	4467353
23	Brake pipe	4467387
23	Brake pipe	4467395
24	Brake pipe	4467361
25	Brake pipe	4426649
26	Brake pipe	4426631
25	Brake pipe	4426664
25	Brake pipe	4426672
25	Brake pipe	4838090
26	Brake pipe	4426656
26	Brake pipe	4838082
