Saab 900 1990-1993 Master cylinder vacuum brake booster

Group 5 Brakes, section 170

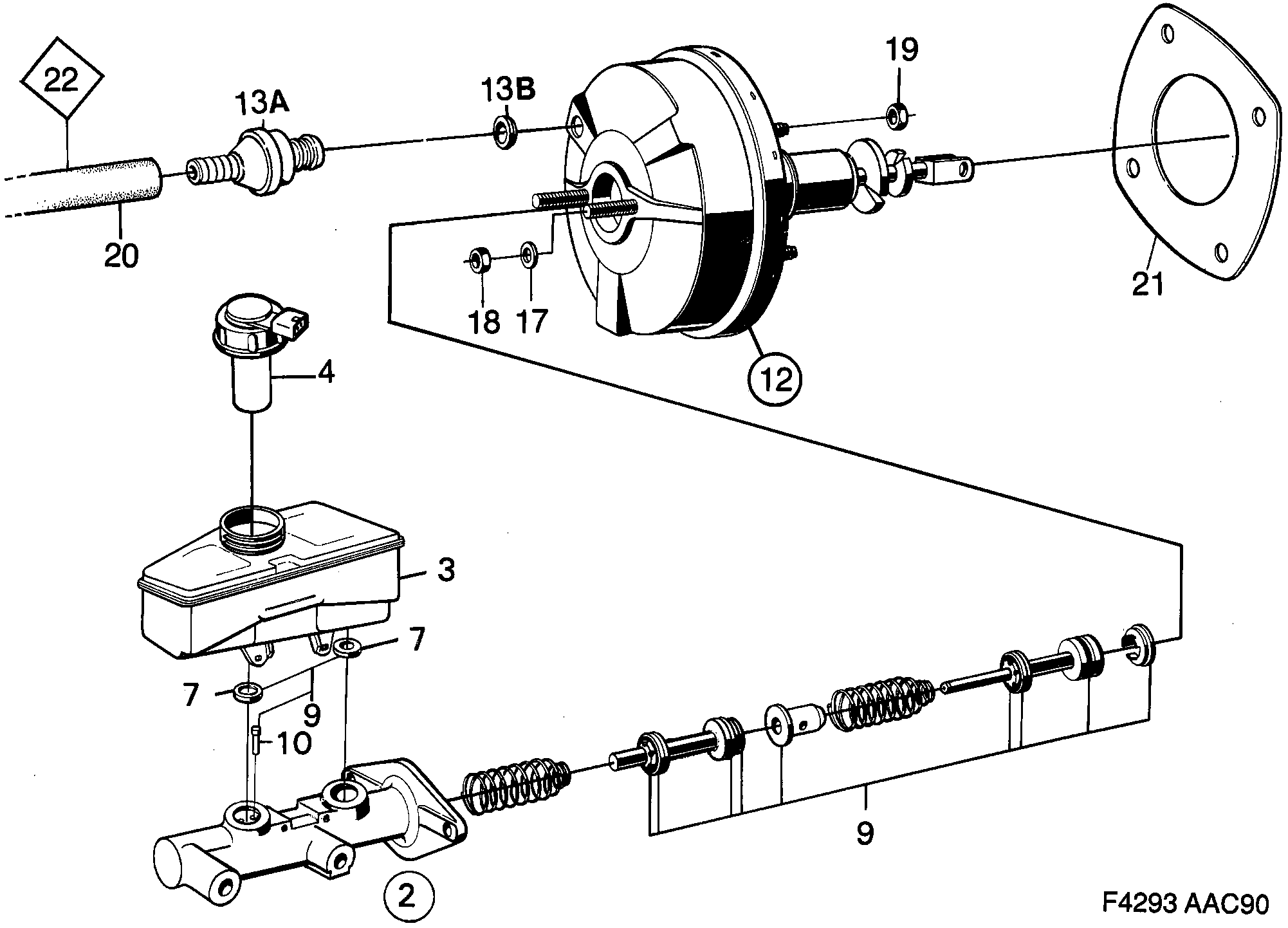

Saab 900 Master cylinder vacuum brake booster diagram
PosArticlePart No.
2Master cylinder8993859 (replaces 9102575)
3Reservoir9102849
4Level warner9102591
7Gasket8986911
7Gasket4425229
9Sealing kit8965329
10Pin8965808
12Vacuum servo9102609
13ACheck valve8986705
13BSeal8986713
17Washer7910565
18Nut8151243
19Nut11900440 (replaces 8074288)
20Vacuum hose8939993
21Seal8958357
