Saab 900 1986-1987 Rear wheel brake

Group 5 Brakes, section 160

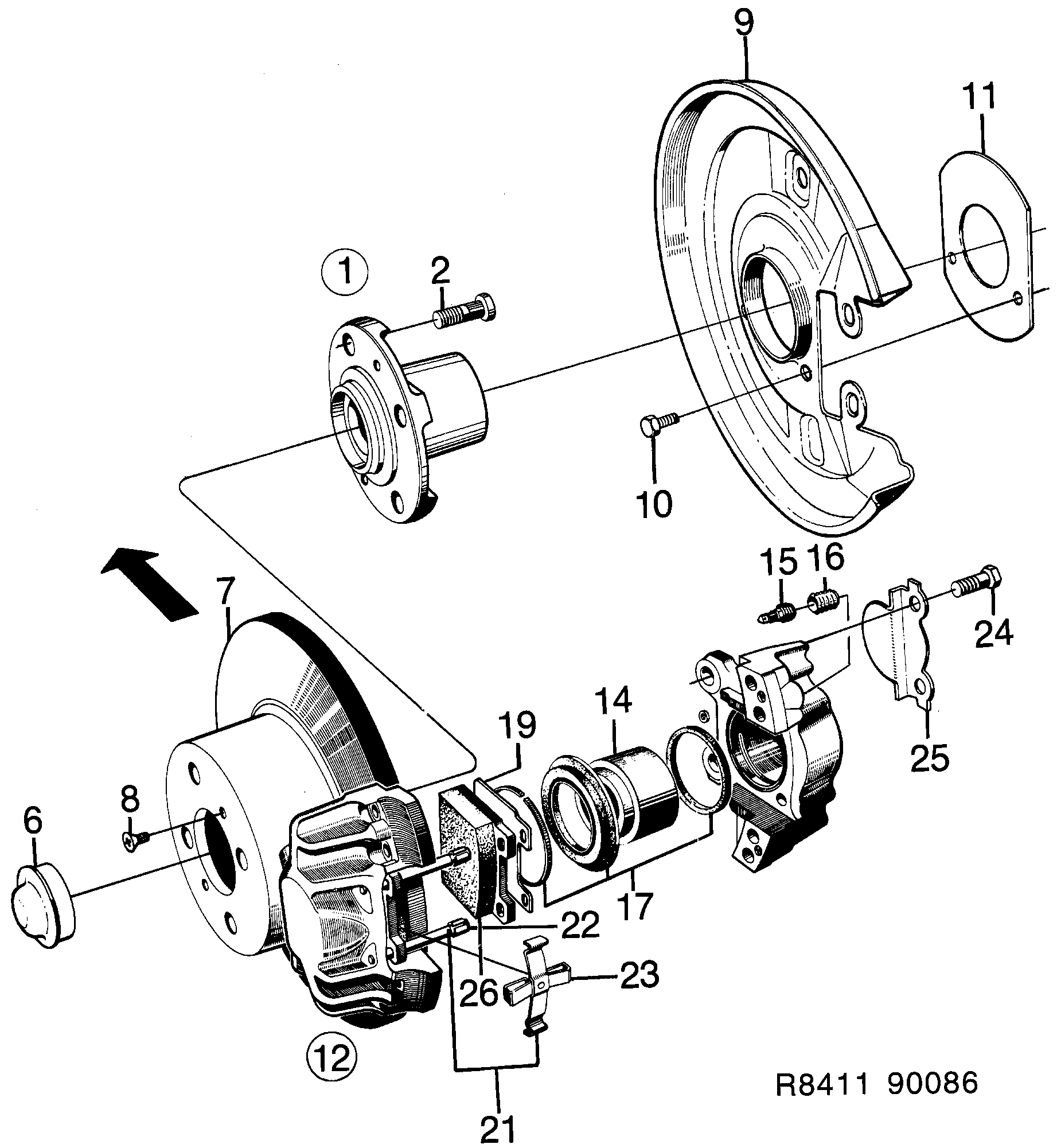

Saab 900 Rear wheel brake diagram

Pos	Article	Part No.
1	Wheel hub	8947384
2	Wheel screw	8907941
6	Cap	8935975
7	Brake disc	8904575
8	Screw	8055998
9	Protecting plate	8934739
9	Protecting plate	8934747
10	Screw	8019887
11	Guide ring	8934838
12	Brake housing	8985277
12	Brake housing	8985285
12	Brake housing	9102765
12	Brake housing	9102773
14	Piston	8932238
15	Air screw	8908568
16	Protecting casing	8908576
17	Gasket kit	8994840
19	Turn stop	8911737
19	Turn stop	8911745
21	Mounting kit	7874530
22	Lock pin	8908766
23	Brace	8908543
24	Screw	8924755
25	Lock plate	8934770
26	Brake pad kit	8993230
