Saab 900 1988-1989 Front wheel brake

Group 5 Brakes, section 130

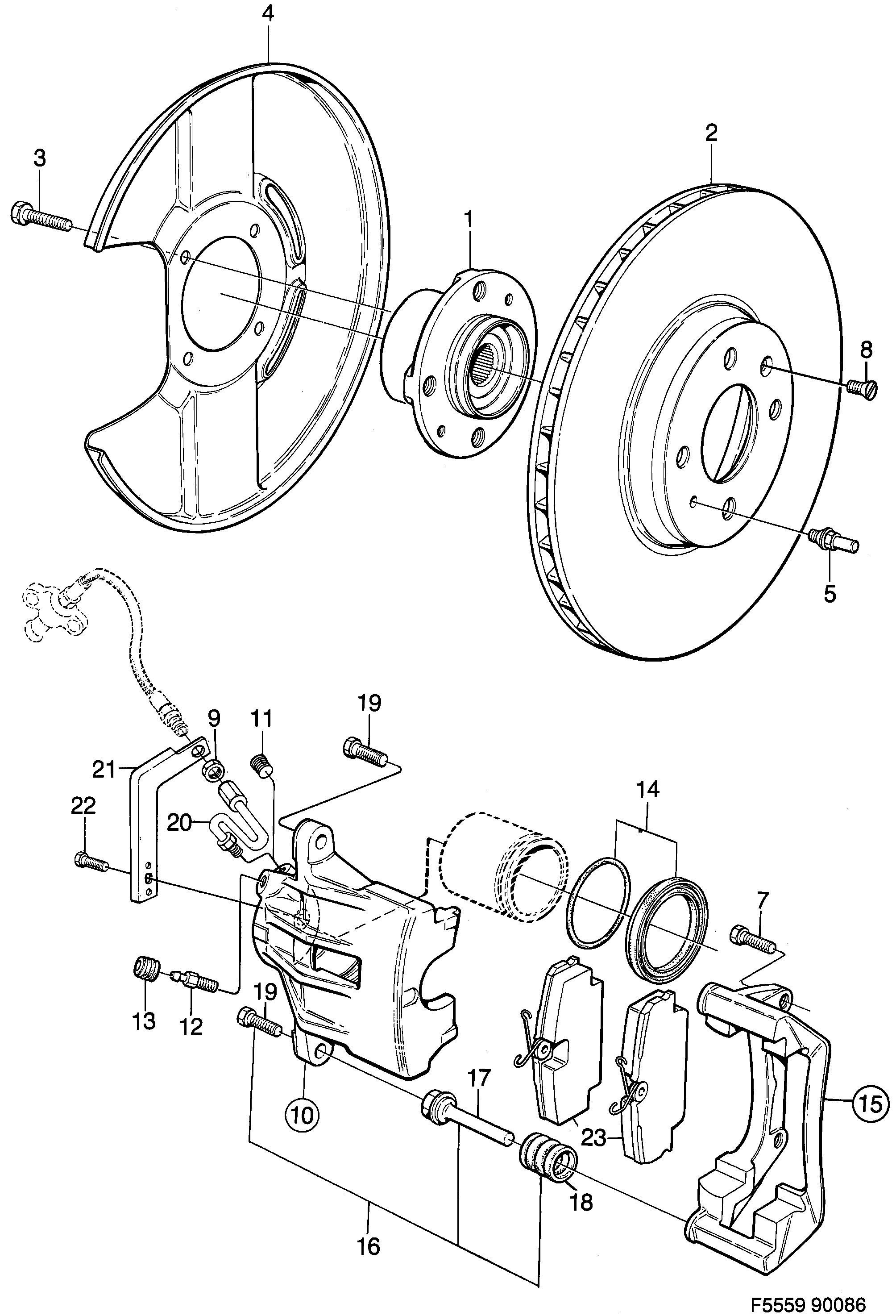

Saab 900 Front wheel brake diagram

Pos	Article	Part No.
1	Wheel hub	9104159
2	Brake disc	4002150 (replaces 8970709)
2	Brake disc	4002150
3	Screw	7978794 (replaces 8083180)
3	Screw	7978794
4	Protecting plate	9100884
5	Pin	8968588
7	Screw	8953283
8	Screw	8056160
9	Nut	30509371 (replaces 7979511)
10	Brake housing	9102971
10	Brake housing	9102989
11	Plug	8955973
12	Bleed screw	8955072
13	Protecting casing	8955080
14	Gasket kit	8961799
15	Retainer	8967713
16	Bellows kit	8961807
17	Slide pin	8961807 (replaces 8955114)
18	Protecting casing	8955130
19	Screw	8955122
20	Brake pipe	9102997
20	Brake pipe	9103037
21	Bracket	9102856
21	Bracket	9102864
22	Screw	7972441
23	Brake pad kit	8993974
