Saab 900 1994-1998 Front wheel brake

Group 5 Brakes, section 120

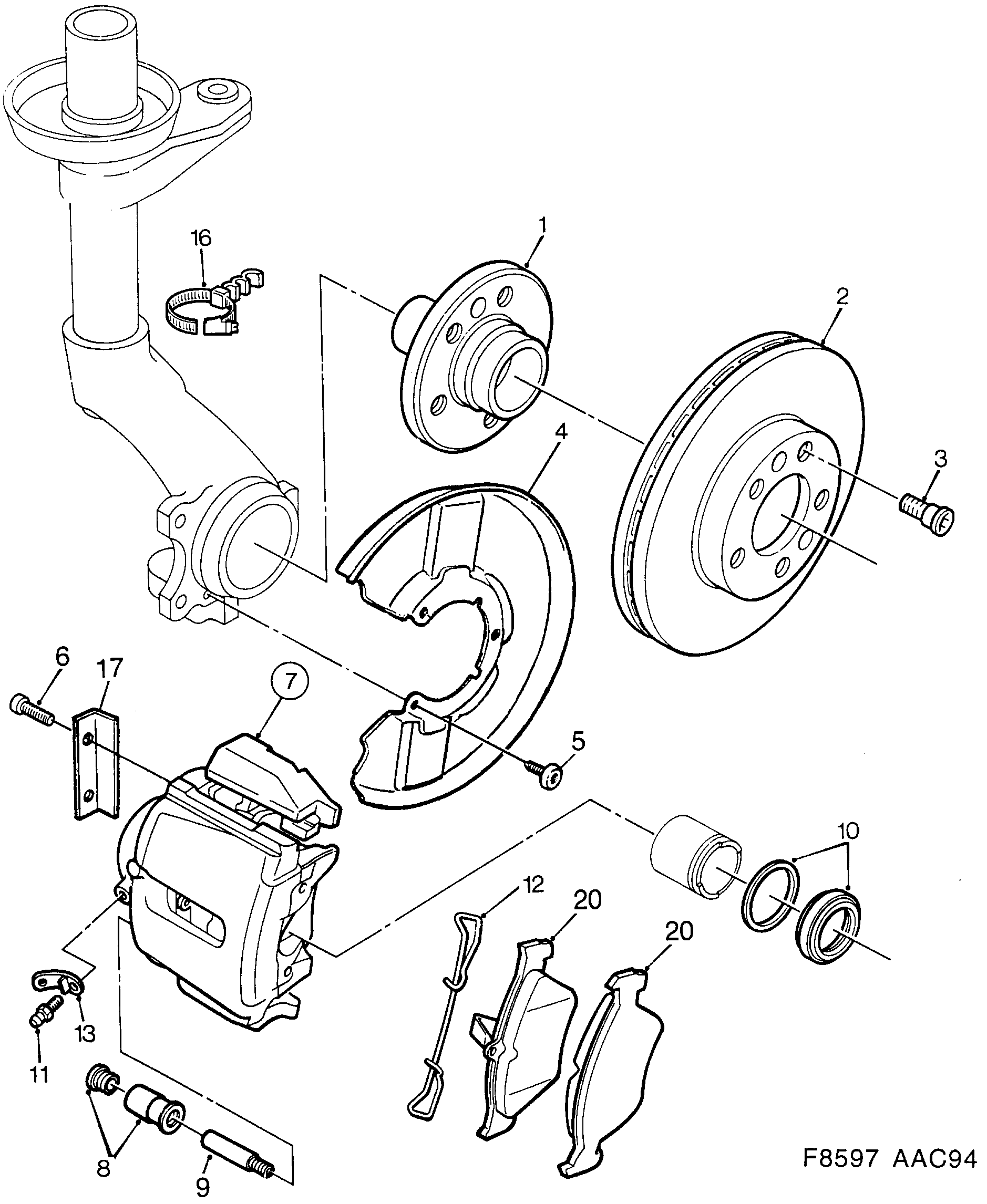

Saab 900 Front wheel brake diagram

Pos	Article	Part No.
1	Wheel hub	90496444 (replaces 4242194)
1	Wheel hub	90496444 (replaces 4568192)
2	Brake disc	4241428
2	Brake disc	32025723 (replaces 4839007)
2	Brake disc kit	32025723 (replaces 4839320)
3	Screw	90278945 (replaces 4249751)
4	Protecting plate	4545422
4	Backing plate	5056726 (replaces 4567731)
5	Screw	8059537
6	Screw	4940904 (replaces 4241451)
6	Screw	4940904 (replaces 4647194)
7	Brake housing	4482550
7	Brake housing	4838967
7	Brake housing	4482543
7	Brake housing	4838975
8	Guide	4467064
9	Slide pin	90297771 (replaces 8969651)
10	Gasket kit	4467056
10	Gasket kit	4778262
11	Bleed screw	4467007
12	Spring	4244422
13	Protecting casing	4467015
17	Protecting plate	4545471
20	Brake pad kit	4646899
20	Brake pad kit	4646899 (replaces 4648457)
20	Brake pad kit	5062203
20	Brake pad kit	5062203 (replaces 5232350)
