Saab 900 1986-1987 Front wheel brake

Group 5 Brakes, section 100

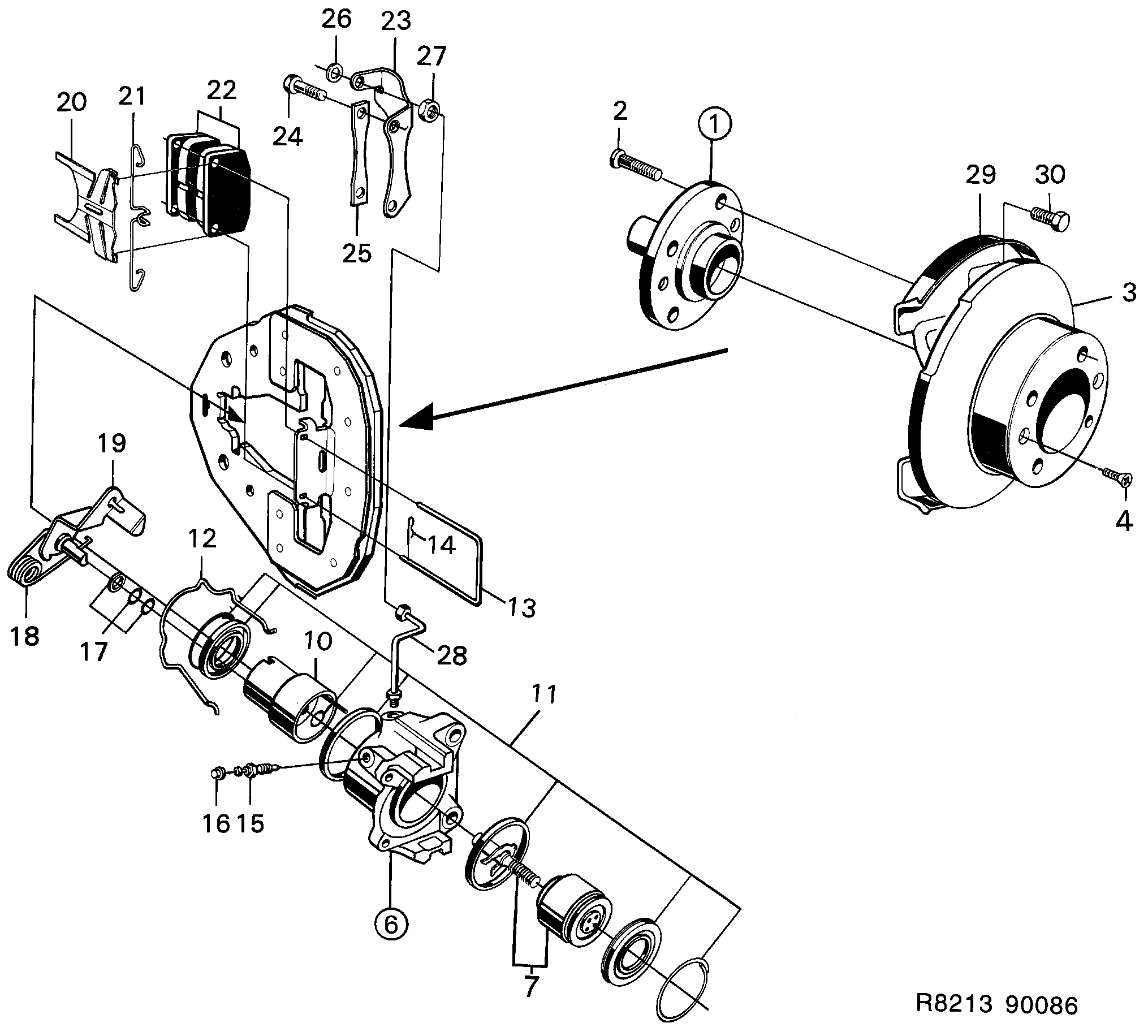

Saab 900 Front wheel brake diagram

Pos	Article	Part No.
1	Wheel hub	8942773
1	Wheel hub	9103607
1	Wheel hub	8990525
1	Wheel hub	9103623
2	Wheel screw	8907941
3	Brake disc	32000298 (replaces 8941981)
3	Brake disc	8988602
4	Screw	8055998
6	Brake housing	8985871
6	Brake housing	7895204 (replaces 8985889)
6	Brake housing	9102807
6	Brake housing	9102815
6	Brake housing	8990566
6	Brake housing	8990624
6	Brake housing	9103458
6	Brake housing	9103466
7	Piston kit	9103474
10	Brake piston	8931933
10	Brake piston	8931941
11	Gasket kit	8993255
12	Spring	8941965
13	U-pin	8990194
13	U-pin	9100108
14	Lock needle	8925067
15	Bleed screw	8925034
16	Protecting casing	8925042
17	Sealing kit	8993727
18	Return spring	8925372
18	Return spring	8925380
19	Lever	8925414
19	Lever	8925422
20	Damping plate	8930448
21	Damping spring	9103995
22	Brake pad kit	8993834
22	Brake pad kit	4906632
23	Bracket	8926214
23	Bracket	8926222
24	Screw	8926198
25	Lock plate	8938110
26	Washer	7933856 (replaces 7968480)
27	Nut	30509371 (replaces 8315558)
28	Brake pipe	8926230
28	Brake pipe	8926248
29	Protecting plate	8990517
30	Screw	8019887
	Mounting kit	7874548
