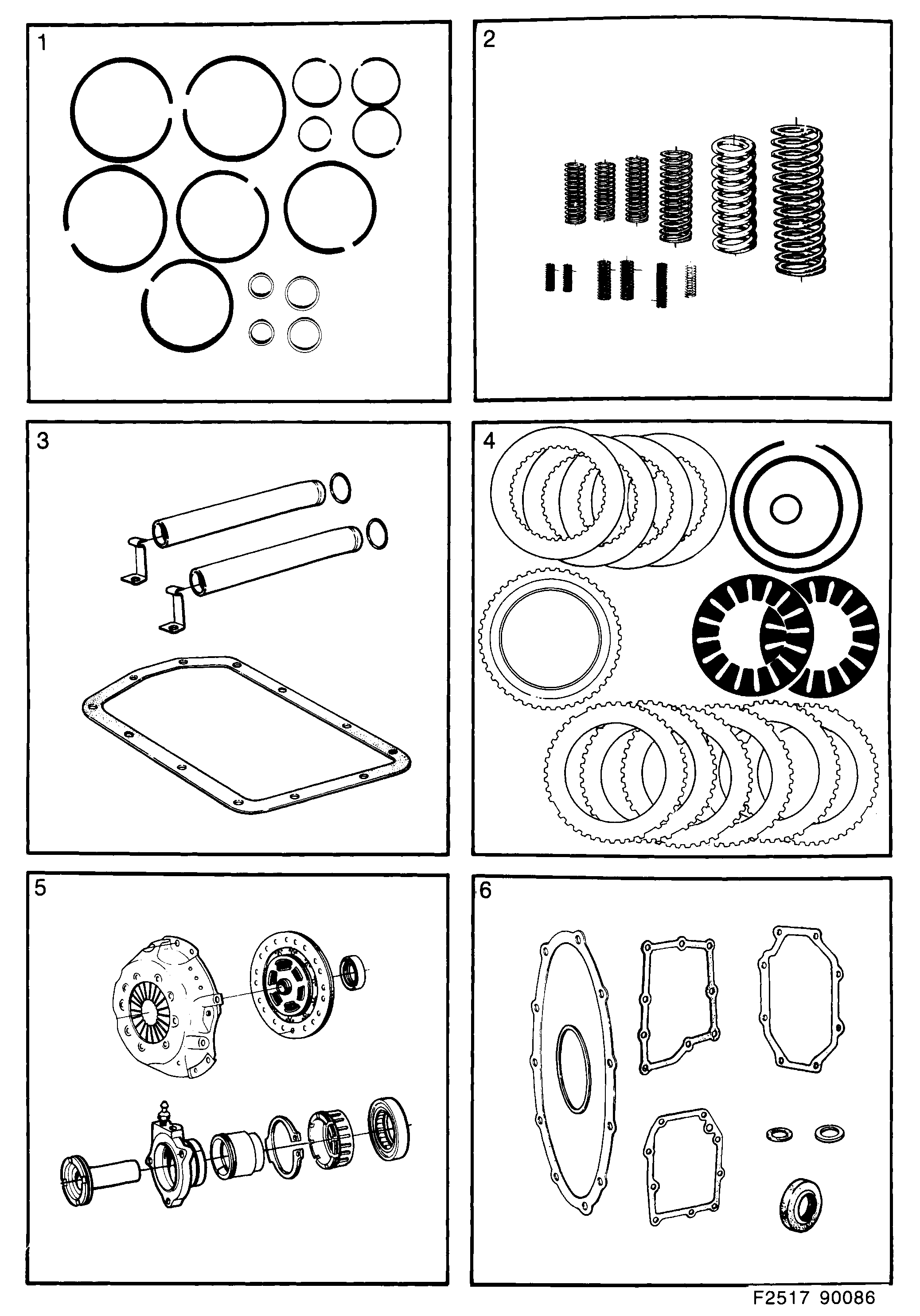

Group 4 Transmission, section 880
| Pos | Article | Part No. |
|---|---|---|
| 1 | Oil ring set | 9365172 |
| 2 | Spring kit | 7542681 |
| 2 | Spring kit | 7542699 |
| 3 | Pipe set | 7511470 |
| 4 | Disc kit | 7543051 |
| 5 | Clutch kit | 8781346 |
| Seal | 8710881 | |
| Release bearing | 8721995 | |
| Slave cylinder | 4776308 (replaces 8722209) | |
| Clutch disc | 8725517 | |
| Pressure plate | 8728123 | |
| 5 | Clutch kit | 8818148 |
| Clutch disc | 8722324 | |
| 6 | Gasket kit | 7496003 |
| O-ring | 8109647 | |
| Seal | 8730764 (replaces 8344335) | |
| Sealing collar | 8731804 | |
| O-ring | 8711707 | |
| Gasket | 8713216 | |
| Gasket | 8717415 | |
| Gasket | 8718439 | |
| Seal | 8724874 | |
| Gasket | 8732380 (replaces 8725012) | |
| Gasket | 8732398 (replaces 8725020) | |
| O-ring | 8728156 | |
| Gasket | 8728651 | |
| Gasket | 8728677 | |
| Washer | 9361627 |
