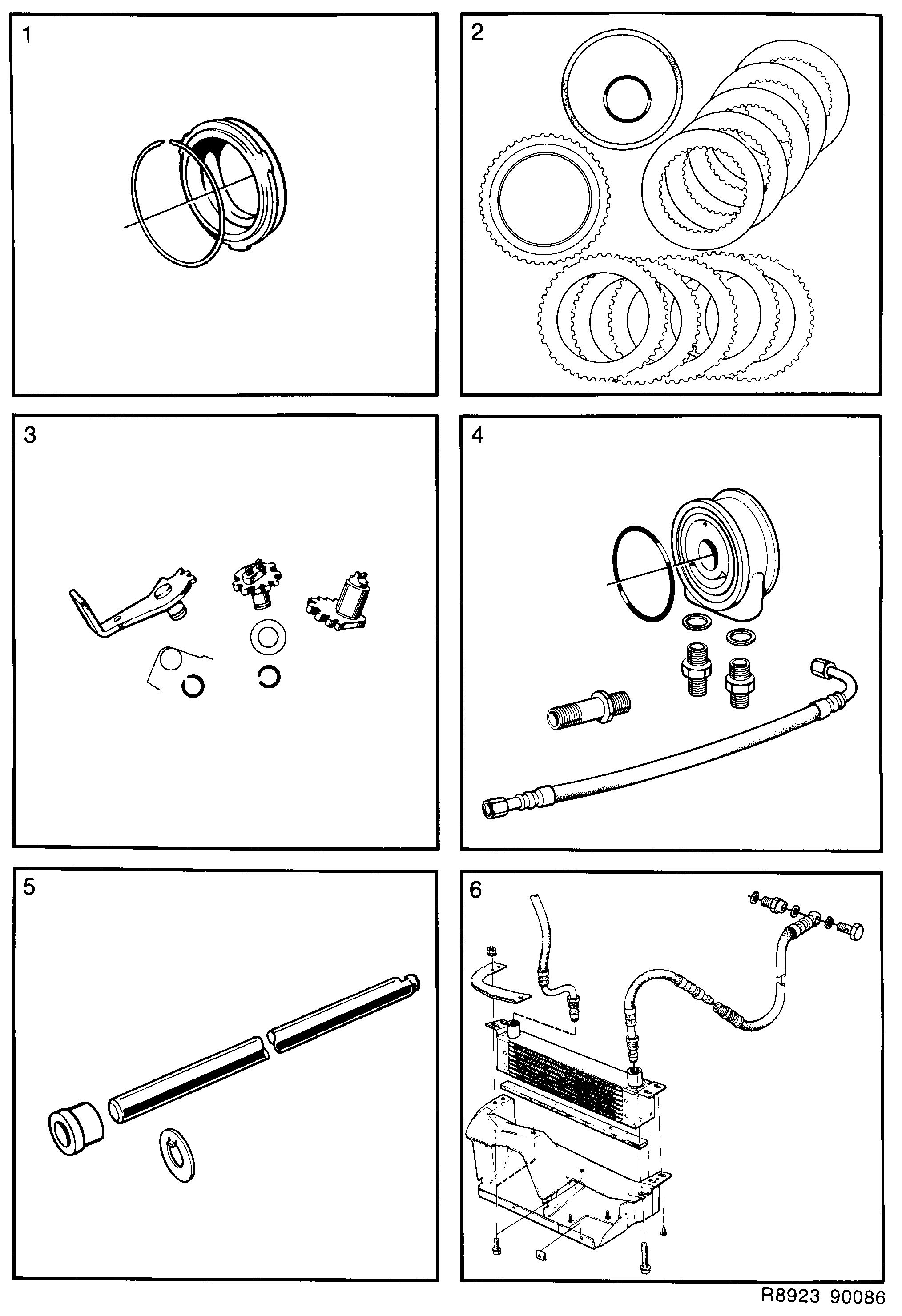

Group 4 Transmission, section 820
| Pos | Article | Part No. |
|---|---|---|
| 1 | Freewheel | 9345984 |
| Freewheel race | 8705162 | |
| Locking wire | 8705170 | |
| 2 | Disc kit | 9344110 |
| Clutch disc | 9344078 | |
| Clutch disc | 8706624 | |
| Clutch disc | 8706632 | |
| Clutch disc | 9323361 | |
| Clutch disc | 8324139 | |
| Seal | 8706616 | |
| O-ring | 8706129 | |
| Washer | 9319153 | |
| 2 | Disc kit | 9335472 |
| 3 | Gear | 9320987 |
| Gear | 8325797 | |
| Drive gear | 9330440 | |
| Lock tab | 7548910 | |
| Pin | 9342734 | |
| Pin | 8378275 | |
| Spring | 8375974 | |
| Lock ring | 7951353 | |
| 3 | Gear | 9337445 |
| Lock tab | 9347758 | |
| 4 | Conversion kit | 9320268 |
| Hydraulic hose | 9301425 | |
| Seal | 8314395 | |
| Nipple | 9303678 | |
| O-ring | 7967912 | |
| Adapter | 8314445 | |
| Screw | 8314452 | |
| 5 | Intermediate shaft | 9321241 |
| Shaft | 8711509 | |
| Thrust washer | 8711327 | |
| Thrust washer | 8712325 | |
| 5 | Intermediate shaft | 9337437 |
| Shaft | 8712630 | |
| Thrust washer | 8718645 | |
| Thrust washer | 8712887 | |
| 5 | Intermediate shaft | 9321266 |
| 6 | Oil cooler | 7540297 |
| Oil cooler | 7540289 | |
| Protecting casing | 7541899 | |
| Stiffening bar | 7540313 | |
| Hydraulic hose | 7543655 | |
| Oil hose | 7540172 | |
| Hydraulic hose | 7543663 | |
| Banjo screw | 12773569 (replaces 9301532) | |
| Seal | 4161162 (replaces 8981961) | |
| Screw | 7922891 | |
| Screw | 7974694 | |
| Nut | 11900428 (replaces 7971658) | |
| Screw | 7974447 | |
| Tie strap | 11900513 (replaces 7971880) | |
| Nipple | 7540032 | |
| Seal | 7546955 | |
| Hose | 9324591 | |
| Clip | 7541428 | |
| Tube | 9481110 | |
| Nut | 7975220 | |
| Bracket | 9344524 | |
| Hose clamp | 7970106 | |
| Frame | 9291139 | |
| Screw | 7977036 | |
| Clip nut | 7968555 | |
| Assembly instruction | 8817447 |
