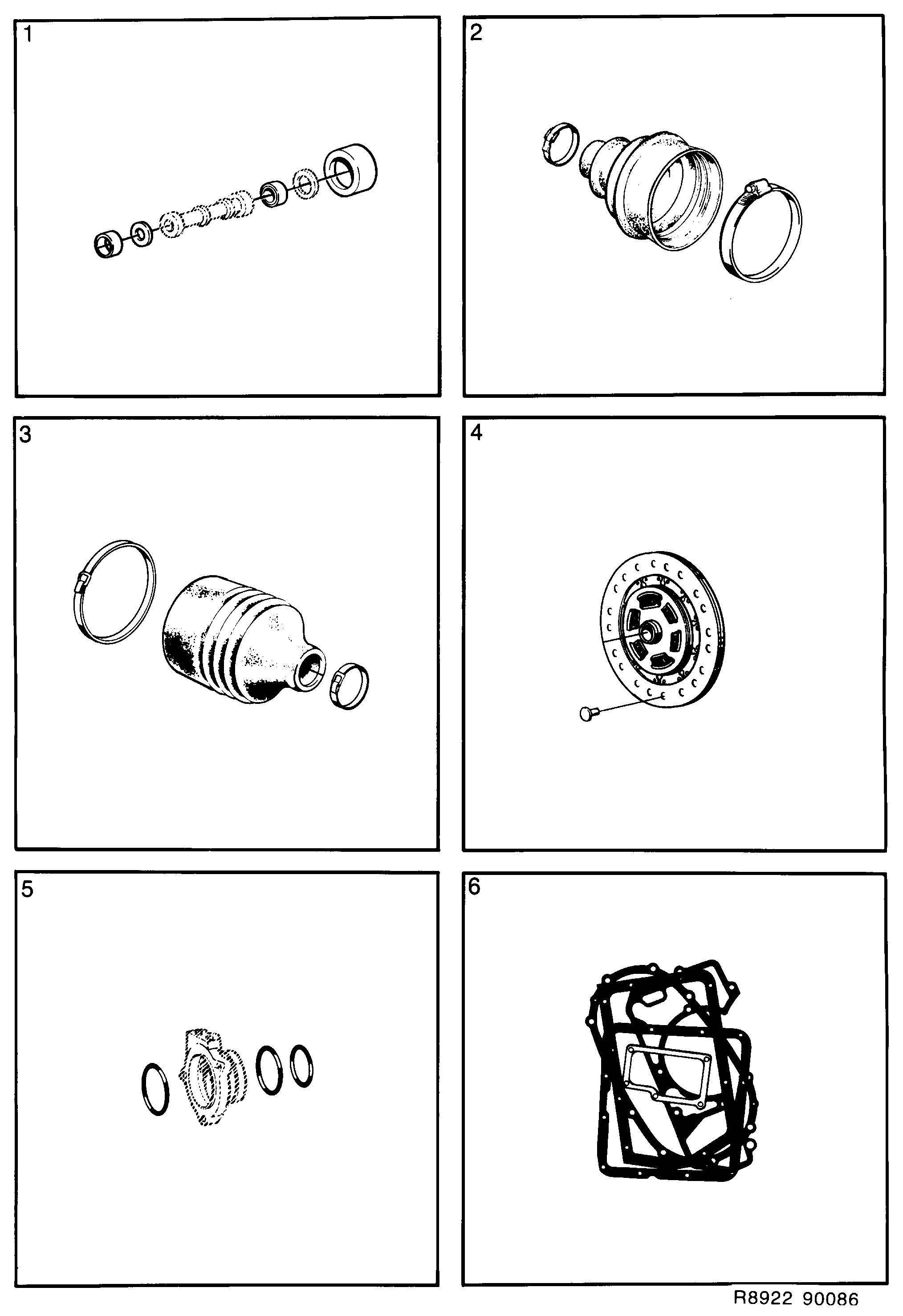

Group 4 Transmission, section 790
| Pos | Article | Part No. |
|---|---|---|
| 1 | Repair kit | 8993156 |
| Gasket | 8903304 | |
| Gasket | 8945248 | |
| Washer | 7313182 | |
| Washer | 8945255 | |
| Gasket | 8940769 | |
| Seal | 7313240 | |
| 2 | Bellows kit | 8993073 |
| Bellows | 8941270 | |
| Hose clamp | 92150224 (replaces 7970163) | |
| Banding iron | 7048465 | |
| Clamp | 7048473 | |
| 2 | Bellows kit | 8993636 (replaces 8961872) |
| Bellows | 8955007 | |
| Banding iron | 30503497 (replaces 7167117) | |
| 3 | Rubber bellows kit | 8993792 |
| Bellows | 4199873 | |
| Clamp | 4195822 | |
| Clamp | 4000667 | |
| 3 | Bellows kit | 8993628 (replaces 8961864) |
| Bellows | 4002747 (replaces 8953135) | |
| 3 | Bellows kit | 8993628 |
| Bellows | 4002747 | |
| 4 | Clutch facing | 8380214 |
| Clutch facing | 8307688 | |
| Rivet | 8300469 | |
| 5 | Sealing kit | 8781072 |
| O-ring | 8711806 | |
| Seal | 8722118 | |
| Seal | 8722126 | |
| 6 | Gasket kit | 9335563 |
| Gasket | 9334780 | |
| Seal | 9335407 | |
| Seal | 9335423 | |
| Gasket | 9335456 | |
| Washer | 4118527 (replaces 8708398) |
