Saab 900 1994-1998 Transmission

Group 4 Transmission, section 720

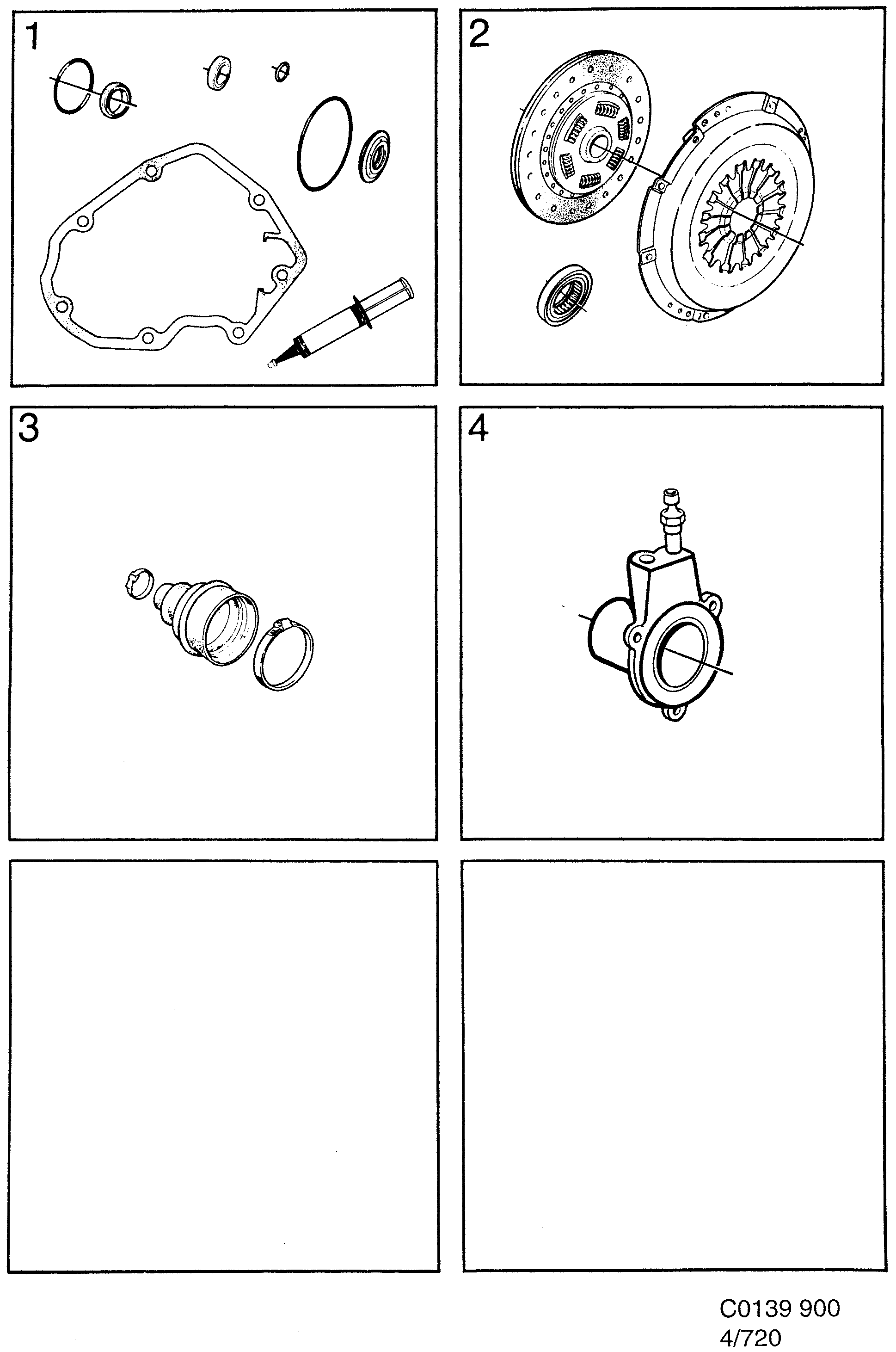

Saab 900 Transmission diagram

Pos	Article	Part No.
1	Gasket kit	8781494
	Gasket	12755014 (replaces 4940169)
	O-ring	90486232 (replaces 8047144)
	O-ring	4903787 (replaces 8729600)
	Seal	55353153 (replaces 8732117)
	Gasket	90486235 (replaces 8734824)
	Seal	8734980
	Seal	90511282 (replaces 8734998)
	Flange sealant	90297970
2	Clutch kit	8781536
	Thrust bearing	90278884
	Pressure plate	8736456
	Clutch disc	8736555
2	Clutch kit	8781528
	Pressure plate	8736423
	Clutch disc	8744070 (replaces 8736415)
2	Clutch kit	4614004
	Pressure plate	8746778
	Clutch disc	5174958 (replaces 8746802)
2	Clutch kit	4614012
	Clutch disc	5174966 (replaces 5162300)
	Pressure plate	5337589 (replaces 8746497)
2	Clutch kit	8781544
	Release bearing	8738072
	Pressure plate	8736548
2	Clutch kit	8781866 (replaces 8781577)
	Release bearing	90278884 (replaces 8732232)
	Pressure plate	8735797
	Clutch disc	8741225
2	Clutch kit	8781866
	Pressure plate	8744724
	Clutch disc	8744732
3	Bellows kit	8994147
	Bellows	8955007
	Clamp	4242475
	Clamp	30519720 (replaces 8972986)
4	Slave cylinder	4904751
	Adhesive	4904090
	Slave cylinder	4926028
